Installation failed - Bootloader installation error

Hello guys,
I'm unable to finish installation, I'm always getting popup window

Error
Installation Failed

Bootloader installation error
Details:

The bootloader could not be installed.
The installation command

grub-install --target=x86_64-efi --efi-directory=/boot/efi -- bootloader-id=Garuda --force
returned error code 1.

Disk is primary and empty.

I tried to follow steps as per here.:

But I get stuck at this part
sh-5.1# parted -l | grep -iE "^Disk /|esp" | grep -B1 esp

Warning: Unable to open /dev/sr0 read-write (Read-only file system). /dev/sr0
has been opened read-only.
Error: The partition's data region doesn't occupy the entire partition.

And this task just keep hanging.

Reason I'm using this distro is that it includes a set of programs that works together (Goverlay+Mangohud+VKBasalt). No other distros have it pre-installed.
Over few days I tried many distros but only this distro fails at installation end.

Any help is welcome!

PS.: I'm running OS in UEFI/Secure boot disabled (set in BIOS).
PS.: I'm installing Garuda Linux via Ventoy utility and tried to boot under normal boot or GRUB2 boot, makes no difference.

Is it a Macbook?

Please run garuda-inxi from the live environment and paste into the thread.

1 Like

God, please not Macbook :smiley:

[email protected]
-------------------------------
OS: Garuda Linux x86_64
Host: MS-7C91 2.0 - (which is MSI TOMAHAWK B550)
Kernel: 6.2.13-zen-1-zen
Uptime: 1 min

Packages: 1821 (pacman)[stable]
Shell: fish 3.6.1
Terminal: konsole 23.4.0

CPU: AMD Ryzen 7 5800X3D (16) @ 4.548828 GHz
GPU: AMD Radeon RX 6800 XT
Memory: 2.43 GiB / 31.18 GiB (7%)

Here is requested information

System:
Kernel: 6.2.13-zen-1-zen arch: x86_64 bits: 64 compiler: gcc v: 12.2.1
parameters: BOOT_IMAGE=/boot/vmlinuz-x86_64 lang=en_US keytable=us tz=UTC
misobasedir=garuda root=miso:LABEL=GARUDA_DR460NIZEDGAMING_RAPTOR quiet
systemd.show_status=1 ibt=off driver=free nouveau.modeset=1
i915.modeset=1 radeon.modeset=1 rdinit=/vtoy/vtoy
Desktop: KDE Plasma v: 5.27.4 tk: Qt v: 5.15.9 wm: kwin_x11 dm: SDDM
Distro: Garuda Linux base: Arch Linux
Machine:
Type: Desktop Mobo: Micro-Star model: MAG B550 TOMAHAWK (MS-7C91) v: 2.0
serial: N/A UEFI: American Megatrends LLC. v: A.C0 date: 03/06/2023
CPU:
Info: model: AMD Ryzen 7 5800X3D socket: AM4 bits: 64 type: MT MCP
arch: Zen 3+ gen: 4 level: v3 note: check built: 2022 process: TSMC n6 (7nm)
family: 0x19 (25) model-id: 0x21 (33) stepping: 2 microcode: 0xA20120A
Topology: cpus: 1x cores: 8 tpc: 2 threads: 16 smt: enabled cache:
L1: 512 KiB desc: d-8x32 KiB; i-8x32 KiB L2: 4 MiB desc: 8x512 KiB
L3: 96 MiB desc: 1x96 MiB
Speed (MHz): avg: 3400 min/max: 2200/4549 boost: enabled
base/boost: 3400/3400 scaling: driver: acpi-cpufreq governor: performance
volts: 1.1 V ext-clock: 100 MHz cores: 1: 3400 2: 3400 3: 3400 4: 3400
5: 3400 6: 3400 7: 3400 8: 3400 9: 3400 10: 3400 11: 3400 12: 3400
13: 3400 14: 3400 15: 3400 16: 3400 bogomips: 108799
Flags: avx avx2 ht lm pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
Vulnerabilities: <filter>
Graphics:
Device-1: AMD Navi 21 [Radeon RX 6800/6800 XT / 6900 XT] vendor: Gigabyte
driver: amdgpu v: kernel arch: RDNA-2 code: Navi-2x process: TSMC n7 (7nm)
built: 2020-22 pcie: gen: 4 speed: 16 GT/s lanes: 16 ports: active: DP-2
empty: DP-1,HDMI-A-1,HDMI-A-2 bus-ID: 2d:00.0 chip-ID: 1002:73bf
class-ID: 0300
Display: x11 server: X.Org v: 21.1.8 with: Xwayland v: 23.1.1
compositor: kwin_x11 driver: X: loaded: amdgpu unloaded: modesetting,radeon
alternate: fbdev,vesa dri: radeonsi gpu: amdgpu display-ID: :0 screens: 1
Screen-1: 0 s-res: 2560x1440 s-dpi: 96 s-size: 677x381mm (26.65x15.00")
s-diag: 777mm (30.58")
Monitor-1: DP-2 mapped: DisplayPort-1 model: Samsung LC27G5xT
serial: <filter> built: 2021 res: 2560x1440 hz: 144 dpi: 93 gamma: 1.2
size: 698x393mm (27.48x15.47") diag: 685mm (27") ratio: 16:9 modes:
max: 2560x1440 min: 720x400
API: OpenGL v: 4.6 Mesa 23.0.3 renderer: AMD Radeon RX 6800 XT (navi21
LLVM 15.0.7 DRM 3.49 6.2.13-zen-1-zen) direct-render: Yes
Audio:
Device-1: AMD Navi 21/23 HDMI/DP Audio driver: snd_hda_intel v: kernel
bus-ID: 3-2:3 pcie: gen: 4 chip-ID: 1532:053c speed: 16 GT/s class-ID: 0301
serial: <filter> lanes: 16 bus-ID: 2d:00.1 chip-ID: 1002:ab28
class-ID: 0403
Device-2: AMD Starship/Matisse HD Audio vendor: Micro-Star MSI
driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
bus-ID: 2f:00.4 chip-ID: 1022:1487 class-ID: 0403
Device-3: Razer USA Barracuda 2.4 type: USB
driver: hid-generic,snd-usb-audio,usbhid
API: ALSA v: k6.2.13-zen-1-zen status: kernel-api with: aoss
type: oss-emulator tools: N/A
Server-1: PipeWire v: 0.3.70 status: n/a (root, process) with:
1: pipewire-pulse status: active 2: wireplumber status: active
3: pipewire-alsa type: plugin 4: pw-jack type: plugin
tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet
vendor: Micro-Star MSI driver: r8169 v: kernel pcie: gen: 1 speed: 2.5 GT/s
lanes: 1 port: e000 bus-ID: 05:00.0 chip-ID: 10ec:8168 class-ID: 0200
IF: enp5s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
Device-2: Realtek RTL8125 2.5GbE vendor: Micro-Star MSI driver: r8169
v: kernel pcie: gen: 2 speed: 5 GT/s lanes: 1 port: d000 bus-ID: 2a:00.0
chip-ID: 10ec:8125 class-ID: 0200
IF: enp42s0 state: down mac: <filter>
Drives:
Local Storage: total: 1.15 TiB used: 0 KiB (0.0%)
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: A-Data model: SX8200PNP
size: 476.94 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
lanes: 4 type: SSD serial: <filter> rev: R0906I temp: 36.9 C scheme: GPT
SMART: yes health: PASSED on: 1y 94d 14h cycles: 5,010
read-units: 169,866,374 [86.9 TB] written-units: 104,453,771 [53.4 TB]
ID-2: /dev/nvme1n1 maj-min: 259:5 vendor: Crucial model: CT500P2SSD8
size: 465.76 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
lanes: 4 type: SSD serial: <filter> rev: P2CR012 temp: 32.9 C scheme: GPT
SMART: yes health: PASSED on: 227d 5h cycles: 2,253
read-units: 7,200,268 [3.68 TB] written-units: 9,688,610 [4.96 TB]
ID-3: /dev/sda maj-min: 8:0 type: USB vendor: Western Digital
model: WD2500BMVV-11A1PS0 family: Elements / My Passport (USB)
size: 232.23 GiB block-size: physical: 512 B logical: 512 B sata: 2.5
speed: 1.5 Gb/s type: HDD rpm: 5400 serial: <filter> rev: 1030
drive rev: 01.01A01 temp: 43 C scheme: MBR
SMART: yes state: enabled health: PASSED on: 2y 291d 2h cycles: 8540
Old-Age: write error rate: 100 threshold: 100
Partition:
Message: No partition data found.
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default)
ID-1: swap-1 type: zram size: 31.18 GiB used: 0 KiB (0.0%) priority: 100
dev: /dev/zram0
Sensors:
System Temperatures: cpu: 40.5 C mobo: N/A gpu: amdgpu temp: 63.0 C
mem: 62.0 C
Fan Speeds (RPM): N/A gpu: amdgpu fan: 0
Info:
Processes: 309 Uptime: 6m wakeups: 0 Memory: 31.18 GiB
used: 3.99 GiB (12.8%) Init: systemd v: 253 default: graphical
tool: systemctl Compilers: gcc: 12.2.1 Packages: pm: pacman pkgs: 1821
libs: 519 tools: octopi,paru Shell: garuda-inxi (sudo) default: Bash
v: 5.1.16 running-in: konsole inxi: 3.3.26
warning: database file for 'garuda' does not exist (use '-Sy' to download)
warning: database file for 'core' does not exist (use '-Sy' to download)
warning: database file for 'extra' does not exist (use '-Sy' to download)
warning: database file for 'community' does not exist (use '-Sy' to download)
warning: database file for 'multilib' does not exist (use '-Sy' to download)
warning: database file for 'chaotic-aur' does not exist (use '-Sy' to download)
Garuda (2.6.16-1):
System install date:     2023-05-13
Last full system update: 2023-05-13 ↻
Is partially upgraded:   No
Relevant software:       snapper NetworkManager dracut
Windows dual boot:       No/Undetected
Failed units:

:laughing: Macbooks have a weird hacky efibootmgr thing that has to be done to get the installation up in some cases.

Can you describe the steps leading up to this message? This does not look like part of the tutorial you linked.

Please also post the output of:

efibootmgr -v

and:

sudo parted -l

About that part "parted -l | grep -iE "^Disk /|esp" | grep -B1 esp"

I got this from here.:

part.:
If the system is installed in UEFI
Find existing $esp partitions if more than one

As for the two commands output

**efibootmgr -v**
EFI variables are not supported on this system.
error trace:

**sudo parted -l**
Model: WD My Passport 070A (scsi)
Disk /dev/sda: 249GB
Sector size (logical/physical): 512B/512B
Partition Table: msdos
Disk Flags:

Number  Start   End    Size    Type     File system  Flags
1      1049kB  249GB  249GB   primary               boot
2      249GB   249GB  33.6MB  primary  fat16        esp


Model: ADATA SX8200PNP (nvme)
Disk /dev/nvme0n1: 512GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system     Name                  Flags
1      1049kB  538MB   537MB   fat32           EFI System Partition  boot, esp
2      538MB   2685MB  2147MB  linux-swap(v1)                        swap
3      2685MB  4833MB  2147MB
4      4833MB  512GB   507GB


Warning: Unable to open /dev/sr0 read-write (Read-only file system).  /dev/sr0
has been opened read-only.
Error: The partition's data region doesn't occupy the entire partition.
Ignore/Cancel?

odel: WD Virtual CD 070A (scsi)
Disk /dev/sr0: 700MB
Sector size (logical/physical): 2048B/2048B
Partition Table: mac
Disk Flags:

Number  Start  End     Size    File system  Name                   Flags
1      2048B  32.8kB  30.7kB               Apple
2      437MB  598MB   161MB                DiscRecording 4.0.3d3


Model: CT500P2SSD8 (nvme)
Disk /dev/nvme1n1: 500GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start   End    Size   File system  Name                          Flags
1      17.4kB  134MB  134MB               Microsoft reserved partition  msftres
2      135MB   500GB  500GB  ntfs         Basic data partition          msftdata


Model: Unknown (unknown)
Disk /dev/zram0: 33.5GB
Sector size (logical/physical): 4096B/4096B
Partition Table: loop
Disk Flags:

Number  Start  End     Size    File system     Flags
1      0.00B  33.5GB  33.5GB  linux-swap(v1)

Disk have created partitions, but even if I do quick format and start a new installation, it does not change anything.

Are you sure legacy mode has not been enabled? I ask because of this:

Double-check in the BIOS menu that legacy mode is disabled.

Which disk are you choosing as the installation target? Are you attempting a full wipe/install, or something else?

1 Like

Yes, I'm running OS in UEFI mode.
First I tried following this.:

Then I also tried full/wipe/install and I'm trying to install it only on.:
Model: ADATA SX8200PNP (nvme)
Disk /dev/nvme0n1: 512GB

Results were only the same.

Hmm, something about your UEFI does not seem to be handling this correctly. Check if you have a CSM option in the BIOS menu and disable it.

There is a switch in BIOS where you can choose CSM or UEFI, it's been enabled (by default too ) as UEFI.
I installed around 15 distros in last 3 days and only Garuda have this issue.

It appears something is tricking your UEFI into using legacy mode, so the installation fails because it is attempting to use UEFI mode. My hunch is a setting in your BIOS menu is responsible, although I obviously cannot see what you have in there. Another consideration would be to try a different USB stick.

1 Like

Use ventoy.net, use normal boot to boot the ISO.

I'll try live boot with other distros and let you know if efibootmgr reports something different. Thanks for the checking :slight_smile:

@SGS That's the way I'm installing any distro including Garuda.

1 Like

Ok, with other distros it also reported same issue >

EFI variables are not supported on this system.

Then I thought of one last thing to try, I reset the bios settings.

╰─λ efibootmgr -v
BootCurrent: 0009
Timeout: 1 seconds
BootOrder: 0009,000A
Boot0005 UEFI OS HD(1,GPT,acbe5d56-8082-3a43-a8b2-47bb835bad46,0x1000,0x1f4000)/File(\EFI\BOOT\BOOTX64.EFI)0000424f
dp: 04 01 2a 00 01 00 00 00 00 10 00 00 00 00 00 00 00 40 1f 00 00 00 00 00 56 5d be ac 82 80 43 3a a8 b2 47 bb 83 5b ad 46 02 02 / 04 04 30 00 5c 00 45 00 46 00 49 00 5c 00 42 00 4f 00 4f 00 54 00 5c 00 42 00 4f 00 4f 00 54 00 58 00 36 00 34 00 2e 00 45 00 46 00 49 00 00 00 / 7f ff 04 00
data: 00 00 42 4f
Boot0009* UEFI OS HD(2,MBR,0x29a507b,0x1d066800,0x10000)/File(\EFI\BOOT\BOOTX64.EFI)0000424f
dp: 04 01 2a 00 02 00 00 00 00 68 06 1d 00 00 00 00 00 00 01 00 00 00 00 00 7b 50 9a 02 00 00 00 00 00 00 00 00 00 00 00 00 01 01 / 04 04 30 00 5c 00 45 00 46 00 49 00 5c 00 42 00 4f 00 4f 00 54 00 5c 00 42 00 4f 00 4f 00 54 00 58 00 36 00 34 00 2e 00 45 00 46 00 49 00 00 00 / 7f ff 04 00
data: 00 00 42 4f
Boot000A* ubuntu HD(1,GPT,06457706-b697-4a4f-82ca-4267e33bf0d3,0x800,0x100000)/File(\EFI\UBUNTU\SHIMX64.EFI)0000424f
dp: 04 01 2a 00 01 00 00 00 00 08 00 00 00 00 00 00 00 00 10 00 00 00 00 00 06 77 45 06 97 b6 4f 4a 82 ca 42 67 e3 3b f0 d3 02 02 / 04 04 34 00 5c 00 45 00 46 00 49 00 5c 00 55 00 42 00 55 00 4e 00 54 00 55 00 5c 00 53 00 48 00 49 00 4d 00 58 00 36 00 34 00 2e 00 45 00 46 00 49 00 00 00 / 7f ff 04 00
data: 00 00 42 4f

I will let you know if installation finish normally now :slight_smile:

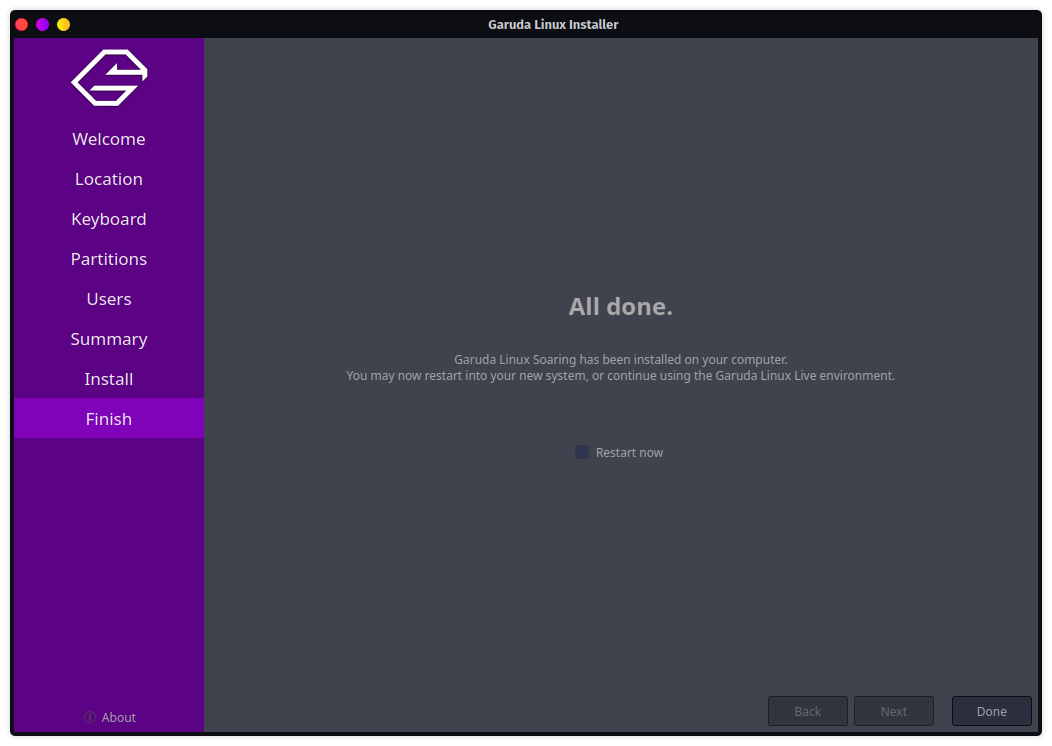

Finally, installation finished. I'm not sure what settings make in happen in BIOS (And no, it was set to UEFI mode before resetting bios just like after reset).

Thanks again for the assistance guys!

This topic was automatically closed 2 days after the last reply. New replies are no longer allowed.
