I messed up (dual boot)

Issues & Assistance Unsupported hardware | Dual boot
1

i have garuda kde on my ( 1 TB ssd ) and i installed garuda hyprland on ( 512 GB ssd ) after reboot i cannot find the 1 TB boot option

System:
  Kernel: 6.8.7-zen1-2-zen arch: x86_64 bits: 64 compiler: gcc v: 13.2.1
    clocksource: tsc avail: acpi_pm
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
    root=UUID=ac4480b0-c5d0-49e6-86fc-2f2b031bc812 rw rootflags=subvol=@
    quiet resume=UUID=ed06eb17-a597-4b93-aff8-ec69bd5e7e2c loglevel=3 ibt=off
  Desktop: Hyprland v: N/A with: waybar tools: avail: swayidle,swaylock
    vt: 1 dm: SDDM Distro: Garuda base: Arch Linux
Machine:
  Type: Laptop System: ASUSTeK product: ASUS TUF Gaming F15 FX506LU_FX566LU
    v: 1.0 serial: <superuser required>
  Mobo: ASUSTeK model: FX506LU v: 1.0 serial: <superuser required>
    uuid: <superuser required> UEFI: American Megatrends v: FX506LU.310
    date: 11/26/2021
Battery:
  ID-1: BAT1 charge: 77.6 Wh (99.9%) condition: 77.7/90.0 Wh (86.4%)
    volts: 16.7 min: 15.4 model: ASUS A32-K55 type: Li-ion serial: N/A
    status: not charging
CPU:
  Info: model: Intel Core i5-10300H bits: 64 type: MT MCP arch: Comet Lake
    gen: core 10 level: v3 note: check built: 2020 process: Intel 14nm family: 6
    model-id: 0xA5 (165) stepping: 2 microcode: 0xFA
  Topology: cpus: 1x dies: 1 clusters: 4 cores: 4 threads: 8 tpc: 2
    smt: enabled cache: L1: 256 KiB desc: d-4x32 KiB; i-4x32 KiB L2: 1024 KiB
    desc: 4x256 KiB L3: 8 MiB desc: 1x8 MiB
  Speed (MHz): avg: 2264 min/max: 800/4500 scaling: driver: intel_pstate
    governor: powersave cores: 1: 2264 2: 2264 3: 2264 4: 2264 5: 2264 6: 2264
    7: 2264 8: 2264 bogomips: 39999
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
  Vulnerabilities: <filter>
Graphics:
  Device-1: Intel CometLake-H GT2 [UHD Graphics] vendor: ASUSTeK driver: i915
    v: kernel arch: Gen-9.5 process: Intel 14nm built: 2016-20 ports:
    active: none off: eDP-1 empty: none bus-ID: 00:02.0 chip-ID: 8086:9bc4
    class-ID: 0300
  Device-2: NVIDIA TU116M [GeForce GTX 1660 Ti Mobile] vendor: ASUSTeK
    driver: nvidia v: 550.76 alternate: nouveau,nvidia_drm non-free: 550.xx+
    status: current (as of 2024-09; EOL~2026-12-xx) arch: Turing code: TUxxx
    process: TSMC 12nm FF built: 2018-2022 pcie: gen: 1 speed: 2.5 GT/s
    lanes: 16 link-max: gen: 3 speed: 8 GT/s ports: active: none off: HDMI-A-1
    empty: DP-1 bus-ID: 01:00.0 chip-ID: 10de:2191 class-ID: 0300
  Device-3: IMC Networks USB2.0 HD UVC WebCam driver: uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-7:3 chip-ID: 13d3:56a2
    class-ID: 0e02 serial: <filter>
  Display: wayland server: X.org v: 1.21.1.15 with: Xwayland v: 24.1.4
    compositor: Hyprland driver: X: loaded: modesetting,nvidia unloaded: nouveau
    alternate: fbdev,intel,nv,vesa dri: iris gpu: i915,nvidia,nvidia-nvswitch
    d-rect: 3840x1080 display-ID: 1
  Monitor-1: HDMI-A-1 pos: right model: LG (GoldStar) ULTRAGEAR
    serial: <filter> built: 2023 res: 1920x1080 hz: 144 dpi: 93 gamma: 1.2
    scale: 1 size: 527x296mm (20.75x11.65") diag: 604mm (23.8") ratio: 16:9
    modes: max: 1920x1080 min: 640x480
  Monitor-2: eDP-1 pos: primary,left model: ChiMei InnoLux 0x1521
    built: 2020 res: 1920x1080 hz: 144 dpi: 142 gamma: 1.2 scale: 1
    size: 344x193mm (13.54x7.6") diag: 394mm (15.5") ratio: 16:9
    modes: 1920x1080
  API: Vulkan v: 1.4.303 layers: 6 device: 0 type: integrated-gpu name: Intel
    UHD Graphics (CML GT2) driver: N/A device-ID: 8086:9bc4
    surfaces: xcb,xlib,wayland device: 1 type: cpu name: llvmpipe (LLVM
    18.1.8 256 bits) driver: N/A device-ID: 10005:0000
    surfaces: xcb,xlib,wayland
  API: EGL Message: EGL data requires eglinfo. Check --recommends.
Audio:
  Device-1: Intel Comet Lake PCH cAVS vendor: ASUSTeK driver: snd_hda_intel
    v: kernel alternate: snd_soc_skl,snd_sof_pci_intel_cnl bus-ID: 00:1f.3
    chip-ID: 8086:06c8 class-ID: 0403
  Device-2: NVIDIA TU116 High Definition Audio vendor: ASUSTeK
    driver: snd_hda_intel v: kernel pcie: gen: 1 speed: 2.5 GT/s lanes: 16
    link-max: gen: 3 speed: 8 GT/s bus-ID: 01:00.1 chip-ID: 10de:1aeb
    class-ID: 0403
  API: ALSA v: k6.8.7-zen1-2-zen status: kernel-api tools: N/A
  Server-1: sndiod v: N/A status: off tools: aucat,midicat,sndioctl
  Server-2: PipeWire v: 1.2.7 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Intel Comet Lake PCH CNVi WiFi driver: iwlwifi v: kernel
    bus-ID: 00:14.3 chip-ID: 8086:06f0 class-ID: 0280
  IF: wlo1 state: up mac: <filter>
  Device-2: Realtek RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet
    vendor: ASUSTeK driver: r8169 v: kernel pcie: gen: 1 speed: 2.5 GT/s
    lanes: 1 port: 3000 bus-ID: 04:00.0 chip-ID: 10ec:8168 class-ID: 0200
  IF: enp4s0 state: down mac: <filter>
  Info: services: NetworkManager, systemd-timesyncd, wpa_supplicant
Bluetooth:
  Device-1: Intel AX201 Bluetooth driver: btusb v: 0.8 type: USB rev: 2.0
    speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-14:4 chip-ID: 8087:0026
    class-ID: e001
  Report: btmgmt ID: hci0 rfk-id: 0 state: up address: <filter> bt-v: 5.2
    lmp-v: 11 status: discoverable: no pairing: no class-ID: 6c010c
Drives:
  Local Storage: total: 1.4 TiB used: 723.37 GiB (50.6%)
  SMART Message: Required tool smartctl not installed. Check --recommends
  ID-1: /dev/nvme0n1 maj-min: 259:4 vendor: A-Data model: SX6000PNP
    size: 476.94 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
    lanes: 4 tech: SSD serial: <filter> fw-rev: VC0S036H temp: 33.9 C
    scheme: GPT
  ID-2: /dev/nvme1n1 maj-min: 259:0 vendor: Micron model: 2210 MTFDHBA1T0QFD
    size: 953.87 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
    lanes: 4 tech: SSD serial: <filter> fw-rev: P6MA001 temp: 38.9 C
    scheme: GPT
Partition:
  ID-1: / raw-size: 459.64 GiB size: 459.64 GiB (100.00%)
    used: 12.52 GiB (2.7%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:6
  ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
    used: 584 KiB (0.2%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:5
  ID-3: /home raw-size: 459.64 GiB size: 459.64 GiB (100.00%)
    used: 12.52 GiB (2.7%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:6
  ID-4: /var/log raw-size: 459.64 GiB size: 459.64 GiB (100.00%)
    used: 12.52 GiB (2.7%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:6
  ID-5: /var/tmp raw-size: 459.64 GiB size: 459.64 GiB (100.00%)
    used: 12.52 GiB (2.7%) fs: btrfs dev: /dev/nvme0n1p2 maj-min: 259:6
Swap:
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
  ID-1: swap-1 type: zram size: 15.46 GiB used: 512 KiB (0.0%) priority: 100
    comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 8 dev: /dev/zram0
  ID-2: swap-2 type: partition size: 17 GiB used: 0 KiB (0.0%) priority: -2
    dev: /dev/nvme0n1p3 maj-min: 259:7
Sensors:
  System Temperatures: cpu: 55.0 C pch: 58.0 C mobo: N/A
  Fan Speeds (rpm): cpu: 0
Info:
  Memory: total: 16 GiB available: 15.46 GiB used: 3.26 GiB (21.1%)
  Processes: 287 Power: uptime: 27m states: freeze,mem,disk suspend: deep
    avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
    suspend, test_resume image: 6.14 GiB services: upowerd Init: systemd
    v: 257 default: graphical tool: systemctl
  Packages: pm: pacman pkgs: 1291 libs: 378 tools: pacseek,paru Compilers:
    gcc: 14.2.1 Shell: garuda-inxi default: fish v: 3.7.1 running-in: foot
    inxi: 3.3.36
Garuda (2.6.26-1):
  System install date:     2025-01-04
  Last full system update: 2025-01-04 ↻
  Is partially upgraded:   No
  Relevant software:       snapper NetworkManager dracut nvidia-dkms
  Windows dual boot:       Probably (Run as root to verify)
  Failed units:            updatedb.timer
2

Reboot

Maybe also try

sudo os-prober
3
sudo os-prober
[sudo] password for mak:
/dev/nvme1n1p1@/efi/Microsoft/Boot/bootmgfw.efi:Windows Boot Manager:Windows:efi
McFly: Importing shell history for the first time. This may take a minute or two...done.


Generating grub configuration file ...
Found theme: /usr/share/grub/themes/garuda/theme.txt
Found linux image: /boot/vmlinuz-linux-zen
Found initrd image: /boot/initramfs-linux-zen.img
Found fallback initrd image(s) in /boot:  initramfs-linux-zen-fallback.img
Warning: os-prober will be executed to detect other bootable partitions.
Its output will be used to detect bootable binaries on them and create new boot entries.
Found Windows Boot Manager on /dev/nvme1n1p1@/efi/Microsoft/Boot/bootmgfw.efi
Adding boot menu entry for UEFI Firmware Settings ...
Detecting snapshots ...
Found snapshot: 2025-01-04 19:11:35 | @/.snapshots/2/snapshot | post | 7zip abseil-cpp adobe-source-code-pro-fonts adwaita-cursors adwaita-icon |
Found snapshot: 2025-01-04 19:07:20 | @/.snapshots/1/snapshot | pre  | pacman -Su                                                               |
Found 2 snapshot(s)
Unmount /tmp/grub-btrfs.ZbJIpHpRxS .. Success
Found memtest86+ image: /boot/memtest86+/memtest.bin
/usr/bin/grub-probe: warning: unknown device type nvme0n1.
done
4

i don’t even have windows

5

Is that your 1tb ssd though? If it is you will probably see your installs on grub now. & ofcourse your PC is begging you for a reboot.

6

my 1 TB ssd does not even show up on boot menu

7

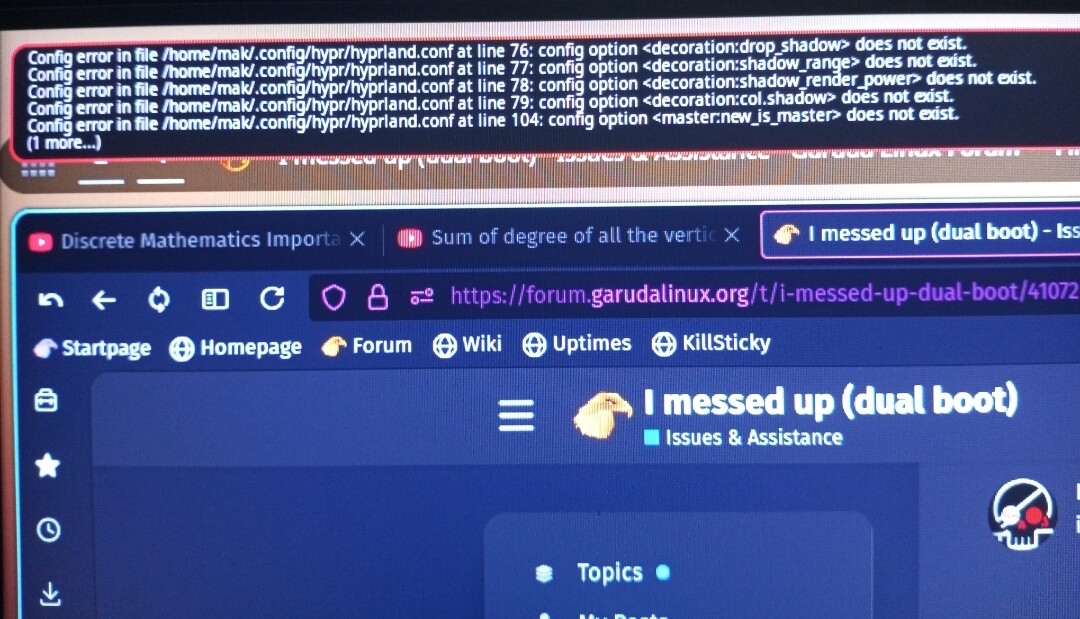

this just showed up after i rebooted

Screenshot_20250104-194830
Screenshot_20250104-1948301080×619 192 KB

8
lsblk -f

maybe

sudo update-grub

or

sudo grub-install
sudo update-grub
9

The error message are solved, solution is in the forum.

Ok, you did not change the name from garuda to something else before your second garuda install.
So, just use custom.conf in /boot/grub like

menuentry "Garuda Linux i3wm auf nvme0n1p7" {
   insmod btrfs
   search --no-floppy --fs-uuid --set=root 21e02e96-0ed6-4629-9a39-85ffee7a4359
   configfile /@/boot/grub/grub.cfg
   }
1 Like
11

im in my 1 tb drive and iam unable to copy the contents of grub.cfg to txt

like

grub.cfg >> o.txt
permission denied

12

Btw, read slowly, nobody talk about grub.cfg.

Files in / sometimes only editable when run as root.

13

update Garuda Hyprland, that should be fixed. You probably installed from an old iso.

This options were removed

    drop_shadow = true
    shadow_range = 4
    shadow_render_power = 3

For this:

    col.shadow = rgba(1a1a1aee)
    shadow {
        enabled = true
        range = 4
        render_power = 3
        color = rgba(1a1a1aee)
    }

I think this should be a differen’t topic though.

14

upd does not fix it, the user must copy the hyprland.conf from /etc/skel
, the solution was posted by Ankur here in the forum.

I am just tired to search for other people :smiley:

And

  • ONE issue per topic.
    :slight_smile:
1 Like
15

I hate to say this but I don’t remember copying over anything and my hyprland.conf in ‘skel’ is in the right place with the latest content.

16

there is nothing in /etc/skel

17

latest iso which i downloaded today

18

Thats because a majority of the files are hidden.

Try ls -a

To save you time

just replace your hyprland.conf , with this

1 Like
19

iam an idiot

IMG_20240906_070121_377
IMG_20240906_070121_377320×190 4.82 KB

the hyprland issue is solved but my main problem remains

20

I rarely contradict a user here, but insight is the best way to improve :wink:

1 Like
21
lsblk -f

NAME        FSTYPE FSVER LABEL UUID                                 FSAVAIL FSUSE% MOUNTPOINTS
zram0       swap   1     zram0 6c099511-62a2-4ffc-b65d-a47b1f643e46                [SWAP]
nvme1n1
├─nvme1n1p1 vfat   FAT32       3D24-A6E8
├─nvme1n1p2 btrfs              6a89eaea-308f-4abd-9fcb-ab5da7653d04  224.1G    76% /run/media/mak/6a89eaea-308f-4abd-9fcb-ab5da7653d04
└─nvme1n1p3 swap   1     swap  b465697a-8524-4f00-a34b-323b7b836c83
nvme0n1
├─nvme0n1p1 vfat   FAT32       5B72-69ED                             298.8M     0% /boot/efi
├─nvme0n1p2 btrfs              ac4480b0-c5d0-49e6-86fc-2f2b031bc812  445.6G     3% /var/tmp
│                                                                                  /var/log
│                                                                                  /var/cache
│                                                                                  /srv
│                                                                                  /root
│                                                                                  /home
│                                                                                  /
└─nvme0n1p3 swap   1     swap  ed06eb17-a597-4b93-aff8-ec69bd5e7e2c                [SWAP]

fdisk -l

Disk /dev/nvme1n1: 953.87 GiB, 1024209543168 bytes, 2000409264 sectors
Disk model: Micron_2210_MTFDHBA1T0QFD
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 5D64E12E-7616-4454-AA55-A55EF077A6BE

Device              Start        End    Sectors   Size Type
/dev/nvme1n1p1       4096     618495     614400   300M EFI System
/dev/nvme1n1p2     618496 1964739773 1964121278 936.6G Linux filesystem
/dev/nvme1n1p3 1964739774 2000397734   35657961    17G Linux swap


Disk /dev/nvme0n1: 476.94 GiB, 512110190592 bytes, 1000215216 sectors
Disk model: ADATA SX6000PNP
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: AF770735-D134-4BAD-B1D7-C1EA930F32FE

Device             Start        End   Sectors   Size Type
/dev/nvme0n1p1      4096     618495    614400   300M EFI System
/dev/nvme0n1p2    618496  964548938 963930443 459.6G Linux filesystem
/dev/nvme0n1p3 964548939 1000206899  35657961    17G Linux swap


Disk /dev/zram0: 15.45 GiB, 16593715200 bytes, 4051200 sectors
Units: sectors of 1 * 4096 = 4096 bytes
Sector size (logical/physical): 4096 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
