Having audio jack issue

harshjeet · 12 November 2023 03:27

Hello Garuda Team,
when i plugged earphone in audio jack , sound comes from both inbuilt speaker and earphone both. But in windows it is working fine.
why this issue is happening ?
Kindly help me.

Kernel: 6.6.1-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 13.2.1
clocksource: tsc available: acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=6b6fa549-88e4-4b89-8c1f-4caffe56dbe3 rw rootflags=subvol=@
quiet loglevel=3 ibt=off
Desktop: KDE Plasma v: 5.27.9 tk: Qt v: 5.15.11 wm: kwin_wayland vt: 1
dm: SDDM Distro: Garuda Linux base: Arch Linux
Machine:
Type: Laptop System: LENOVO product: 83BF v: IdeaPad Slim 5 14IAH8
serial: <superuser required> Chassis: type: 10 v: IdeaPad Slim 5 14IAH8
serial: <superuser required>
Mobo: LENOVO model: LNVNB161216 v: SDK0T76485 WIN
serial: <superuser required> UEFI: LENOVO v: LACN25WW date: 05/25/2023
Battery:
ID-1: BAT1 charge: 34.6 Wh (60.5%) condition: 57.2/56.6 Wh (101.0%)
power: 14.4 W volts: 11.5 min: 11.5 model: LGES L22L3PA4 type: Unknown
serial: <filter> status: discharging
CPU:
Info: model: 12th Gen Intel Core i5-12450H bits: 64 type: MST AMCP
arch: Alder Lake gen: core 12 level: v3 note: check built: 2021+
process: Intel 7 (10nm ESF) family: 6 model-id: 0x9A (154) stepping: 3
microcode: 0x42C
Topology: cpus: 1x cores: 8 mt: 4 tpc: 2 st: 4 threads: 12 smt: enabled
cache: L1: 704 KiB desc: d-4x32 KiB, 4x48 KiB; i-4x32 KiB, 4x64 KiB
L2: 7 MiB desc: 4x1.2 MiB, 1x2 MiB L3: 12 MiB desc: 1x12 MiB
Speed (MHz): avg: 1824 high: 4218 min/max: 400/4400:3300 scaling:
driver: intel_pstate governor: powersave cores: 1: 649 2: 1515 3: 400 4: 400
5: 4130 6: 4218 7: 1742 8: 400 9: 2245 10: 2774 11: 400 12: 3024
bogomips: 59904
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
Vulnerabilities: <filter>
Graphics:
Device-1: Intel Alder Lake-P GT1 [UHD Graphics] vendor: Lenovo driver: i915
v: kernel arch: Gen-12.2 process: Intel 10nm built: 2021-22+ ports:
active: eDP-1 empty: DP-1,DP-2,HDMI-A-1 bus-ID: 00:02.0 chip-ID: 8086:46a3
class-ID: 0300
Device-2: Chicony Integrated Camera driver: uvcvideo type: USB rev: 2.0
speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-5:4 chip-ID: 04f2:b7b9
class-ID: fe01 serial: <filter>
Display: wayland server: X.org v: 1.21.1.9 with: Xwayland v: 23.2.2
compositor: kwin_wayland driver: X: loaded: modesetting
alternate: fbdev,intel,vesa dri: iris gpu: i915 display-ID: 0
Monitor-1: eDP-1 res: 1280x800 size: N/A modes: N/A
API: EGL v: 1.5 hw: drv: intel iris platforms: device: 0 drv: iris
device: 1 drv: swrast surfaceless: drv: iris wayland: drv: iris x11:
drv: iris inactive: gbm
API: OpenGL v: 4.6 compat-v: 4.5 vendor: intel mesa v: 23.2.1-arch1.2
glx-v: 1.4 direct-render: yes renderer: Mesa Intel Graphics (ADL GT2)
device-ID: 8086:46a3 memory: 14.99 GiB unified: yes display-ID: :1.0
API: Vulkan v: 1.3.269 layers: 3 device: 0 type: integrated-gpu name: Intel
Graphics (ADL GT2) driver: mesa intel v: 23.2.1-arch1.2
device-ID: 8086:46a3 surfaces: xcb,xlib,wayland device: 1 type: cpu
name: llvmpipe (LLVM 16.0.6 256 bits) driver: mesa llvmpipe
v: 23.2.1-arch1.2 (LLVM 16.0.6) device-ID: 10005:0000
surfaces: xcb,xlib,wayland
Audio:
Device-1: Intel Alder Lake PCH-P High Definition Audio vendor: Lenovo
driver: snd_hda_intel v: kernel alternate: snd_sof_pci_intel_tgl
bus-ID: 00:1f.3 chip-ID: 8086:51c8 class-ID: 0403
API: ALSA v: k6.6.1-zen1-1-zen status: kernel-api tools: N/A
Server-1: PipeWire v: 0.3.84 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Realtek vendor: Lenovo driver: rtw89_8852be v: kernel pcie: gen: 1
speed: 2.5 GT/s lanes: 1 port: 3000 bus-ID: 03:00.0 chip-ID: 10ec:b852
class-ID: 0280
IF: wlp3s0 state: up mac: <filter>
Bluetooth:
Device-1: Realtek Bluetooth Radio driver: btusb v: 0.8 type: USB rev: 1.0
speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-10:5 chip-ID: 0bda:4853
class-ID: e001 serial: <filter>
Report: btmgmt ID: hci0 rfk-id: 2 state: up address: <filter> bt-v: 5.3
lmp-v: 12 status: discoverable: no pairing: no class-ID: 7c010c
Drives:
Local Storage: total: 476.94 GiB used: 8.58 GiB (1.8%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Western Digital model: WD PC
SN740 SDDPMQD-512G-1101 size: 476.94 GiB block-size: physical: 512 B
logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
fw-rev: 73110001 temp: 38.9 C scheme: GPT
Partition:
ID-1: / raw-size: 60 GiB size: 60 GiB (100.00%) used: 8.55 GiB (14.2%)
fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
ID-2: /boot/efi raw-size: 100 MiB size: 96 MiB (96.00%)
used: 35.9 MiB (37.3%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
ID-3: /home raw-size: 60 GiB size: 60 GiB (100.00%) used: 8.55 GiB (14.2%)
fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
ID-4: /var/log raw-size: 60 GiB size: 60 GiB (100.00%)
used: 8.55 GiB (14.2%) fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
ID-5: /var/tmp raw-size: 60 GiB size: 60 GiB (100.00%)
used: 8.55 GiB (14.2%) fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 15.35 GiB used: 0 KiB (0.0%) priority: 100
comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 12 dev: /dev/zram0
Sensors:
Src: /sys System Temperatures: cpu: 65.0 C mobo: N/A
Fan Speeds (rpm): N/A
Info:
Processes: 322 Uptime: 3m wakeups: 0 Memory: total: 16 GiB note: est.
available: 15.35 GiB used: 5.12 GiB (33.4%) Init: systemd v: 254
default: graphical tool: systemctl Compilers: gcc: 13.2.1 Packages:
pm: pacman pkgs: 1392 libs: 409 tools: octopi,pamac,paru Shell: fish
v: 3.6.1 running-in: konsole inxi: 3.3.31
Garuda (2.6.19-1):
System install date:     2023-11-12
Last full system update: 2023-11-12
Is partially upgraded:   No
Relevant software:       snapper NetworkManager dracut
Windows dual boot:       Probably (Run as root to verify)
Failed units:            systemd-vconsole-setup.service

meanruse · 12 November 2023 04:10

Not sure but this may have some advice:
[Solved]: WirePlumber doesn't auto-mute alsa / Applications & Desktop Environments / Arch Linux Forums

Quotes from there:

It looks like you chose the “pro” profile for your card. I’d suggest you try to set it to the normal “analog stereo duplex” with pavucontrol. The pro profile might disable things like autodetect, hardware volume control and so on and give direct access to all ports to audio software.

would be the first thing to check.

edit: scrap the amixer thing, I’d keep that as last resort and look into wireplumber configuration instead (if the above is not the problem)

harshjeet · 22 November 2023 05:38

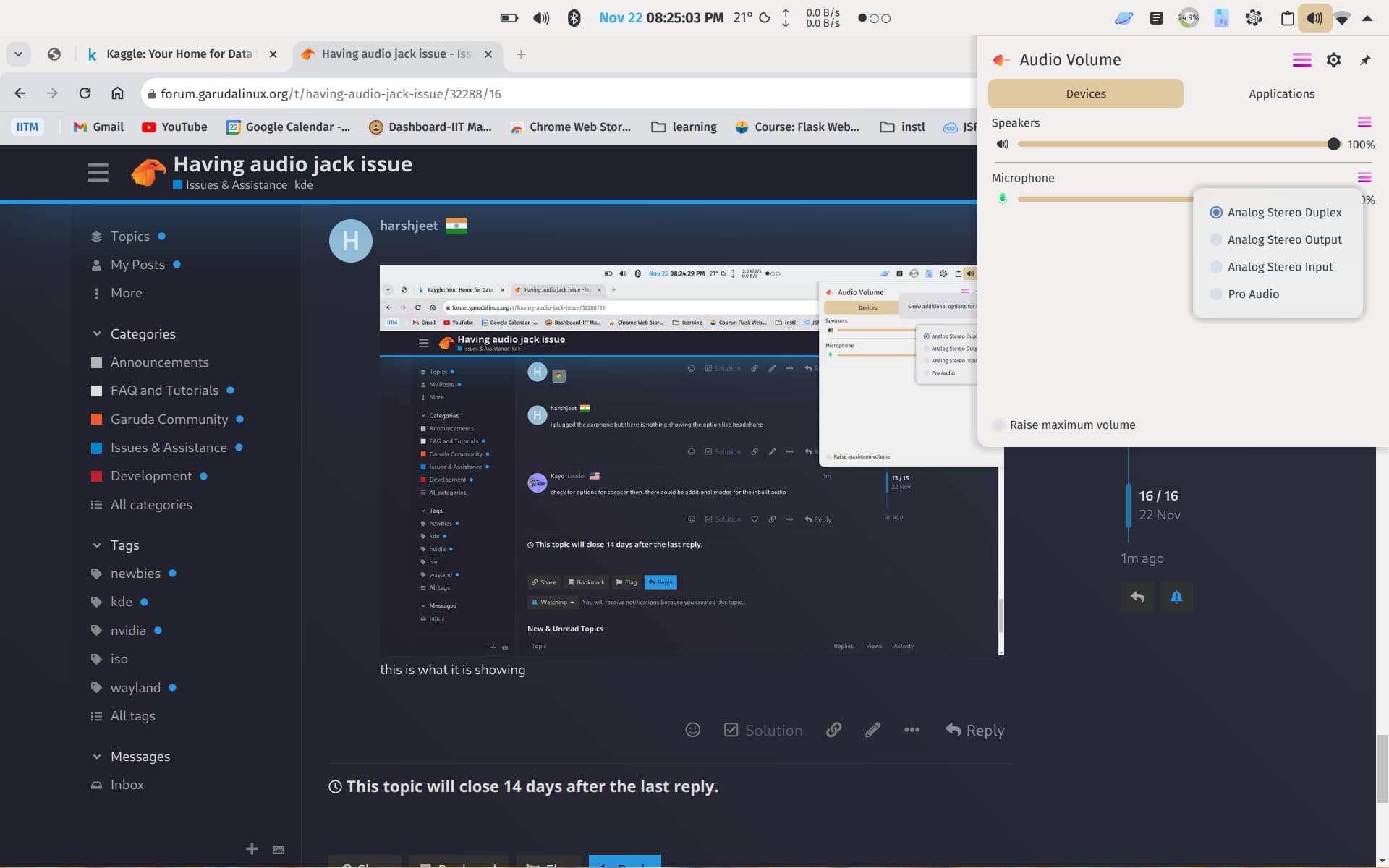

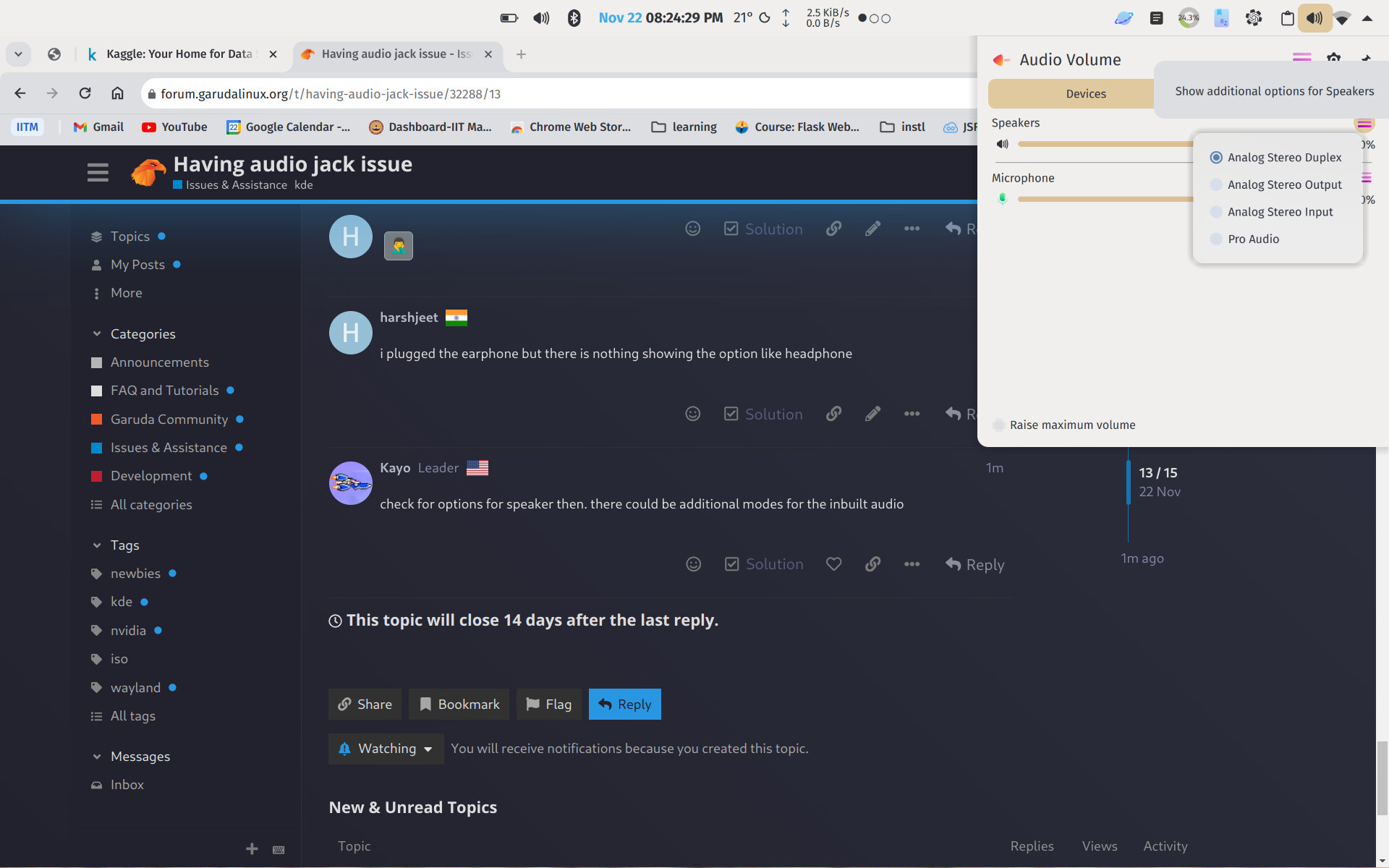

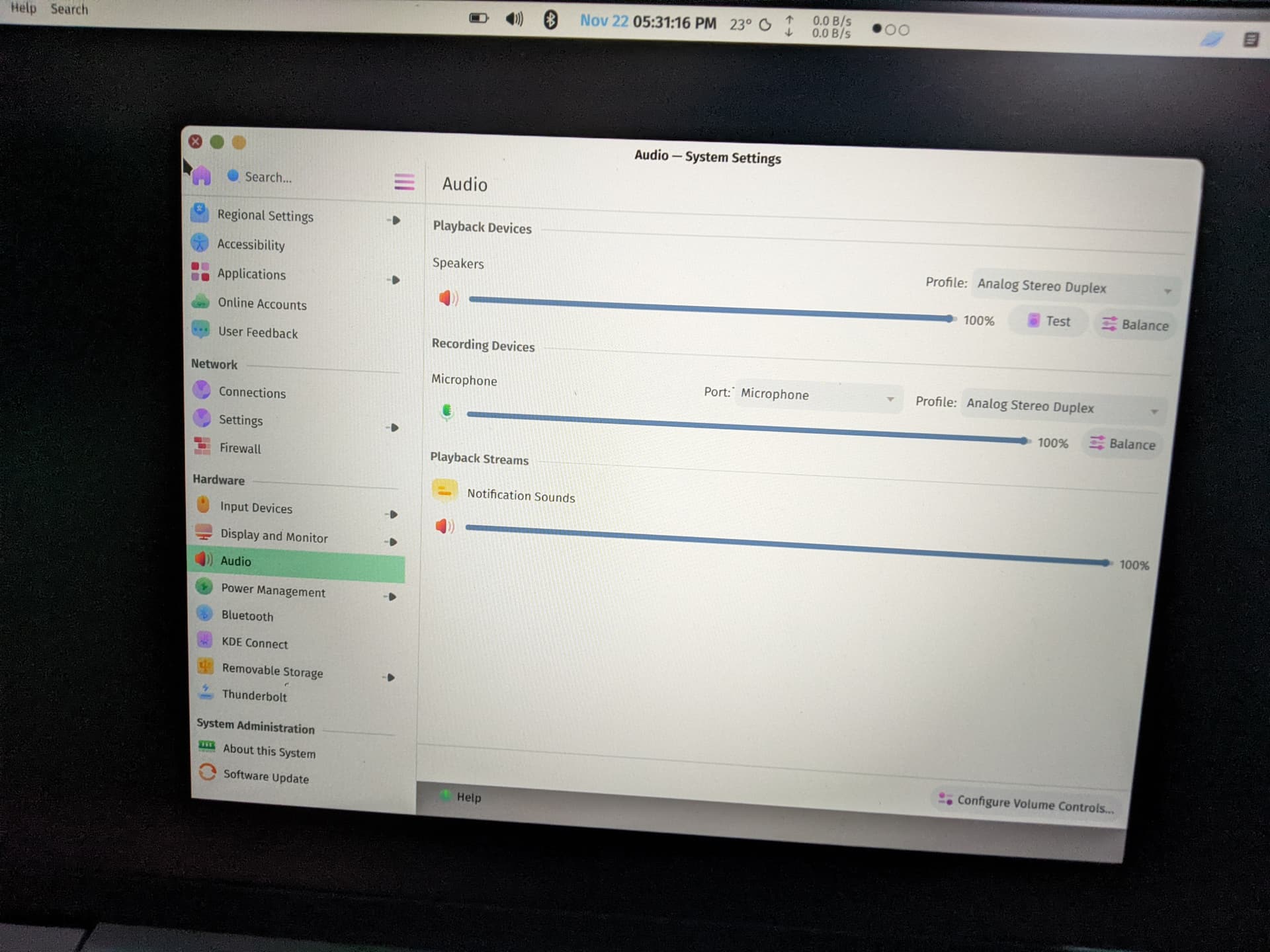

how to set it to normal profile

harshjeet · 22 November 2023 11:25

when i connect earphone , sound output come from both speaker and earphone.
pls help

System:
Kernel: 6.6.2-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 13.2.1
clocksource: tsc available: acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=6b6fa549-88e4-4b89-8c1f-4caffe56dbe3 rw rootflags=subvol=@
quiet loglevel=3 ibt=off
Desktop: KDE Plasma v: 5.27.9 tk: Qt v: 5.15.11 wm: kwin_wayland vt: 1
dm: SDDM Distro: Garuda Linux base: Arch Linux
Machine:
Type: Laptop System: LENOVO product: 83BF v: IdeaPad Slim 5 14IAH8
serial: <superuser required> Chassis: type: 10 v: IdeaPad Slim 5 14IAH8
serial: <superuser required>
Mobo: LENOVO model: LNVNB161216 v: SDK0T76485 WIN
serial: <superuser required> UEFI: LENOVO v: LACN25WW date: 05/25/2023
Battery:
ID-1: BAT1 charge: 39.9 Wh (69.8%) condition: 57.2/56.6 Wh (101.0%)
power: 9.2 W volts: 12.1 min: 11.5 model: LGES L22L3PA42 type: Unknown
serial: <filter> status: discharging
Device-1: hidpp_battery_0 model: Logitech Wireless Mouse serial: <filter>
charge: 50% (should be ignored) rechargeable: yes status: N/A
CPU:
Info: model: 12th Gen Intel Core i5-12450H bits: 64 type: MST AMCP
arch: Alder Lake gen: core 12 level: v3 note: check built: 2021+
process: Intel 7 (10nm ESF) family: 6 model-id: 0x9A (154) stepping: 3
microcode: 0x430
Topology: cpus: 1x cores: 8 mt: 4 tpc: 2 st: 4 threads: 12 smt: enabled
cache: L1: 704 KiB desc: d-4x32 KiB, 4x48 KiB; i-4x32 KiB, 4x64 KiB
L2: 7 MiB desc: 4x1.2 MiB, 1x2 MiB L3: 12 MiB desc: 1x12 MiB
Speed (MHz): avg: 611 high: 1109 min/max: 400/4400:3300 scaling:
driver: intel_pstate governor: powersave cores: 1: 663 2: 400 3: 400 4: 400
5: 808 6: 400 7: 400 8: 1109 9: 961 10: 400 11: 996 12: 400
bogomips: 59904
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
Vulnerabilities: <filter>
Graphics:
Device-1: Intel Alder Lake-P GT1 [UHD Graphics] vendor: Lenovo driver: i915
v: kernel arch: Gen-12.2 process: Intel 10nm built: 2021-22+ ports:
active: eDP-1 empty: DP-1,DP-2,HDMI-A-1 bus-ID: 00:02.0 chip-ID: 8086:46a3
class-ID: 0300
Device-2: Chicony Integrated Camera driver: uvcvideo type: USB rev: 2.0
speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-5:3 chip-ID: 04f2:b7b9
class-ID: fe01 serial: <filter>
Display: wayland server: X.org v: 1.21.1.9 with: Xwayland v: 23.2.2
compositor: kwin_wayland driver: X: loaded: modesetting
alternate: fbdev,intel,vesa dri: iris gpu: i915 display-ID: 0
Monitor-1: eDP-1 res: 1536x960 size: N/A modes: N/A
API: EGL v: 1.5 hw: drv: intel iris platforms: device: 0 drv: iris
device: 1 drv: swrast surfaceless: drv: iris wayland: drv: iris x11:
drv: iris inactive: gbm
API: OpenGL v: 4.6 compat-v: 4.5 vendor: intel mesa v: 23.2.1-arch1.2
glx-v: 1.4 direct-render: yes renderer: Mesa Intel Graphics (ADL GT2)
device-ID: 8086:46a3 memory: 14.99 GiB unified: yes display-ID: :1.0
API: Vulkan v: 1.3.269 layers: 3 device: 0 type: integrated-gpu name: Intel
Graphics (ADL GT2) driver: mesa intel v: 23.2.1-arch1.2
device-ID: 8086:46a3 surfaces: xcb,xlib,wayland device: 1 type: cpu
name: llvmpipe (LLVM 16.0.6 256 bits) driver: mesa llvmpipe
v: 23.2.1-arch1.2 (LLVM 16.0.6) device-ID: 10005:0000
surfaces: xcb,xlib,wayland
Audio:
Device-1: Intel Alder Lake PCH-P High Definition Audio vendor: Lenovo
driver: snd_hda_intel v: kernel alternate: snd_sof_pci_intel_tgl
bus-ID: 00:1f.3 chip-ID: 8086:51c8 class-ID: 0403
API: ALSA v: k6.6.2-zen1-1-zen status: kernel-api tools: N/A
Server-1: PipeWire v: 0.3.85 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Realtek vendor: Lenovo driver: rtw89_8852be v: kernel pcie: gen: 1
speed: 2.5 GT/s lanes: 1 port: 3000 bus-ID: 03:00.0 chip-ID: 10ec:b852
class-ID: 0280
IF: wlp3s0 state: up mac: <filter>
Bluetooth:
Device-1: Realtek Bluetooth Radio driver: btusb v: 0.8 type: USB rev: 1.0
speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-10:4 chip-ID: 0bda:4853
class-ID: e001 serial: <filter>
Report: btmgmt ID: hci0 rfk-id: 7 state: up address: <filter> bt-v: 5.3
lmp-v: 12 status: discoverable: no pairing: no class-ID: 7c010c
Drives:
Local Storage: total: 476.94 GiB used: 45.48 GiB (9.5%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Western Digital model: WD PC
SN740 SDDPMQD-512G-1101 size: 476.94 GiB block-size: physical: 512 B
logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
fw-rev: 73110001 temp: 36.9 C scheme: GPT
Partition:
ID-1: / raw-size: 60 GiB size: 60 GiB (100.00%) used: 13.35 GiB (22.3%)
fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
ID-2: /boot/efi raw-size: 100 MiB size: 96 MiB (96.00%)
used: 35.9 MiB (37.3%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
ID-3: /home raw-size: 60 GiB size: 60 GiB (100.00%)
used: 13.35 GiB (22.3%) fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
ID-4: /var/log raw-size: 60 GiB size: 60 GiB (100.00%)
used: 13.35 GiB (22.3%) fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
ID-5: /var/tmp raw-size: 60 GiB size: 60 GiB (100.00%)
used: 13.35 GiB (22.3%) fs: btrfs dev: /dev/nvme0n1p7 maj-min: 259:7
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 15.35 GiB used: 4 MiB (0.0%) priority: 100
comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 12 dev: /dev/zram0
Sensors:
Src: /sys System Temperatures: cpu: 57.0 C mobo: N/A
Fan Speeds (rpm): N/A
Info:
Processes: 346 Uptime: 9h 3m wakeups: 4 Memory: total: 16 GiB note: est.
available: 15.35 GiB used: 9.61 GiB (62.6%) Init: systemd v: 254
default: graphical tool: systemctl Compilers: gcc: 13.2.1 Packages:
pm: pacman pkgs: 1410 libs: 411 tools: octopi,pamac,paru Shell: fish
v: 3.6.1 running-in: konsole inxi: 3.3.31
Garuda (2.6.19-2):
System install date:     2023-11-12
Last full system update: 2023-11-22 ↻
Is partially upgraded:   No
Relevant software:       snapper NetworkManager dracut
Windows dual boot:       Probably (Run as root to verify)
Failed units:            systemd-vconsole-setup.service

Straight · 22 November 2023 11:33

Please reboot the system ,
and you should be able to monitor sound output easily by selecting the device and desirable settings :

harshjeet · 22 November 2023 12:02

Not showing anything

@Straight
In windows it is working fine

harshjeet · 22 November 2023 12:40

I am sorry for creating multiple thread on same topic
But pls help
I am getting sound output from both speaker and the headphone jack

Kayo · 22 November 2023 12:49

Click on the speaker icon on your top bar in plasma. It should bring up a GUI from @Straight’s post:

Click the hamburger icon next to the audio device you want sound from (red arrow in the picture points to it). Click then on “play all audio via this device”. There might be other options in there that could help as well (all depends on the device what it has for options).

harshjeet · 22 November 2023 14:43

There is no any option like this
I send u ss
Pls check

Kayo · 22 November 2023 14:46

There is, from clicking on sound icon from plasma’s system tray.
If you are missing a system tray in Plasma, add one.

harshjeet · 22 November 2023 14:50

this is what it is showing in system tray

Kayo · 22 November 2023 14:52

Good. Now follow prior suggestions related to that menu.

harshjeet · 22 November 2023 14:52

but nothing is showing as you instruct

harshjeet · 22 November 2023 14:53

i plugged the earphone but there is nothing showing the option like headphone

Kayo · 22 November 2023 14:54

check for options for speaker then. there could be additional modes for the inbuilt audio

harshjeet · 22 November 2023 14:54

this is what it is showing

harshjeet · 22 November 2023 14:55

and this is option for microphone

i don’t know why it is not recognizing the headphone

Kayo · 22 November 2023 14:57

There might be an issue with the hardware switch on that model of Laptop when it comes to Linux. I’ve tried looking into this earlier, but came up with nothing. Your search might be more fruitful though.

harshjeet · 22 November 2023 14:58

so what should i have to do now

harshjeet · 22 November 2023 14:58

in ubuntu sometimes it works sometimes it doesn’t
