Hello,

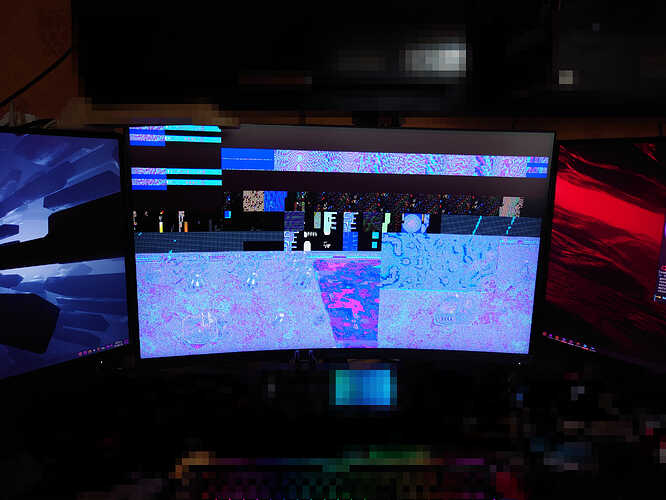

I’m having a pretty significant problem with Wayland on KDE plasma - I have two GPUs, in PCIe slots 1 (“GPU1”) and 2 (“GPU2”), and 3 displays connected to them, two (“sides”) to the GPU1 and third (“main”/“primary”/“center”) to GPU2. The displays connected to GPU1 work fine, but the one connected to the GPU2 some time ago was showing a black screen, but now it usually looks like some sort of graphical memory dump (different on every session). The windows that are supposed to be on that screen do work, and can be moved around and/or interacted with. The fact that I can actually move cursor over that glitchy mess (and it reacts to the windows that are supposed to appear there) makes it quite cursed.
(I was actually playing Beyond All Reason on Windows, and you can see some game stuff in the glitches)
However the displays work (mostly) fine with X11 session.
Something I found that might be useful, with boot process - I managed to configure my BIOS to turn on one of the displays connected to the each of the GPUs. However, the GPU that has the display with grub is then the one that works in the OS. Between grub and log-in, the displays connected to that GPU (usually GPU1) work fine, while the other one(s) turn on, but only show graphical glitches or remain black. At login screen, the ones connected to the working GPU show login screen, but other(s) turn off. They come back after logon, but, with Wayland, they show the glitchy mess, while on X11, they work fine. I tried reinstalling the drivers in the garuda settings hardware manager (and force-reinstalled explicitly with mhwd), but this seems to have had zero effect on anything.
Found this on this forums:
And this seems to be the exact issue I’m having, but the “solution” is apparently wrong?..:
Right now I am confused… Am I just waiting for the “wayland now works with multiple GPUs” update, or are my drivers busted, or do I have to load some module early in the initramfs (how? (attempt at using dracut (after finding out that Garuda is not using mkinitcpio) failed)), or some other problem?..
Part of the reason for posting this is just to make some more noise about this problem, but ideally… Is there a solution, that isn’t basically “just use X11”? I am getting choppy movement on X11 that is quite the eyesore, while the buttery smoothness of Wayland at 120Hz is mesmerizing, even when just dragging windows around.
This is the correct inxi, this time
sudo garuda-inxi
[sudo] password for [redacted username]:
System:
Kernel: 6.10.10-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 14.2.1
clocksource: tsc avail: hpet,acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=dce9a305-635c-4c6b-856f-79a5114c2f5e rw rootflags=subvol=@
loglevel=3 ibt=off nvidia-drm.modeset=1
Desktop: KDE Plasma v: 6.1.5 tk: Qt v: N/A wm: kwin_wayland
tools: xscreensaver,xscreensaver-systemd dm: SDDM Distro: Garuda
base: Arch Linux
Machine:
Type: Desktop Mobo: ASUSTeK model: ROG STRIX Z370-E GAMING v: Rev X.0x
serial: <filter> part-nu: SKU uuid: c71b6314-4309-3709-41c8-2cfda17157e1
UEFI: American Megatrends v: 3005 date: 09/30/2021
Battery:
ID-1: hidpp_battery_0 charge: 100% condition: N/A volts: 4.2 min: N/A
model: Logitech G903 LIGHTSPEED Wireless Gaming Mouse w/ HERO type: N/A
serial: <filter> status: full
CPU:
Info: model: Intel Core i7-8700K socket: LGA1151 bits: 64 type: MT MCP
arch: Coffee Lake gen: core 8 level: v3 note: check built: 2018
process: Intel 14nm family: 6 model-id: 0x9E (158) stepping: 0xA (10)
microcode: 0xF8
Topology: cpus: 1x dies: 1 clusters: 6 cores: 6 threads: 12 tpc: 2
smt: enabled cache: L1: 384 KiB desc: d-6x32 KiB; i-6x32 KiB L2: 1.5 MiB
desc: 6x256 KiB L3: 12 MiB desc: 1x12 MiB
Speed (MHz): avg: 1300 min/max: 800/4900 base/boost: 3700/8300 scaling:
driver: intel_pstate governor: powersave volts: 1.1 V ext-clock: 100 MHz
cores: 1: 1300 2: 1300 3: 1300 4: 1300 5: 1300 6: 1300 7: 1300 8: 1300
9: 1300 10: 1300 11: 1300 12: 1300 bogomips: 88796
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
Vulnerabilities: <filter>
Graphics:
Device-1: Intel CoffeeLake-S GT2 [UHD Graphics 630] vendor: ASUSTeK
driver: i915 v: kernel arch: Gen-9.5 process: Intel 14nm built: 2016-20
ports: active: none empty: DP-5, HDMI-A-5, HDMI-A-6, HDMI-A-7
bus-ID: 00:02.0 chip-ID: 8086:3e92 class-ID: 0380
Device-2: NVIDIA GP102 [GeForce GTX 1080 Ti] vendor: ASUSTeK
driver: nvidia v: 560.35.03 alternate: nouveau,nvidia_drm non-free: 550.xx+
status: current (as of 2024-09; EOL~2026-12-xx) arch: Pascal code: GP10x
process: TSMC 16nm built: 2016-2021 pcie: gen: 3 speed: 8 GT/s lanes: 8
link-max: lanes: 16 ports: active: none off: DP-1,DP-2
empty: DVI-D-1,HDMI-A-1,HDMI-A-2 bus-ID: 01:00.0 chip-ID: 10de:1b06
class-ID: 0300
Device-3: NVIDIA GP102 [GeForce GTX 1080 Ti] vendor: ASUSTeK
driver: nvidia v: 560.35.03 alternate: nouveau,nvidia_drm non-free: 550.xx+
status: current (as of 2024-09; EOL~2026-12-xx) arch: Pascal code: GP10x
process: TSMC 16nm built: 2016-2021 pcie: gen: 3 speed: 8 GT/s lanes: 8
link-max: lanes: 16 ports: active: none off: DP-3,DP-4
empty: DVI-D-2,HDMI-A-3,HDMI-A-4 bus-ID: 02:00.0 chip-ID: 10de:1b06
class-ID: 0300
Device-4: Valve 3D Camera driver: uvcvideo type: USB rev: 3.2
speed: 5 Gb/s lanes: 1 mode: 3.2 gen-1x1 bus-ID: 2-6.1:3 chip-ID: 28de:2400
class-ID: 0e02 serial: <filter>
Display: unspecified server: X.Org v: 24.1.2 with: Xwayland v: 24.1.2
compositor: kwin_wayland driver: X: loaded: modesetting,nvidia
alternate: fbdev,intel,nouveau,nv,vesa dri: iris
gpu: nvidia,nvidia-nvswitch display-ID: :1 screens: 1
Screen-1: 0 s-res: 7680x1440 s-dpi: 96 s-size: 2032x381mm (80.00x15.00")
s-diag: 2067mm (81.39")
Monitor-1: DP-1 pos: right res: 2560x1440 hz: 120 dpi: 109
size: 597x336mm (23.5x13.23") diag: 685mm (26.97") modes: N/A
Monitor-2: DP-2 pos: left res: 2560x1440 hz: 120 dpi: 109
size: 597x336mm (23.5x13.23") diag: 685mm (26.97") modes: N/A
Monitor-3: DP-4 pos: primary,center res: 2560x1440 hz: 165 dpi: 93
size: 697x392mm (27.44x15.43") diag: 800mm (31.48") modes: N/A
API: EGL v: 1.5 hw: drv: intel iris drv: nvidia platforms: device: 0
drv: nvidia device: 1 drv: nvidia device: 4 drv: iris device: 5 drv: swrast
gbm: drv: nvidia surfaceless: drv: nvidia x11: drv: nvidia
inactive: wayland,device-2,device-3
API: OpenGL v: 4.6.0 compat-v: 4.5 vendor: nvidia mesa v: 560.35.03
glx-v: 1.4 direct-render: yes renderer: NVIDIA GeForce GTX 1080 Ti/PCIe/SSE2
memory: 10.74 GiB
API: Vulkan v: 1.3.295 layers: 7 device: 0 type: discrete-gpu name: NVIDIA
GeForce GTX 1080 Ti driver: nvidia v: 560.35.03 device-ID: 10de:1b06
surfaces: xcb,xlib device: 1 type: discrete-gpu name: NVIDIA GeForce GTX
1080 Ti driver: nvidia v: 560.35.03 device-ID: 10de:1b06 surfaces: N/A
Audio:
Device-1: Intel 200 Series PCH HD Audio vendor: ASUSTeK
driver: snd_hda_intel v: kernel alternate: snd_soc_avs bus-ID: 00:1f.3
chip-ID: 8086:a2f0 class-ID: 0403
Device-2: NVIDIA GP102 HDMI Audio vendor: ASUSTeK driver: snd_hda_intel
v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 8 link-max: lanes: 16
bus-ID: 01:00.1 chip-ID: 10de:10ef class-ID: 0403
Device-3: NVIDIA GP102 HDMI Audio vendor: ASUSTeK driver: snd_hda_intel
v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 8 link-max: lanes: 16
bus-ID: 02:00.1 chip-ID: 10de:10ef class-ID: 0403
Device-4: Valve VR Radio driver: cdc_acm,hid-generic,usbhid type: USB
rev: 2.0 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-6.3.2:8
chip-ID: 28de:2102 class-ID: 0a00 serial: <filter>
Device-5: Valve VR Radio & HMD Mic
driver: hid-generic,snd-usb-audio,usbhid type: USB rev: 2.0 speed: 12 Mb/s
lanes: 1 mode: 1.1 bus-ID: 1-6.3.3:10 chip-ID: 28de:2102 class-ID: 0102
serial: <filter>
Device-6: Kingston HyperX QuadCast S
driver: hid-generic,snd-usb-audio,usbhid type: USB rev: 1.1 speed: 12 Mb/s
lanes: 1 mode: 1.1 bus-ID: 3-1.4.4.1:10 chip-ID: 0951:171d class-ID: 0300
serial: <filter>
API: ALSA v: k6.10.10-zen1-1-zen status: kernel-api with: aoss
type: oss-emulator tools: N/A
Server-1: PipeWire v: 1.2.5 status: n/a (root, process) with:
1: pipewire-pulse status: active 2: wireplumber status: active
3: pipewire-alsa type: plugin 4: pw-jack type: plugin
tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Intel Ethernet I219-V vendor: ASUSTeK driver: e1000e v: kernel
port: N/A bus-ID: 00:1f.6 chip-ID: 8086:15b8 class-ID: 0200
IF: enp0s31f6 state: up speed: 100 Mbps duplex: full mac: <filter>
Device-2: Realtek RTL8822BE 802.11a/b/g/n/ac WiFi adapter vendor: ASUSTeK
driver: rtw_8822be v: N/A modules: rtw88_8822be pcie: gen: 1 speed: 2.5 GT/s
lanes: 1 port: c000 bus-ID: 05:00.0 chip-ID: 10ec:b822 class-ID: 0280
IF: wlp5s0 state: up mac: <filter>
Info: services: NetworkManager, smbd, systemd-timesyncd, wpa_supplicant
Bluetooth:
Device-1: ASUSTek Bluetooth Radio driver: btusb v: 0.8 type: USB rev: 1.1
speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-7:3 chip-ID: 0b05:185c
class-ID: e001 serial: <filter>
Report: btmgmt ID: hci0 rfk-id: 0 state: up address: <filter> bt-v: 4.2
lmp-v: 8 status: discoverable: no pairing: no class-ID: 6c0104
Drives:
Local Storage: total: 5 TiB used: 124.62 GiB (2.4%)
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Samsung model: SSD 960 EVO 500GB
size: 465.76 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
lanes: 4 tech: SSD serial: <filter> fw-rev: 3B7QCXE7 temp: 44.9 C
scheme: GPT
SMART: yes health: PASSED on: 4y 117d 17h cycles: 431
read-units: 408,118,810 [208 TB] written-units: 116,922,758 [59.8 TB]
ID-2: /dev/sda maj-min: 8:0 vendor: Samsung model: SSD 860 EVO 1TB
family: based SSDs size: 931.51 GiB block-size: physical: 512 B
logical: 512 B sata: 3.1 speed: 6.0 Gb/s tech: SSD serial: <filter>
fw-rev: 1B6Q temp: 27 C scheme: GPT
SMART: yes state: enabled health: PASSED on: 6y 167d 4h cycles: 430
written: 10.3 TiB
ID-3: /dev/sdb maj-min: 8:16 vendor: Seagate model: ST2000DX002-2DV164
family: FireCuda 3.5 size: 1.82 TiB block-size: physical: 4096 B
logical: 512 B sata: 3.1 speed: 6.0 Gb/s tech: HDD rpm: 7200
serial: <filter> fw-rev: CC41 temp: 44 C scheme: GPT
SMART: yes state: enabled health: PASSED on: 6y 166d 15h cycles: 430
read: 201.18 TiB written: 6.48 TiB Pre-Fail: attribute: Spin_Retry_Count
value: 100 worst: 100 threshold: 97
ID-4: /dev/sdc maj-min: 8:32 vendor: Western Digital
model: WD20SDRW-11VUUS0 size: 1.82 TiB block-size: physical: 4096 B
logical: 512 B type: USB rev: 3.1 spd: 5 Gb/s lanes: 1 mode: 3.2 gen-1x1
sata: 3.1 speed: 6.0 Gb/s tech: HDD rpm: 5400 serial: <filter>
fw-rev: 1026 drive-rev: 01.01A01 temp: 40 C scheme: GPT
SMART: yes state: enabled health: PASSED on: 1y 30d 11h cycles: 155
Partition:
ID-1: / raw-size: 120.03 GiB size: 120.03 GiB (100.00%)
used: 36.85 GiB (30.7%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p7
maj-min: 259:7
ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
used: 588 KiB (0.2%) fs: vfat block-size: 512 B dev: /dev/nvme0n1p8
maj-min: 259:8
ID-3: /home raw-size: 200.32 GiB size: 200.32 GiB (100.00%)
used: 87.77 GiB (43.8%) fs: btrfs block-size: 4096 B dev: /dev/sda3
maj-min: 8:3
ID-4: /var/log raw-size: 120.03 GiB size: 120.03 GiB (100.00%)
used: 36.85 GiB (30.7%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p7
maj-min: 259:7
ID-5: /var/tmp raw-size: 120.03 GiB size: 120.03 GiB (100.00%)
used: 36.85 GiB (30.7%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p7
maj-min: 259:7
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 31.21 GiB used: 0 KiB (0.0%) priority: 100
comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 12 dev: /dev/zram0
ID-2: swap-2 type: partition size: 31.3 GiB used: 0 KiB (0.0%)
priority: -2 dev: /dev/nvme0n1p6 maj-min: 259:6
Sensors:
System Temperatures: cpu: 33.0 C mobo: N/A
Fan Speeds (rpm): N/A
Info:
Memory: total: 32 GiB available: 31.21 GiB used: 4.71 GiB (15.1%)
Processes: 358 Power: uptime: 8m states: freeze,mem,disk suspend: deep
avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
suspend, test_resume image: 12.43 GiB services: org_kde_powerdevil,
power-profiles-daemon, upowerd Init: systemd v: 256 default: graphical
tool: systemctl
Packages: pm: pacman pkgs: 2143 libs: 595 tools: octopi,pamac,paru
Compilers: clang: 18.1.8 gcc: 14.2.1 Shell: garuda-inxi (sudo) default: Bash
v: 5.2.32 running-in: konsole inxi: 3.3.36
Garuda (2.6.26-1):
System install date: 2024-04-25
Last full system update: 2024-09-28
Is partially upgraded: No
Relevant software: snapper NetworkManager dracut nvidia-dkms
Windows dual boot: Yes
Failed units:
