USB HDD not auto mounting

I have a Seagate 4 TB external hardisk, which was working fine till recently the hard disk is shown under lsusb but not mounted or shown in Dolphin File Manager. My Garuda-inxi is given below:

System:
Kernel: 6.15.1-zen1-2-zen arch: x86_64 bits: 64 compiler: gcc v: 15.1.1
clocksource: tsc avail: hpet,acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=c989771e-a3b1-4bb9-bfea-d251f83250fe rw rootflags=subvol=@
quiet loglevel=3 ibt=off
Desktop: KDE Plasma v: 6.3.5 tk: Qt v: N/A info: frameworks v: 6.14.0
wm: kwin_wayland vt: 1 dm: SDDM Distro: Garuda base: Arch Linux
Machine:
Type: Desktop Mobo: ASUSTeK model: PRIME A320M-K v: Rev X.0x
serial: <superuser required> part-nu: SKU uuid: <superuser required>
UEFI: American Megatrends v: 5603 date: 10/14/2020
CPU:
Info: model: AMD Athlon 200GE with Radeon Vega Graphics bits: 64
type: MT MCP arch: Zen level: v3 note: check built: 2017-19 process: GF 14nm
family: 0x17 (23) model-id: 0x11 (17) stepping: 0 microcode: 0x8101016
Topology: cpus: 1x dies: 1 clusters: 1 cores: 2 threads: 4 tpc: 2
smt: enabled cache: L1: 192 KiB desc: d-2x32 KiB; i-2x64 KiB L2: 1024 KiB
desc: 2x512 KiB L3: 4 MiB desc: 1x4 MiB
Speed (MHz): avg: 3200 min/max: 1600/3200 boost: enabled scaling:
driver: acpi-cpufreq governor: performance cores: 1: 3200 2: 3200 3: 3200
4: 3200 bogomips: 25552
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
Vulnerabilities: <filter>
Graphics:
Device-1: Advanced Micro Devices [AMD/ATI] Raven Ridge [Radeon Vega Series
/ Radeon Mobile Series] vendor: ASUSTeK PRIME driver: amdgpu v: kernel
arch: GCN-5 code: Vega process: GF 14nm built: 2017-20 pcie: gen: 3
speed: 8 GT/s lanes: 16 ports: active: HDMI-A-1 empty: DP-1
bus-ID: 07:00.0 chip-ID: 1002:15dd class-ID: 0300 temp: 59.0 C
Display: wayland server: X.org v: 1.21.1.16 with: Xwayland v: 24.1.6
compositor: kwin_wayland driver: X: loaded: amdgpu unloaded: modesetting
alternate: fbdev,vesa dri: radeonsi gpu: amdgpu display-ID: 0
Monitor-1: HDMI-A-1 model: LG (GoldStar) FULL HD built: 2016 res:
mode: 1920x1080 hz: 50 scale: 100% (1) dpi: 102 gamma: 1.2
size: 480x270mm (18.9x10.63") diag: 551mm (21.7") ratio: 16:9 modes:
max: 1920x1080 min: 720x400
API: EGL v: 1.5 hw: drv: amd radeonsi platforms: device: 0 drv: radeonsi
device: 1 drv: swrast gbm: drv: kms_swrast surfaceless: drv: radeonsi
wayland: drv: radeonsi x11: drv: radeonsi
API: OpenGL v: 4.6 compat-v: 4.5 vendor: amd mesa v: 25.1.3-arch1.3
glx-v: 1.4 direct-render: yes renderer: AMD Radeon Vega 3 Graphics
(radeonsi raven ACO DRM 3.63 6.15.1-zen1-2-zen) device-ID: 1002:15dd
memory: 1.95 GiB unified: no display-ID: :1.0
API: Vulkan v: 1.4.313 layers: 9 device: 0 type: integrated-gpu name: AMD
Radeon Vega 3 Graphics (RADV RAVEN) driver: mesa radv v: 25.1.3-arch1.3
device-ID: 1002:15dd surfaces: N/A device: 1 type: cpu name: llvmpipe
(LLVM 20.1.6 256 bits) driver: mesa llvmpipe v: 25.1.3-arch1.3 (LLVM
20.1.6) device-ID: 10005:0000 surfaces: N/A
Info: Tools: api: clinfo, eglinfo, glxinfo, vulkaninfo
de: kscreen-console,kscreen-doctor gpu: corectrl wl: wayland-info
x11: xdpyinfo, xprop, xrandr
Audio:
Device-1: Advanced Micro Devices [AMD/ATI] Raven/Raven2/Fenghuang HDMI/DP
Audio vendor: ASUSTeK PRIME B450M-A driver: snd_hda_intel v: kernel pcie:
gen: 3 speed: 8 GT/s lanes: 16 bus-ID: 07:00.1 chip-ID: 1002:15de
class-ID: 0403
Device-2: Advanced Micro Devices [AMD] Family 17h/19h/1ah HD Audio
vendor: ASUSTeK PRIME B450M-A driver: snd_hda_intel v: kernel pcie: gen: 3
speed: 8 GT/s lanes: 16 bus-ID: 07:00.6 chip-ID: 1022:15e3 class-ID: 0403
API: ALSA v: k6.15.1-zen1-2-zen status: kernel-api with: aoss
type: oss-emulator tools: N/A
Server-1: PipeWire v: 1.4.5 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Realtek RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet
vendor: ASUSTeK RTL8111H driver: r8169 v: kernel pcie: gen: 1
speed: 2.5 GT/s lanes: 1 port: f000 bus-ID: 05:00.0 chip-ID: 10ec:8168
class-ID: 0200
IF: enp5s0 state: down mac: <filter>
Device-2: TP-Link TL-WN722N v2/v3 [Realtek RTL8188EUS] driver: rtl8xxxu
type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-5:2
chip-ID: 2357:010c class-ID: 0000 serial: <filter>
IF: wlp1s0f0u5 state: up mac: <filter>
Info: services: NetworkManager, systemd-timesyncd, wpa_supplicant
Drives:
Local Storage: total: 223.57 GiB used: 69.92 GiB (31.3%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/sda maj-min: 8:0 vendor: AARVEX model: 240GB SSD
size: 223.57 GiB block-size: physical: 512 B logical: 512 B speed: 6.0 Gb/s
tech: SSD serial: <filter> fw-rev: 0715 scheme: GPT
Partition:
ID-1: / raw-size: 147.46 GiB size: 147.46 GiB (100.00%)
used: 39.22 GiB (26.6%) fs: btrfs dev: /dev/sda3 maj-min: 8:3
ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
used: 616 KiB (0.2%) fs: vfat dev: /dev/sda1 maj-min: 8:1
ID-3: /home raw-size: 68.98 GiB size: 68.98 GiB (100.00%)
used: 30.69 GiB (44.5%) fs: btrfs dev: /dev/sda4 maj-min: 8:4
ID-4: /var/log raw-size: 147.46 GiB size: 147.46 GiB (100.00%)
used: 39.22 GiB (26.6%) fs: btrfs dev: /dev/sda3 maj-min: 8:3
ID-5: /var/tmp raw-size: 147.46 GiB size: 147.46 GiB (100.00%)
used: 39.22 GiB (26.6%) fs: btrfs dev: /dev/sda3 maj-min: 8:3
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 5.71 GiB used: 1.57 GiB (27.4%)
priority: 100 comp: zstd avail: lzo-rle,lzo,lz4,lz4hc,deflate,842
dev: /dev/zram0
ID-2: swap-2 type: partition size: 6.84 GiB used: 0 KiB (0.0%)
priority: -2 dev: /dev/sda2 maj-min: 8:2
Sensors:
System Temperatures: cpu: 60.0 C mobo: N/A gpu: amdgpu temp: 60.0 C
Fan Speeds (rpm): N/A
Info:
Memory: total: 6 GiB available: 5.71 GiB used: 3.95 GiB (69.2%)
Processes: 345 Power: uptime: 1h 26m states: freeze,mem,disk suspend: deep
avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
suspend, test_resume image: 2.26 GiB services: org_kde_powerdevil,
power-profiles-daemon, upowerd Init: systemd v: 257 default: graphical
tool: systemctl
Packages: pm: pacman pkgs: 2269 libs: 605 tools: octopi,paru,yay
Compilers: clang: 20.1.6 gcc: 15.1.1 Shell: garuda-inxi default: fish
v: 4.0.2 running-in: konsole inxi: 3.3.38
Garuda (2.7.2-1):
System install date:     2025-01-28
Last full system update: 2025-06-11
Is partially upgraded:   No
Relevant software:       snapper NetworkManager dracut
Windows dual boot:       No/Undetected
Failed units:

Output of sudo dmesg - Hwx

kern  :info  : [  +0.293575] usb 1-6.2: new high-speed USB device number 8 using xhci_hcd
kern  :info  : [  +0.214660] usb 1-6.2: New USB device found, idVendor=0bc2, idProduct=2344, bcdDevice= 7.12
kern  :info  : [  +0.000011] usb 1-6.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
kern  :info  : [  +0.000004] usb 1-6.2: Product: Portable
kern  :info  : [  +0.000004] usb 1-6.2: Manufacturer: Seagate
kern  :info  : [  +0.000004] usb 1-6.2: SerialNumber: NACAB1CM
kern  :info  : [  +0.022232] scsi host9: uas
kern  :notice: [  +0.002168] scsi 9:0:0:0: Direct-Access     Seagate  Portable         0712 PQ: 0 ANSI: 6
kern  :notice: [Jun13 11:39] sd 9:0:0:0: [sdb] Spinning up disk...
kern  :err   : [ +21.094371] ...not responding...

The same hard disk is working fine in my laptop running Proprietary OS.

Please, post

lsblk -f
cat /etc/fstab
pacman -Qi ntfs-3g
3 Likes

lsblk -f

NAME   FSTYPE FSVER LABEL UUID                                 FSAVAIL FSUSE% MOUNTPOINTS
sda
├─sda1 vfat   FAT32       D4E8-5791                             298.8M     0% /boot/efi
├─sda2 swap   1           d8a76386-5968-4fa2-9ade-4f15e326c5d5                [SWAP]
├─sda3 btrfs              c989771e-a3b1-4bb9-bfea-d251f83250fe  106.6G    27% /var/tmp
│                                                                             /var/log
│                                                                             /var/cache
│                                                                             /srv
│                                                                             /root
│                                                                             /
└─sda4 btrfs              4e597890-450b-4f59-bbe8-274589724267   36.8G    45% /home
zram0  swap   1     zram0 a4baa317-341f-4b29-b298-30dd8b4903e5                [SWAP]

cat /etc/fstab

File: /etc/fstab
# /etc/fstab: static file system information.
#
# Use 'blkid' to print the universally unique identifier for a device; this may
# be used with UUID= as a more robust way to name devices that works even if
# disks are added and removed. See fstab(5).
#
# <file system>             <mount point>  <type>  <options>  <dump>  <pass>
UUID=D4E8-5791                            /boot/efi      vfat    defaults,umask=0077 0 2
UUID=c989771e-a3b1-4bb9-bfea-d251f83250fe /              btrfs   subvol=/@,defaults,noatime,compress=zstd 0 0
UUID=c989771e-a3b1-4bb9-bfea-d251f83250fe /root          btrfs   subvol=/@root,defaults,noatime,compress=zstd 0 0
UUID=c989771e-a3b1-4bb9-bfea-d251f83250fe /srv           btrfs   subvol=/@srv,defaults,noatime,compress=zstd 0 0
UUID=c989771e-a3b1-4bb9-bfea-d251f83250fe /var/cache     btrfs   subvol=/@cache,defaults,noatime,compress=zstd 0 0
UUID=c989771e-a3b1-4bb9-bfea-d251f83250fe /var/log       btrfs   subvol=/@log,defaults,noatime,compress=zstd 0 0
UUID=c989771e-a3b1-4bb9-bfea-d251f83250fe /var/tmp       btrfs   subvol=/@tmp,defaults,noatime,compress=zstd 0 0
UUID=4e597890-450b-4f59-bbe8-274589724267 /home          btrfs   defaults,noatime,compress=zstd 0 0
tmpfs                                     /tmp           tmpfs   defaults,noatime,mode=1777 0 0

pacman -Qi ntfs-3g

Name            : ntfs-3g
Version         : 2022.10.3-2
Description     : NTFS filesystem driver and utilities
Architecture    : x86_64
URL             : https://www.tuxera.com/community/open-source-ntfs-3g/
Licenses        : GPL2
Groups          : None
Provides        : ntfsprogs
Depends On      : util-linux  fuse2
Optional Deps   : None
Required By     : None
Optional For    : dracut  kpmcore  libblockdev-fs
Conflicts With  : ntfsprogs
Replaces        : ntfsprogs
Installed Size  : 1620.74 KiB
Packager        : T.J. Townsend <blakkheim@archlinux.org>
Build Date      : Tue 29 Apr 2025 04:28:57 AM IST
Install Date    : Thu 01 May 2025 10:19:33 PM IST
Install Reason  : Explicitly installed
Install Script  : No
Validated By    : Signature

lsusb

Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 002: ID 2357:010c TP-Link TL-WN722N v2/v3 [Realtek RTL8188EUS]
Bus 001 Device 009: ID 1a40:0101 Terminus Technology Inc. Hub
Bus 001 Device 010: ID 062a:4c01 MosArt Semiconductor Corp. 2,4Ghz Wireless Transceiver [for Delux M618 Plus Wireless Vertical Mouse]
Bus 001 Device 011: ID 0bc2:2344 Seagate RSS LLC Portable
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub```

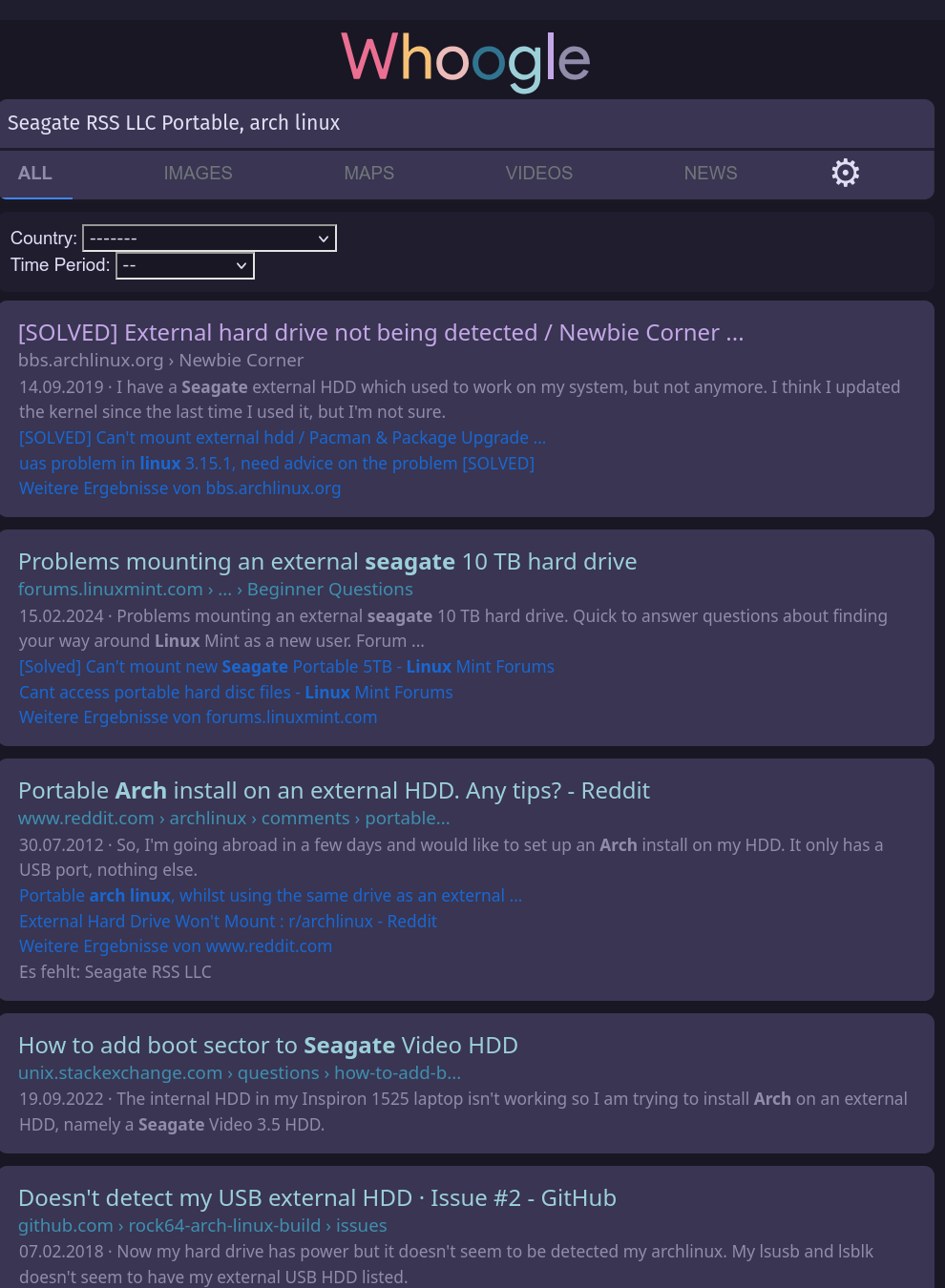

Maybe [SOLVED] External hard drive not being detected / Newbie Corner / Arch Linux Forums

Or check more with Whoogle :slight_smile:

2 Likes

:frowning: just found a detailed error message form dmesg -Hxw

kern  :info  : [  +0.294613] usb 1-6.2: new high-speed USB device number 11 using xhci_hcd
kern  :info  : [  +0.216592] usb 1-6.2: New USB device found, idVendor=0bc2, idProduct=2344, bcdDevice= 7.12
kern  :info  : [  +0.000008] usb 1-6.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
kern  :info  : [  +0.000004] usb 1-6.2: Product: Portable
kern  :info  : [  +0.000003] usb 1-6.2: Manufacturer: Seagate
kern  :info  : [  +0.000004] usb 1-6.2: SerialNumber: NACAB1CM
kern  :info  : [  +0.019186] scsi host9: uas
kern  :notice: [  +0.001613] scsi 9:0:0:0: Direct-Access     Seagate  Portable         0712 PQ: 0 ANSI: 6
kern  :notice: [Jun13 15:57] sd 9:0:0:0: [sdb] Spinning up disk...
kern  :err   : [ +21.081571] ...not responding...
kern  :info  : [Jun13 16:01] sd 9:0:0:0: [sdb] Read Capacity(16) failed: Result: hostbyte=DID_OK driverbyte=DRIVER_OK
kern  :info  : [  +0.000010] sd 9:0:0:0: [sdb] Sense Key : Not Ready [current]
kern  :info  : [  +0.000004] sd 9:0:0:0: [sdb] Add. Sense: Logical unit is in process of becoming ready
kern  :info  : [ +50.120015] sd 9:0:0:0: [sdb] tag#26 uas_eh_abort_handler 0 uas-tag 1 inflight: CMD
kern  :info  : [  +0.000009] sd 9:0:0:0: [sdb] tag#26 CDB: Read Capacity(10) 25 00 00 00 00 00 00 00 00 00
kern  :info  : [  +0.009978] scsi host9: uas_eh_device_reset_handler start
kern  :info  : [  +0.170067] usb 1-6.2: reset high-speed USB device number 11 using xhci_hcd
kern  :info  : [  +0.210359] scsi host9: uas_eh_device_reset_handler success
kern  :info  : [Jun13 16:02] sd 9:0:0:0: [sdb] tag#26 uas_eh_abort_handler 0 uas-tag 1 inflight: CMD
kern  :info  : [  +0.000009] sd 9:0:0:0: [sdb] tag#26 CDB: Test Unit Ready 00 00 00 00 00 00
kern  :info  : [  +0.000004] scsi host9: uas_eh_device_reset_handler start
kern  :info  : [  +0.176998] usb 1-6.2: reset high-speed USB device number 11 using xhci_hcd
kern  :info  : [  +0.208052] scsi host9: uas_eh_device_reset_handler success
kern  :info  : [  +0.000010] sd 9:0:0:0: Device offlined - not ready after error recovery
kern  :err   : [  +0.000028] sd 9:0:0:0: rejecting I/O to offline device
kern  :info  : [  +0.000009] sd 9:0:0:0: [sdb] Read Capacity(10) failed: Result: hostbyte=DID_NO_CONNECT driverbyte=DRIVER_OK
kern  :notice: [  +0.000004] sd 9:0:0:0: [sdb] Sense not available.
kern  :notice: [  +0.000009] sd 9:0:0:0: [sdb] 0 512-byte logical blocks: (0 B/0 B)
kern  :notice: [  +0.000003] sd 9:0:0:0: [sdb] 0-byte physical blocks
kern  :warn  : [  +0.000011] sd 9:0:0:0: [sdb] Test WP failed, assume Write Enabled
kern  :err   : [  +0.000006] sd 9:0:0:0: [sdb] Asking for cache data failed
kern  :warn  : [  +0.000003] sd 9:0:0:0: [sdb] Assuming drive cache: write through
kern  :warn  : [  +0.000010] sd 9:0:0:0: [sdb] Preferred minimum I/O size 4096 bytes not a multiple of physical block size (0 bytes)
kern  :warn  : [  +0.000004] sd 9:0:0:0: [sdb] Optimal transfer size 33553920 bytes not a multiple of physical block size (0 bytes)
kern  :notice: [  +0.001120] sd 9:0:0:0: [sdb] Attached SCSI disk

We used to use the usb - storage module to access the USB storge uas is causing a lot of trouble…:frowning:

You could try to deactivate UAS for the device. To do so boot with the kernel option
usb-storage.quirks=0bc2:2344:u
or create the file disable-seagate-uas.conf in /etc/modprobe.d
which contains
options usb-storage quirks=0bc2:2344:u

EDIT: I´m not sure but maybe you need a dracut-rebuild after this.

1 Like

I tried the above hack,still the uas driver is loading. What to do… :frowning:

Have you used your trusted search engine in the meantime?

If so, let us know exactly what you have already tried.
Have you rebuilt the kernel?

Further help:

2 Likes

I am recompiling the kernel as we speak, i have removed the uas module from the kernel build.

I would first test alternate kernels such as linux-lts, linux-hardened, linux, or the linux-mainline kernel.

You stated the drive was working correctly up until recently.

Have you tested attaching the USB drive during a live Garuda boot session? It might be a good idea to test the drive using an Ubuntu live boot disk as well.

You stated that the drive will not “auto-mount”, but have you tested other methods?

Will the drive mount manually using a terminal or TTY?

Will the drive mount properly using either a systemd mount unit or fstab, (be sure to use the nofail flag)?

Is the drive correctly detected in GParted or the KDE partition Manager? Can the drive be mounted using one of the GUI partitioning utilities above, or using Gnome Disks?

You stated that you tested the drive in your laptop, and that it was fine.

Alternatively, have you tested another drive inside your USB drive enclosure to check if the drive caddy is faulty? It has been my experience over the years that the controller in USB drive enclosures can fail quite regularly, (especially if you live in an area prone to brown/blackouts).

If you can mount the drive, be sure to run SMART diagnostic tests on the drive to make sure it does not have any issues. Report on the results.

What file system is in use on this drive? If the drive is using the NTFS file system, I would highly recommend backing up your data and formatting the drive to a native Linux file system such as ext4 or BTRFS.

Please answer all questions put to you in full providing as much information as possible. Providing minimal details when replying, tends to result in minimal assistance from forum volunteers. Please try to avoid simple yes/no replies or responses such as “tried all that, didn’t work”.

3 Likes

This topic was automatically closed 14 days after the last reply. New replies are no longer allowed.
