Hello everyone…I have been trying to experiment with the TPM 2.0 modules in my computers to see if I can make Garuda run with them. I have had little success, and I know I have asked this question before (found here). However, I keep trying to fight with it and have no success.

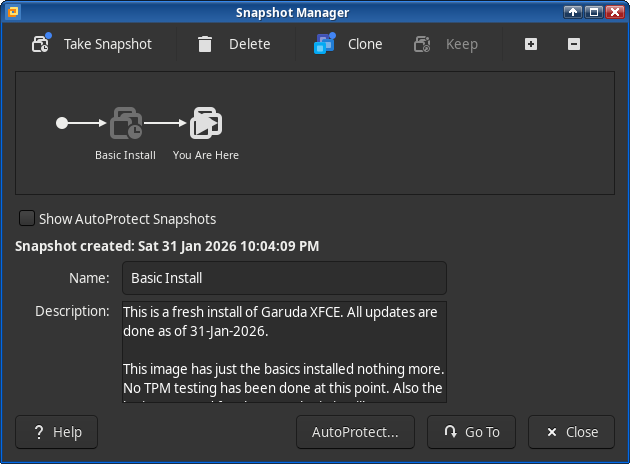

So, to prevent me from blowing everything up, I have built a virtual machine to try and perfect the process and add it to my Joplin notes before I make things so much more worse for myself. And, if somehow it doesn’t work out well for me after following instructions, then I have made an image where I can just simply reset the process again and again and so fourth as you can see here…
Now, lets get the information that is expected of me out there first:
╭─fenris@tpm in ~ as 🧙 took 0s
╰─λ sudo garuda-inxi
System:
Kernel: 6.18.7-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 15.2.1
clocksource: tsc avail: hpet,acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=877b7c0d-e9fb-425a-b9d7-216cbda173df rw rootflags=subvol=@
quiet rd.luks.uuid=0f6e405e-edf6-4b98-bc2d-9f8230d0795a loglevel=3
Desktop: Xfce v: 4.20.1 tk: Gtk v: 3.24.51 wm: xfwm4 v: 4.20.0
with: xfce4-panel tools: xfce4-screensaver dm: LightDM v: 1.32.0
Distro: Garuda base: Arch Linux
Machine:
Type: Vmware System: VMware product: VMware20,1 v: N/A serial: <filter>
Chassis: No Enclosure type: 1 serial: N/A
Mobo: Intel model: 440BX Desktop Reference Platform serial: N/A
uuid: cf154d56-6383-30ad-3479-ea6a36b5e79a Firmware: UEFI vendor: VMware
v: VMW201.00V.24866131.B64.2507211911 date: 07/21/2025
CPU:
Info: model: AMD Ryzen 9 6900HX with Radeon Graphics bits: 64 type: MCP SMP
arch: Zen 3+ gen: 3 level: v3 note: check built: 2022 process: TSMC n6 (7nm)
family: 0x19 (25) model-id: 0x44 (68) stepping: 1 microcode: 0xA404108
Topology: cpus: 2x dies: 1 clusters: 1 cores: 4 smt: <unsupported> cache:
L1: 2x 256 KiB (512 KiB) desc: d-4x32 KiB; i-4x32 KiB L2: 2x 2 MiB (4 MiB)
desc: 4x512 KiB L3: 2x 16 MiB (32 MiB) desc: 1x16 MiB
Speed (MHz): avg: 3294 min/max: N/A base/boost: 3141/3141 volts: 3.3 V
cores: 1: 3294 2: 3294 3: 3294 4: 3294 5: 3294 6: 3294 7: 3294 8: 3294
bogomips: 52700
Flags-basic: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3
Vulnerabilities: <filter>
Graphics:
Device-1: VMware SVGA II Adapter driver: vmwgfx v: 2.21.0.0 ports:
active: Virtual-1 empty: Virtual-2, Virtual-3, Virtual-4, Virtual-5,
Virtual-6, Virtual-7, Virtual-8 bus-ID: 00:0f.0 chip-ID: 15ad:0405
class-ID: 0300
Display: x11 server: X.Org v: 21.1.21 compositor: xfwm4 v: 4.20.0 driver:
X: loaded: modesetting unloaded: fbdev alternate: vesa,vmware gpu: vmwgfx
display-ID: :0.0 screens: 1
Screen-1: 0 s-res: 1904x887 s-dpi: 96 s-size: 503x234mm (19.80x9.21")
s-diag: 555mm (21.84")
Monitor-1: Virtual-1 res: mode: 1904x887 hz: 60 scale: 100% (1) size: N/A
modes: max: 1904x887 min: 640x480
API: OpenGL Message: Unable to show GL data. glxinfo is missing.
Info: Tools: de: xfce4-display-settings x11: xdpyinfo, xprop, xrandr
Audio:
Device-1: Ensoniq ES1371/ES1373 / Creative Labs CT2518 driver: snd_ens1371
v: kernel bus-ID: 02:02.0 chip-ID: 1274:1371 class-ID: 0401
API: ALSA v: k6.18.7-zen1-1-zen status: kernel-api tools: N/A
Server-1: PipeWire v: 1.4.10 status: n/a (root, process) with:
1: pipewire-pulse status: active 2: wireplumber status: active
3: pipewire-alsa type: plugin 4: pw-jack type: plugin
tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Intel 82371AB/EB/MB PIIX4 ACPI vendor: VMware Virtual Machine
type: network bridge driver: N/A modules: i2c_piix4 port: N/A
bus-ID: 00:07.3 chip-ID: 8086:7113 class-ID: 0680
Device-2: Intel 82545EM Gigabit Ethernet vendor: VMware PRO/1000 MT
Single Port driver: e1000 v: kernel port: 1040 bus-ID: 02:01.0
chip-ID: 8086:100f class-ID: 0200
IF: ens33 state: up speed: 1000 Mbps duplex: full mac: <filter>
Info: services: NetworkManager, smbd, systemd-timesyncd
Drives:
Local Storage: total: 36 GiB used: 8.92 GiB (24.8%)
SMART Message: Required tool smartctl not installed. Check --recommends
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: VMware model: Virtual NVMe Disk
VMware NVME size: 36 GiB block-size: physical: 512 B logical: 512 B
speed: 128 Gb/s lanes: 32 tech: SSD serial: <filter> fw-rev: 1.4
temp: 29.9 C scheme: GPT
Partition:
ID-1: / raw-size: 35.7 GiB size: 35.7 GiB (100.00%) used: 8.92 GiB (25.0%)
fs: btrfs block-size: 4096 B dev: /dev/dm-0 maj-min: 253:0
mapped: luks-0f6e405e-edf6-4b98-bc2d-9f8230d0795a
ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
used: 984 KiB (0.3%) fs: vfat block-size: 512 B dev: /dev/nvme0n1p1
maj-min: 259:1
ID-3: /home raw-size: 35.7 GiB size: 35.7 GiB (100.00%)
used: 8.92 GiB (25.0%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
maj-min: 253:0 mapped: luks-0f6e405e-edf6-4b98-bc2d-9f8230d0795a
ID-4: /var/log raw-size: 35.7 GiB size: 35.7 GiB (100.00%)
used: 8.92 GiB (25.0%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
maj-min: 253:0 mapped: luks-0f6e405e-edf6-4b98-bc2d-9f8230d0795a
ID-5: /var/tmp raw-size: 35.7 GiB size: 35.7 GiB (100.00%)
used: 8.92 GiB (25.0%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
maj-min: 253:0 mapped: luks-0f6e405e-edf6-4b98-bc2d-9f8230d0795a
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 7.71 GiB used: 0 KiB (0.0%) priority: 100
comp: zstd avail: lzo-rle,lzo,lz4,lz4hc,deflate,842 dev: /dev/zram0
Sensors:
Src: lm-sensors+/sys Message: No sensor data found using /sys/class/hwmon
or lm-sensors.
Info:
Memory: total: 8 GiB available: 7.71 GiB used: 1.52 GiB (19.7%)
Processes: 378 Power: uptime: 11m states: freeze,standby,mem,disk
suspend: s2idle avail: shallow wakeups: 0 hibernate: platform
avail: shutdown, reboot, suspend, test_resume image: 3.07 GiB
services: upowerd,xfce4-power-manager Init: systemd v: 259
default: graphical tool: systemctl
Packages: pm: pacman pkgs: 1238 libs: 355 tools: paru Compilers:
gcc: 15.2.1 Shell: Bash (sudo) v: 5.3.9 running-in: xfce4-terminal
inxi: 3.3.40
Garuda (2.12.3-2):
System install date: 2026-01-31
Garuda release: 250801
Last full system update: 2026-01-31
Is partially upgraded: No
Relevant software: snapper NetworkManager dracut garuda-hardware-profile-standard garuda-hardware-profile-standard-x11 garuda-hardware-profile-vm
Windows dual boot: No/Undetected
Failed units:
--- System Health Check Report ---
25/26 checks run in 2.64 seconds ⌛
Powered by garuda-health 🦅
✅ System health check passed. No issues found.
╭─fenris@tpm in ~ as 🧙 took 7s
╰─λ
What I have been trying to follow: systemd-cryptenroll
I have also been trying to follow this video here: https://www.youtube.com/watch?v=rcXV3MNwaao
So far, I was able to get to this stage here:
╭─fenris@tpm in ~ as 🧙 took 1m28s
╰─λ systemd-cryptenroll --tpm2-device=list
PATH DEVICE DRIVER
/dev/tpmrm0 VMW0004:00 tpm_tis
╭─fenris@tpm in ~ as 🧙 took 0s
╰─λ systemd-cryptenroll --tpm2-device=/dev/tpmrm0
Block device backing /var/ is not a LUKS2 device.
╭─fenris@tpm in ~ as 🧙 took 0s
[🔴] ×
So what I am trying to do is, unlock the system with a password like you normally do when you encrypt Linux. However, I would like it to also use what ever is coming off that TPM to add to the unlocking process.

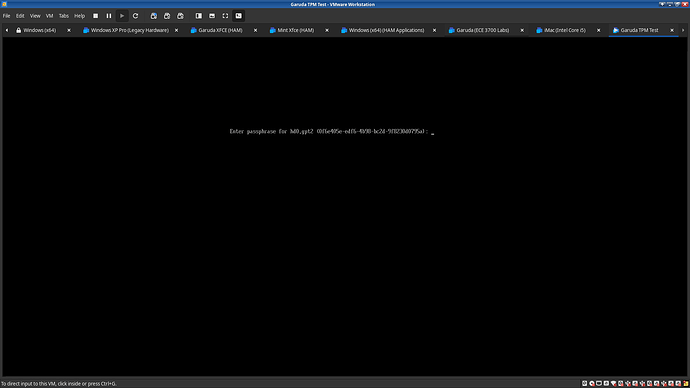

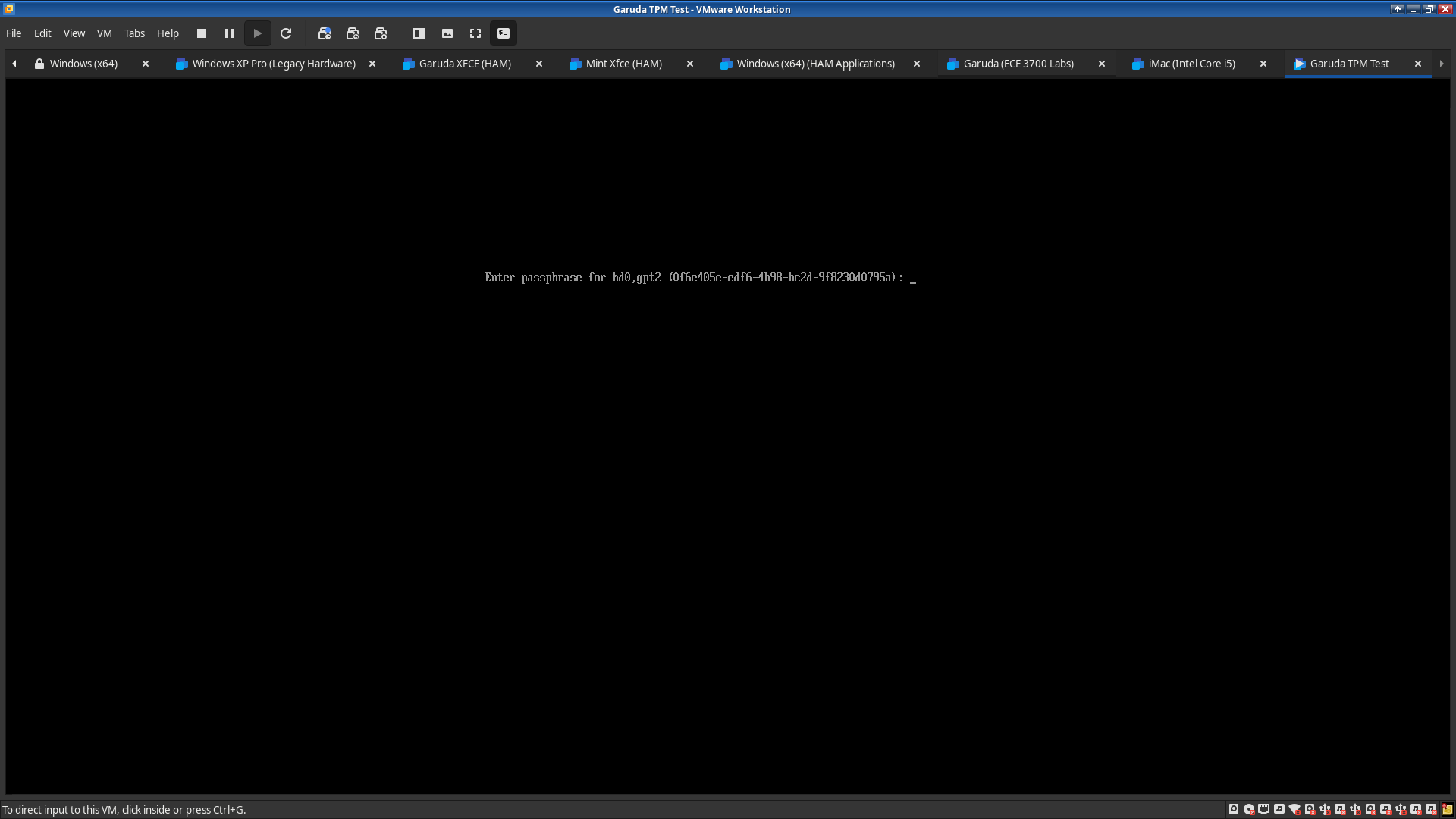

To make it clear, I’m looking to use --tpm2-with-pin=BOOL so TPM 2.0 keys + a password is used to unlock the drive and continue to load Garuda. What I’m expecting to see is the following in the image below, but also uses TPM 2.0 keys…
Does anyone know how to properly do this in Garuda or could please guide me through the process?
Thank you
