Hello friends,i recently installed the latest version of Garuda Linux,and installed a private graphics driver, but there is a problem. Need help !!!!
When run "nvidia-settings", get the error: NVIDIA driver is not loaded
"NVIDIA X Server Settings" also fails to startup
(The effect of the system animation is not good)
inxi -Fxxxza
System: Kernel: 5.11.2-zen1-1-zen x86_64 bits: 64 compiler: gcc v: 10.2.1
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=9d946538-012a-4bfd-92cf-55c25a2d0eee rw rootflags=subvol=@ quiet splash
rd.udev.log_priority=3 vt.global_cursor_default=0 systemd.unified_cgroup_hierarchy=1
loglevel=3
Desktop: KDE Plasma 5.21.2 tk: Qt 5.15.2 info: latte-dock wm: kwin_x11 dm: SDDM
Distro: Garuda Linux
Machine: Type: Laptop System: Dell product: XPS 15 7590 v: N/A serial: <filter> Chassis: type: 10
serial: <filter>
Mobo: Dell model: 0VYV0G v: A00 serial: <filter> UEFI: Dell v: 1.8.1 date: 07/03/2020
Battery: ID-1: BAT0 charge: 81.3 Wh condition: 81.3/97.0 Wh (84%) volts: 12.6/11.4
model: LGC-LGC8.33 DELL 5XJ2898 type: Li-ion serial: <filter> status: Full
CPU: Info: 6-Core model: Intel Core i7-9750H bits: 64 type: MT MCP arch: Kaby Lake note: check
family: 6 model-id: 9E (158) stepping: A (10) microcode: DE L2 cache: 12 MiB
flags: avx avx2 lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx bogomips: 62399
Speed: 3789 MHz min/max: 800/4500 MHz Core speeds (MHz): 1: 3789 2: 4053 3: 4099 4: 3980
5: 4058 6: 4035 7: 3963 8: 4082 9: 4096 10: 4089 11: 4088 12: 4106
Vulnerabilities: Type: itlb_multihit status: KVM: VMX disabled
Type: l1tf mitigation: PTE Inversion; VMX: conditional cache flushes, SMT vulnerable
Type: mds mitigation: Clear CPU buffers; SMT vulnerable
Type: meltdown mitigation: PTI
Type: spec_store_bypass
mitigation: Speculative Store Bypass disabled via prctl and seccomp
Type: spectre_v1 mitigation: usercopy/swapgs barriers and __user pointer sanitization
Type: spectre_v2 mitigation: Full generic retpoline, IBPB: conditional, IBRS_FW, STIBP:
conditional, RSB filling
Type: srbds mitigation: Microcode
Type: tsx_async_abort status: Not affected
Graphics: Device-1: Intel UHD Graphics 630 vendor: Dell driver: i915 v: kernel bus ID: 00:02.0
chip ID: 8086:3e9b class ID: 0300
Device-2: NVIDIA TU117M [GeForce GTX 1650 Mobile / Max-Q] vendor: Dell driver: N/A
alternate: nouveau bus ID: 01:00.0 chip ID: 10de:1f91 class ID: 0302
Device-3: Microdia Integrated_Webcam_HD type: USB driver: uvcvideo bus ID: 1-12:4
chip ID: 0c45:6723 class ID: 0e02
Display: x11 server: X.Org 1.20.10 compositor: kwin_x11 driver: loaded: intel
unloaded: modesetting alternate: fbdev,vesa display ID: :0 screens: 1
Screen-1: 0 s-res: 3840x2160 s-dpi: 240 s-size: 406x228mm (16.0x9.0")
s-diag: 466mm (18.3")
Monitor-1: eDP1 res: 3840x2160 hz: 60 dpi: 287 size: 340x190mm (13.4x7.5")
diag: 389mm (15.3")
OpenGL: renderer: Mesa Intel UHD Graphics 630 (CFL GT2) v: 4.6 Mesa 20.3.4
direct render: Yes
Audio: Device-1: Intel Cannon Lake PCH cAVS vendor: Dell driver: snd_hda_intel v: kernel
alternate: snd_soc_skl,snd_sof_pci bus ID: 00:1f.3 chip ID: 8086:a348 class ID: 0403
Sound Server: ALSA v: k5.11.2-zen1-1-zen
Network: Device-1: Intel Wi-Fi 6 AX200 vendor: Rivet Networks driver: iwlwifi v: kernel port: 3000
bus ID: 3b:00.0 chip ID: 8086:2723 class ID: 0280
IF: wlp59s0 state: up mac: <filter>
Bluetooth: Device-1: Intel AX200 Bluetooth type: USB driver: btusb v: 0.8 bus ID: 1-4:2
chip ID: 8087:0029 class ID: e001
Message: Required tool hciconfig not installed. Check --recommends
Drives: Local Storage: total: 953.87 GiB used: 21.53 GiB (2.3%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Micron model: 2200S NVMe 1024GB
size: 953.87 GiB block size: physical: 512 B logical: 512 B speed: 31.6 Gb/s lanes: 4
rotation: SSD serial: <filter> rev: 22001060 temp: 38.9 C scheme: GPT
Partition: ID-1: / raw size: 200 GiB size: 200 GiB (100.00%) used: 16.52 GiB (8.3%) fs: btrfs
dev: /dev/nvme0n1p5 maj-min: 259:5
ID-2: /boot/efi raw size: 680 MiB size: 676 MiB (99.41%) used: 97.2 MiB (14.4%) fs: vfat
dev: /dev/nvme0n1p1 maj-min: 259:1
ID-3: /home raw size: 285 GiB size: 285 GiB (100.00%) used: 4.91 GiB (1.7%) fs: btrfs
dev: /dev/nvme0n1p7 maj-min: 259:7
ID-4: /var/log raw size: 200 GiB size: 200 GiB (100.00%) used: 16.52 GiB (8.3%) fs: btrfs
dev: /dev/nvme0n1p5 maj-min: 259:5
ID-5: /var/tmp raw size: 200 GiB size: 200 GiB (100.00%) used: 16.52 GiB (8.3%) fs: btrfs
dev: /dev/nvme0n1p5 maj-min: 259:5
Swap: Kernel: swappiness: 10 (default 60) cache pressure: 75 (default 100)
ID-1: swap-1 type: partition size: 27 GiB used: 0 KiB (0.0%) priority: -2
dev: /dev/nvme0n1p6 maj-min: 259:6
ID-2: swap-2 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram0
ID-3: swap-3 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram1
ID-4: swap-4 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram2
ID-5: swap-5 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram3
ID-6: swap-6 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram4
ID-7: swap-7 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram5
ID-8: swap-8 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram6
ID-9: swap-9 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767 dev: /dev/zram7
ID-10: swap-10 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767
dev: /dev/zram8
ID-11: swap-11 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767
dev: /dev/zram9
ID-12: swap-12 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767
dev: /dev/zram10
ID-13: swap-13 type: zram size: 2.58 GiB used: 0 KiB (0.0%) priority: 32767
dev: /dev/zram11
Sensors: System Temperatures: cpu: 85.0 C mobo: N/A
Fan Speeds (RPM): cpu: 4288 fan-2: 4302
Info: Processes: 349 Uptime: 32m wakeups: 1931 Memory: 31 GiB used: 6.21 GiB (20.0%)
Init: systemd v: 247 Compilers: gcc: 10.2.0 clang: 11.1.0 Packages: pacman: 1774 lib: 457
Shell: Zsh v: 5.8 running in: konsole inxi: 3.3.01
1 Like
You have to start it with
prime-run nvidia-settings
1 Like
Check your bios
And see if it has gpu switching options
Try changing them
The check
1 Like
XuJinNet:
driver: N/A
Hmm it looks odd
Have you upgraded your system ?
If not upgrade your system first
sudo pacman -Syyuu
1 Like
Yes, I have upgraded the system to the latest before install the NVIDIA Driver.
And i checked the bios, There is no switch for GPU.
Do i need to try this?
Check logs
journalctl -b -p3 --no-pager --no-hostname
bash -c 'for Xlog in $(ls /var/log/Xorg.?.log); do echo -e "\n" $Xlog ; grep -E "(EE)|(WW)|failed|Time" $Xlog ; done'
Also post this file's contents to bin.garudalinux.org
/var/log/Xorg.0.log
1 Like
Could you try:
sudo modprobe -v nvidia
and paste the output (as text!).
1 Like
jonathon:
sudo modprobe -v nvidia
modprobe: FATAL: Module nvidia not found in directory /lib/modules/5.11.2-zen1-1-zen
journalctl -b -p3 --no-pager --no-hostname
-- Journal begins at Sun 2021-03-07 00:36:14 CST, ends at Sun 2021-03-07 00:37:48 CST. --
3月 07 00:36:14 systemd[1]: Failed to start Setup Virtual Console.
3月 07 00:36:14 systemd-vconsole-setup[324]: /usr/bin/loadkeys failed with exit status 1.
3月 07 00:36:14 systemd-modules-load[321]: Failed to find module 'nvidia-drm'
3月 07 00:36:14 systemd-modules-load[321]: Failed to find module 'nvidia-uvm'
3月 07 00:36:16 kernel: psmouse serio1: synaptics: Advanced gesture mode init failed: -5
3月 07 00:36:16 kernel: psmouse serio1: synaptics: Unable to initialize device.
3月 07 00:36:20 nmbd[3309]: [2021/03/07 00:36:20.191917, 0] ../../lib/util/become_daemon.c:147(daemon_status)
3月 07 00:36:20 nmbd[3309]: daemon_status: daemon 'nmbd' : No local IPv4 non-loopback interfaces available, waiting for interface ...
3月 07 00:36:20 nmbd[3309]: [2021/03/07 00:36:20.191988, 0] ../../source3/nmbd/nmbd_subnetdb.c:253(create_subnets)
3月 07 00:36:20 nmbd[3309]: NOTE: NetBIOS name resolution is not supported for Internet Protocol Version 6 (IPv6).
3月 07 00:36:23 sddm-helper[3328]: gkr-pam: unable to locate daemon control file
3月 07 00:36:25 kwin_x11[3618]: kwin_xkbcommon: XKB: Couldn't process include statement for 'cn(\0)'
3月 07 00:36:25 kwin_x11[3618]: kwin_xkbcommon: XKB: Abandoning symbols file "(unnamed)"
3月 07 00:36:25 kwin_x11[3618]: kwin_xkbcommon: XKB: Failed to compile xkb_symbols
3月 07 00:36:25 kwin_x11[3618]: kwin_xkbcommon: XKB: Failed to compile keymap
3月 07 00:36:25 systemd-coredump[3796]: [🡕] Process 3771 (paleofetch) of user 1000 dumped core.
Stack trace of thread 3771:
#0 0x00007f656bc8005e __strncpy_avx2 (libc.so.6 + 0x16305e)
#1 0x000055de3ea28537 n/a (paleofetch + 0x3537)
#2 0x000055de3ea2719f n/a (paleofetch + 0x219f)
#3 0x00007f656bb44b25 __libc_start_main (libc.so.6 + 0x27b25)
#4 0x000055de3ea273ce n/a (paleofetch + 0x23ce)
3月 07 00:36:25 kup-daemon[3777]: kup.daemon: "Kup未启用,请从系统设置模块中启用。可以运行kcmshell5 kup以进行此操作。"
3月 07 00:36:27 bluetoothd[568]: profiles/input/device.c:ioctl_is_connected() Can't get HIDP connection info
3月 07 00:36:27 bluetoothd[568]: profiles/input/device.c:ioctl_is_connected() Can't get HIDP connection info
3月 07 00:36:30 nmbd[3309]: [2021/03/07 00:36:30.192668, 0] ../../lib/util/become_daemon.c:135(daemon_ready)
3月 07 00:36:30 nmbd[3309]: daemon_ready: daemon 'nmbd' finished starting up and ready to serve connections
3月 07 00:36:30 smbd[5432]: [2021/03/07 00:36:30.381509, 0] ../../lib/util/become_daemon.c:135(daemon_ready)
3月 07 00:36:30 smbd[5432]: daemon_ready: daemon 'smbd' finished starting up and ready to serve connections
3月 07 00:36:32 bluetoothd[568]: profiles/input/device.c:control_connect_cb() connect to 34:88:5D:6F:7D:71: Host is down (112)
3月 07 00:36:37 bluetoothd[568]: profiles/input/device.c:control_connect_cb() connect to 34:88:5D:86:99:65: Host is down (112)
3月 07 00:36:53 nmbd[3309]: [2021/03/07 00:36:53.409961, 0] ../../source3/nmbd/nmbd_become_lmb.c:397(become_local_master_stage2)
3月 07 00:36:53 nmbd[3309]: *****
3月 07 00:36:53 nmbd[3309]:
3月 07 00:36:53 nmbd[3309]: Samba name server XJ-GARUDA is now a local master browser for workgroup WORKGROUP on subnet 192.168.3.114
3月 07 00:36:53 nmbd[3309]:
3月 07 00:36:53 nmbd[3309]: *****
The file`s contents:
/var/log/Xorg.0.log
Evidence is the same as other issues where BIOS is auto hiding dGPU from the system.
I suggest you ask this at your Laptop’s vendor Support forum.
How can I disable “auto-enable/disable dGPU”?
2 Likes
sudo dkms autoinstall
Kernel preparation unnecessary for this kernel. Skipping...
Building module:
cleaning build area...
'make' -j12 IGNORE_PREEMPT_RT_PRESENCE=1 NV_EXCLUDE_BUILD_MODULES='__EXCLUDE_MODULES' KERNEL_UNAME=5.11.2-zen1-1-zen IGNORE_CC_MISMATCH='__IGNORE_CC_MISMATCH' modules...........
cleaning build area...
Kernel cleanup unnecessary for this kernel. Skipping...
DKMS: build completed.
nvidia.ko.xz:
Running module version sanity check.
- Original module
- No original module exists within this kernel
- Installation
- Installing to /usr/lib/modules/5.11.2-zen1-1-zen/kernel/drivers/video/
nvidia-uvm.ko.xz:
Running module version sanity check.
- Original module
- No original module exists within this kernel
- Installation
- Installing to /usr/lib/modules/5.11.2-zen1-1-zen/kernel/drivers/video/
nvidia-modeset.ko.xz:
Running module version sanity check.
- Original module
- No original module exists within this kernel
- Installation
- Installing to /usr/lib/modules/5.11.2-zen1-1-zen/kernel/drivers/video/
nvidia-drm.ko.xz:
Running module version sanity check.
- Original module
- No original module exists within this kernel
- Installation
- Installing to /usr/lib/modules/5.11.2-zen1-1-zen/kernel/drivers/video/
depmod.....
DKMS: install completed.
1 Like

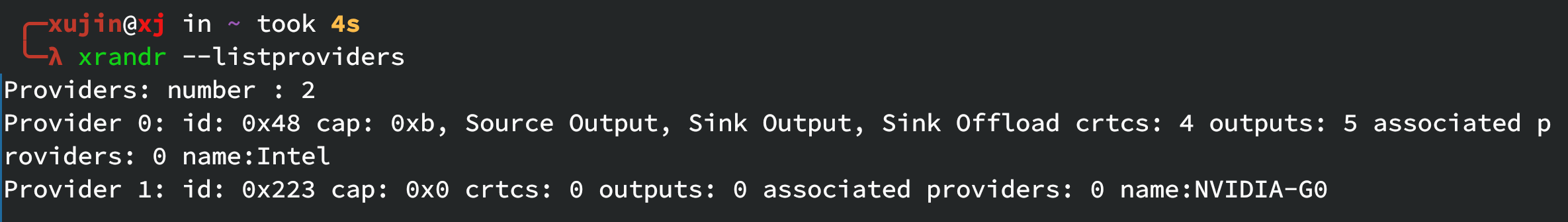

@jonathon Thank you very much! The Nvidia Settings can be opend, How to verify that the Nvidia graphics card can work normally, please ? @jonathon @petsam @librewish
Please, don’t post images for just text output. It is explained numerous times.
Manually, start apps with prime-run <app>
.
Else, the system would automatically use nvidia for resource hungry apps.
Check again inxi -Gxxxza
2 Likes
Sorry, I will post text from now on, thanks
inxi -Gxxxza
Graphics: Device-1: Intel UHD Graphics 630 vendor: Dell driver: i915 v: kernel bus ID: 00:02.0
chip ID: 8086:3e9b class ID: 0300
Device-2: NVIDIA TU117M [GeForce GTX 1650 Mobile / Max-Q] vendor: Hewlett-Packard
driver: nvidia v: 460.56 alternate: nouveau,nvidia_drm bus ID: 01:00.0 chip ID: 10de:1f91
class ID: 0302
Device-3: Microdia Integrated_Webcam_HD type: USB driver: uvcvideo bus ID: 1-12:4
chip ID: 0c45:6723 class ID: 0e02
Display: x11 server: X.Org 1.20.10 compositor: kwin_x11 driver: loaded: intel,nvidia
unloaded: modesetting,nouveau alternate: fbdev,nv,vesa display ID: :0 screens: 1
Screen-1: 0 s-res: 3840x2160 s-dpi: 240 s-size: 406x228mm (16.0x9.0")
s-diag: 466mm (18.3")
Monitor-1: eDP1 res: 3840x2160 hz: 60 dpi: 287 size: 340x190mm (13.4x7.5")
diag: 389mm (15.3")
OpenGL: renderer: Mesa Intel UHD Graphics 630 (CFL GT2) v: 4.6 Mesa 20.3.4
direct render: Yes
Is this a success ?
prime-run google-chrome-stable
[511428:1:0307/194511.720679:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
[511473:1:0307/194511.720739:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
[511344:1:0307/194511.720753:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
[513190:513190:0307/194511.890799:ERROR:gles2_cmd_decoder_passthrough.cc(1518)] GLES2DecoderPassthroughImpl: Context reset detected after MakeCurrent.
[513190:513190:0307/194511.890943:ERROR:gpu_service_impl.cc(1177)] Exiting GPU process because some drivers can't recover from errors. GPU process will restart shortly.
[511428:1:0307/194511.894050:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
[513273:513273:0307/194512.053069:ERROR:gles2_cmd_decoder_passthrough.cc(1518)] GLES2DecoderPassthroughImpl: Context reset detected after MakeCurrent.
[513273:513273:0307/194512.053217:ERROR:gpu_service_impl.cc(1177)] Exiting GPU process because some drivers can't recover from errors. GPU process will restart shortly.
[511305:7:0307/194512.055052:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
[511305:7:0307/194512.085029:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
[511521:1:0307/194513.446015:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
[510535:1:0307/194517.689156:ERROR:command_buffer_proxy_impl.cc(122)] ContextResult::kTransientFailure: Failed to send GpuChannelMsg_CreateCommandBuffer.
XuJinNet:
Is this a success ?
I can’t tell…
I think you can check in Chrome info pages about which driver/GPU is being used.
1 Like
Oh frick, I probably should have gone for this instead of giving up and switching distro. I'll test this out as well and if it works, I'm staying with Garuda again. Thanks m8!
