Razer Blade 16 (2023) no sound sof-audio

Basically, after a fresh install of Garuda, on a brand new Razer Blade 16, I have no sound. There seems to be a few topics across the internet on this. Most recommend installing sof-firmware sof-tools alsa-ucm-conf, which were already on my system. Others said to go into the alsa mixer and ensure spdif is off, devices are unmuted, volume is up, etc. I did work through each device, and all seems in order.

Thoughts?

System:
  Kernel: 6.4.9-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 13.2.1
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
    root=UUID=41f5eb93-25eb-4fff-ba55-feb3fa12557b rw rootflags=subvol=@
    quiet rd.luks.uuid=ddc3cc50-b5b5-47f9-b891-5a14c845c65f quiet
    rd.udev.log_priority=3 vt.global_cursor_default=0
    rd.luks.uuid=894b8fd8-dc83-4315-a54d-379bf1907e98
    resume=/dev/mapper/luks-894b8fd8-dc83-4315-a54d-379bf1907e98 loglevel=3
    ibt=off
  Desktop: GNOME v: 44.3 tk: GTK v: 3.24.38 wm: gnome-shell dm: GDM v: 44.1
    Distro: Garuda Linux base: Arch Linux
Machine:
  Type: Laptop System: Razer product: Blade 16 - RZ09-0483 v: 9.04
    serial: <superuser required> Chassis: type: 10 serial: <superuser required>
  Mobo: Razer model: SO690 v: 4 serial: <superuser required> UEFI: Razer
    v: 2.00 date: 04/14/2023
Battery:
  ID-1: BAT0 charge: 20.4 Wh (21.2%) condition: 96.2/95.2 Wh (101.1%)
    volts: 14.3 min: 15.4 model: Razer Blade type: Unknown serial: <filter>
    status: discharging
CPU:
  Info: model: 13th Gen Intel Core i9-13950HX bits: 64 type: MST AMCP
    arch: Raptor Lake gen: core 13 level: v3 note: check built: 2022+
    process: Intel 7 (10nm) family: 6 model-id: 0xB7 (183) stepping: 1
    microcode: 0x119
  Topology: cpus: 1x cores: 24 mt: 8 tpc: 2 st: 16 threads: 32 smt: enabled
    cache: L1: 2.1 MiB desc: d-16x32 KiB, 8x48 KiB; i-8x32 KiB, 16x64 KiB
    L2: 32 MiB desc: 8x2 MiB, 4x4 MiB L3: 36 MiB desc: 1x36 MiB
  Speed (MHz): avg: 1654 high: 2400 min/max: 800/5300:5500:4000 scaling:
    driver: intel_pstate governor: performance cores: 1: 1943 2: 800 3: 800
    4: 2400 5: 799 6: 2400 7: 800 8: 2400 9: 801 10: 801 11: 801 12: 1366
    13: 800 14: 2400 15: 837 16: 2400 17: 799 18: 798 19: 2400 20: 2400
    21: 800 22: 800 23: 2400 24: 2400 25: 2400 26: 801 27: 2400 28: 2400
    29: 2400 30: 2400 31: 2400 32: 2400 bogomips: 154828
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
  Vulnerabilities: <filter>
Graphics:
  Device-1: Intel Raptor Lake-S UHD Graphics vendor: Razer USA driver: i915
    v: kernel arch: Gen-13 process: Intel 7 (10nm) built: 2022+ ports:
    active: eDP-1 empty: DP-1,HDMI-A-1 bus-ID: 00:02.0 chip-ID: 8086:a788
    class-ID: 0300
  Device-2: NVIDIA AD106M [GeForce RTX 4070 Max-Q / Mobile]
    vendor: Razer USA driver: nvidia v: 535.86.05 alternate: nouveau,nvidia_drm
    non-free: 535.xx+ status: current (as of 2023-07) arch: Lovelace
    code: AD1xx process: TSMC n4 (5nm) built: 2022-23+ pcie: gen: 2
    speed: 5 GT/s lanes: 8 link-max: gen: 4 speed: 16 GT/s bus-ID: 01:00.0
    chip-ID: 10de:2860 class-ID: 0300
  Device-3: IMC Networks Integrated RGB Camera driver: uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-8:2 chip-ID: 13d3:5279
    class-ID: 0e02 serial: <filter>
  Display: x11 server: X.Org v: 21.1.8 with: Xwayland v: 23.1.2
    compositor: gnome-shell driver: X: loaded: modesetting,nvidia
    unloaded: nouveau alternate: fbdev,intel,nv,vesa dri: iris gpu: i915
    display-ID: :1 screens: 1
  Screen-1: 0 s-res: 1920x1200 s-dpi: 96 s-size: 508x318mm (20.00x12.52")
    s-diag: 599mm (23.6")
  Monitor-1: eDP-1 model: BOE Display 0x0b90 built: 2022 res: 1920x1200
    hz: 60 dpi: 141 gamma: 1.2 size: 345x215mm (13.58x8.46") diag: 407mm (16")
    ratio: 16:10 modes: 3840x2400
  API: OpenGL Message: Unable to show GL data. Required tool glxinfo
    missing.
Audio:
  Device-1: Intel vendor: Razer USA driver: sof-audio-pci-intel-tgl
    alternate: snd_hda_intel,snd_sof_pci_intel_tgl bus-ID: 00:1f.3
    chip-ID: 8086:7a50 class-ID: 0401
  Device-2: NVIDIA vendor: Razer USA driver: snd_hda_intel v: kernel pcie:
    gen: 2 speed: 5 GT/s lanes: 8 link-max: gen: 4 speed: 16 GT/s
    bus-ID: 01:00.1 chip-ID: 10de:22bd class-ID: 0403
  API: ALSA v: k6.4.9-zen1-1-zen status: kernel-api
    tools: alsactl,alsamixer,amixer
  Server-1: PipeWire v: 0.3.77 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Intel driver: iwlwifi v: kernel port: N/A bus-ID: 00:14.3
    chip-ID: 8086:7a70 class-ID: 0280
  IF: wlo1 state: up mac: <filter>
Bluetooth:
  Device-1: Intel driver: btusb v: 0.8 type: USB rev: 2.0 speed: 12 Mb/s
    lanes: 1 mode: 1.1 bus-ID: 1-14:4 chip-ID: 8087:0033 class-ID: e001
  Report: bt-adapter ID: hci0 rfk-id: 0 state: up address: <filter>
Drives:
  Local Storage: total: 953.87 GiB used: 298.13 GiB (31.3%)
  SMART Message: Required tool smartctl not installed. Check --recommends
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Samsung
    model: MZVL21T0HCLR-00B00 size: 953.87 GiB block-size: physical: 512 B
    logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: GXA7801Q temp: 52.9 C scheme: GPT
Partition:
  ID-1: / raw-size: 919.48 GiB size: 919.48 GiB (100.00%)
    used: 298.13 GiB (32.4%) fs: btrfs dev: /dev/dm-0 maj-min: 254:0
    mapped: luks-ddc3cc50-b5b5-47f9-b891-5a14c845c65f
  ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
    used: 720 KiB (0.2%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:1
  ID-3: /home raw-size: 919.48 GiB size: 919.48 GiB (100.00%)
    used: 298.13 GiB (32.4%) fs: btrfs dev: /dev/dm-0 maj-min: 254:0
    mapped: luks-ddc3cc50-b5b5-47f9-b891-5a14c845c65f
  ID-4: /var/log raw-size: 919.48 GiB size: 919.48 GiB (100.00%)
    used: 298.13 GiB (32.4%) fs: btrfs dev: /dev/dm-0 maj-min: 254:0
    mapped: luks-ddc3cc50-b5b5-47f9-b891-5a14c845c65f
  ID-5: /var/tmp raw-size: 919.48 GiB size: 919.48 GiB (100.00%)
    used: 298.13 GiB (32.4%) fs: btrfs dev: /dev/dm-0 maj-min: 254:0
    mapped: luks-ddc3cc50-b5b5-47f9-b891-5a14c845c65f
Swap:
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default)
  ID-1: swap-1 type: partition size: 34.08 GiB used: 0 KiB (0.0%)
    priority: -2 dev: /dev/dm-1 maj-min: 254:1
    mapped: luks-894b8fd8-dc83-4315-a54d-379bf1907e98
  ID-2: swap-2 type: zram size: 30.98 GiB used: 2.54 GiB (8.2%)
    priority: 100 dev: /dev/zram0
Sensors:
  System Temperatures: cpu: 51.0 C mobo: N/A
  Fan Speeds (RPM): N/A
Info:
  Processes: 540 Uptime: 5h 12m wakeups: 58620 Memory: total: 32 GiB
  note: est. available: 30.99 GiB used: 5.67 GiB (18.3%) Init: systemd v: 254
  default: graphical tool: systemctl Compilers: gcc: 13.2.1 Packages:
  pm: pacman pkgs: 1311 libs: 406 tools: pamac,paru Shell: Zsh v: 5.9
  running-in: gnome-terminal inxi: 3.3.28
Garuda (2.6.16-1):
  System install date:     2023-08-08
  Last full system update: 2023-08-09 ↻
  Is partially upgraded:   No
  Relevant software:       snapper NetworkManager dracut nvidia-dkms
  Windows dual boot:       No/Undetected
  Failed units:            systemd-backlight@backlight:nvidia_0.service
sudo dmesg | grep snd
Alias tip: _ dmesg | grep snd
[sudo] password for nathan_snow:
... and it used to be so popular...
[sudo] password for nathan_snow:
[    7.905978] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[    7.906000] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[    8.202741] snd_hda_intel 0000:01:00.1: enabling device (0000 -> 0002)
[    8.202986] snd_hda_intel 0000:01:00.1: Disabling MSI
[    8.203002] snd_hda_intel 0000:01:00.1: Handle vga_switcheroo audio client
[    8.452344] snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC298: line_outs=1 (0x17/0x0/0x0/0x0/0x0) type:speaker
[    8.452350] snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[    8.452352] snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[    8.452354] snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
[    8.452355] snd_hda_codec_realtek ehdaudio0D0:    inputs:
[    8.452356] snd_hda_codec_realtek ehdaudio0D0:      Mic=0x18
[    8.494382] snd_hda_codec_realtek ehdaudio0D0: ASoC: sink widget AIF1TX overwritten
[    8.494389] snd_hda_codec_realtek ehdaudio0D0: ASoC: source widget AIF1RX overwritten
sudo dmesg | grep sof
Alias tip: _ dmesg | grep sof
[    0.050625] software IO TLB: area num 32.
[    0.772753] PCI-DMA: Using software bounce buffering for IO (SWIOTLB)
[    0.772753] software IO TLB: mapped [mem 0x000000001e727000-0x0000000022727000] (64MB)
[    0.923471] integrity: Loaded X.509 cert 'Microsoft Corporation UEFI CA 2011: 13adbf4309bd82709c8cd54f316ed522988a1bd4'
[    0.923482] integrity: Loaded X.509 cert 'Microsoft Windows Production PCA 2011: a92902398e16c49778cd90f99e4f9ae17c55af53'
[    1.166991] xor: measuring software checksum speed
[    8.278981] sof-audio-pci-intel-tgl 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[    8.279002] sof-audio-pci-intel-tgl 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[    8.279012] sof-audio-pci-intel-tgl 0000:00:1f.3: enabling device (0000 -> 0002)
[    8.279173] sof-audio-pci-intel-tgl 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if 0x040100
[    8.279260] sof-audio-pci-intel-tgl 0000:00:1f.3: bound 0000:00:02.0 (ops i915_audio_component_bind_ops [i915])
[    8.285829] sof-audio-pci-intel-tgl 0000:00:1f.3: use msi interrupt mode
[    8.311162] sof-audio-pci-intel-tgl 0000:00:1f.3: hda codecs found, mask 5
[    8.311165] sof-audio-pci-intel-tgl 0000:00:1f.3: using HDA machine driver skl_hda_dsp_generic now
[    8.311167] sof-audio-pci-intel-tgl 0000:00:1f.3: DMICs detected in NHLT tables: 2
[    8.314101] sof-audio-pci-intel-tgl 0000:00:1f.3: Firmware info: version 2:2:0-57864
[    8.314102] sof-audio-pci-intel-tgl 0000:00:1f.3: Firmware: ABI 3:22:1 Kernel ABI 3:23:0
[    8.314105] sof-audio-pci-intel-tgl 0000:00:1f.3: unknown sof_ext_man header type 3 size 0x30
[    8.417464] sof-audio-pci-intel-tgl 0000:00:1f.3: Firmware info: version 2:2:0-57864
[    8.417468] sof-audio-pci-intel-tgl 0000:00:1f.3: Firmware: ABI 3:22:1 Kernel ABI 3:23:0
[    8.430560] sof-audio-pci-intel-tgl 0000:00:1f.3: Topology: ABI 3:22:1 Kernel ABI 3:23:0
[    8.511573] input: sof-hda-dsp Mic as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card1/input21
[    8.512204] input: sof-hda-dsp Headphone as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card1/input22
[    8.512232] input: sof-hda-dsp HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card1/input23
[    8.512419] input: sof-hda-dsp HDMI/DP,pcm=4 as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card1/input24
[    8.512475] input: sof-hda-dsp HDMI/DP,pcm=5 as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card1/input25

Oddly enough, the MIC is working, I see the input indicator moving when speaking.

Try to see if the issue persists after a restart. The symbol at the end there is saying you haven't after the update. (usually pretty important on a fresh installation's first update too)

1 Like

Still happening after a reboot.

I could be mistaken, but try pavucontrol, because it seems to have a few more configuration options.

Check that all devices are configured correctly.

I did try that one as well. Here are some of the threads I've read on this issue, to give you an idea of what I've tried.

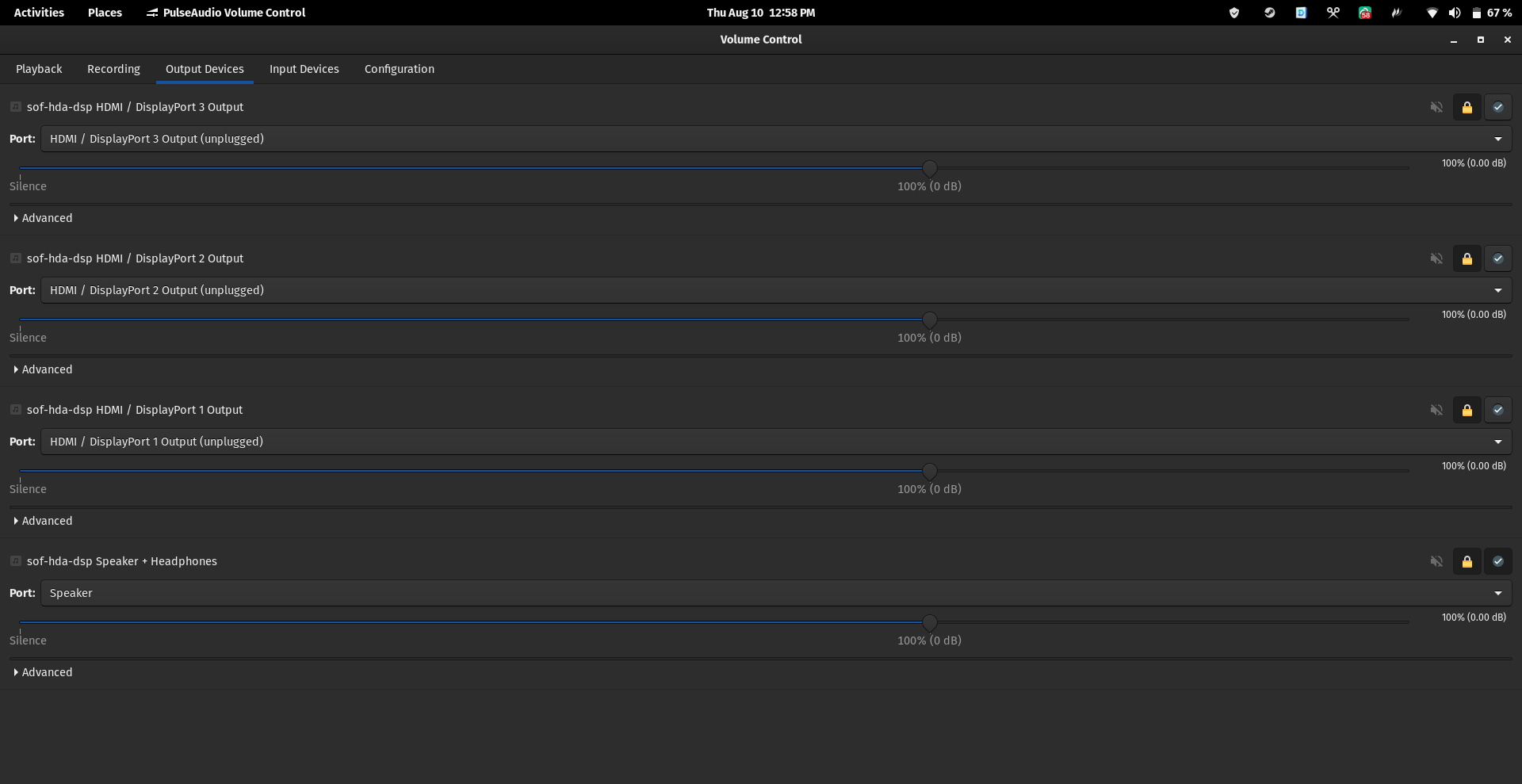

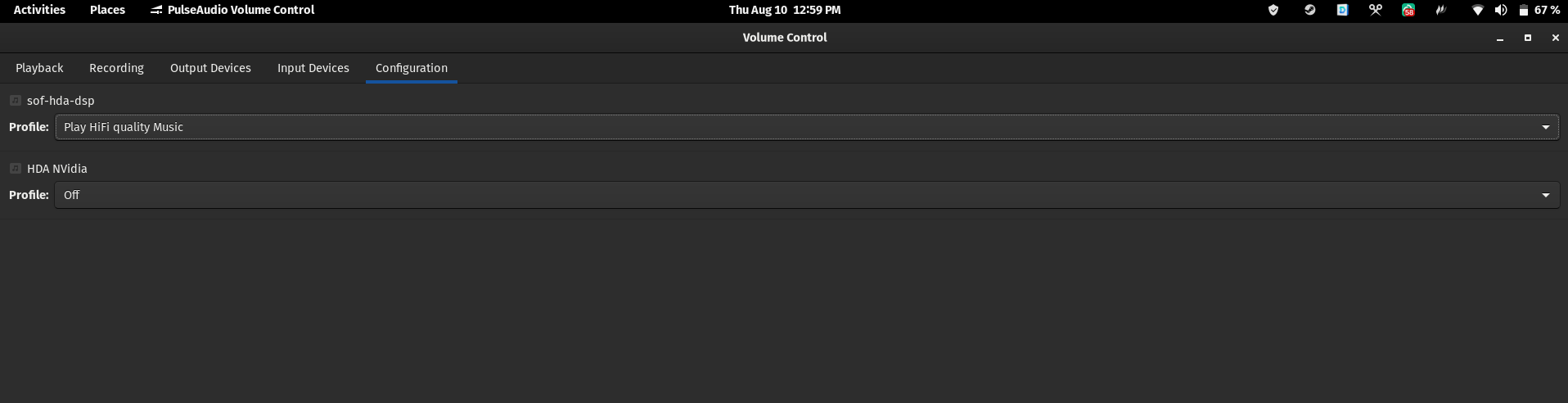

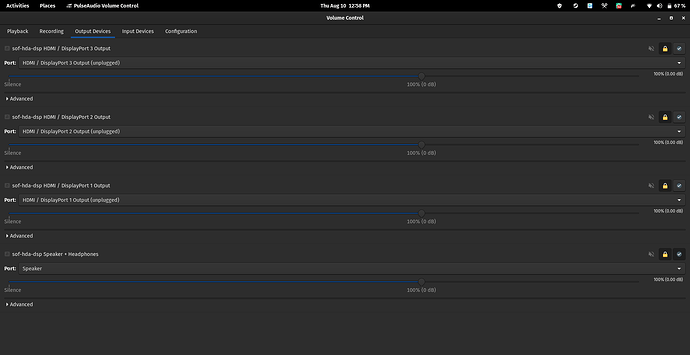

Here are screenshots of pavucontrol.

#

Also, I grabbed a headset and this is the strangest part, audio works on headphones using the 3.5mm audio jack.

This issue seems just like my own. Sound card detected but no sound / Multimedia and Games / Arch Linux Forums

That's an interesting clue. Try changing the sound card in alsamixer.

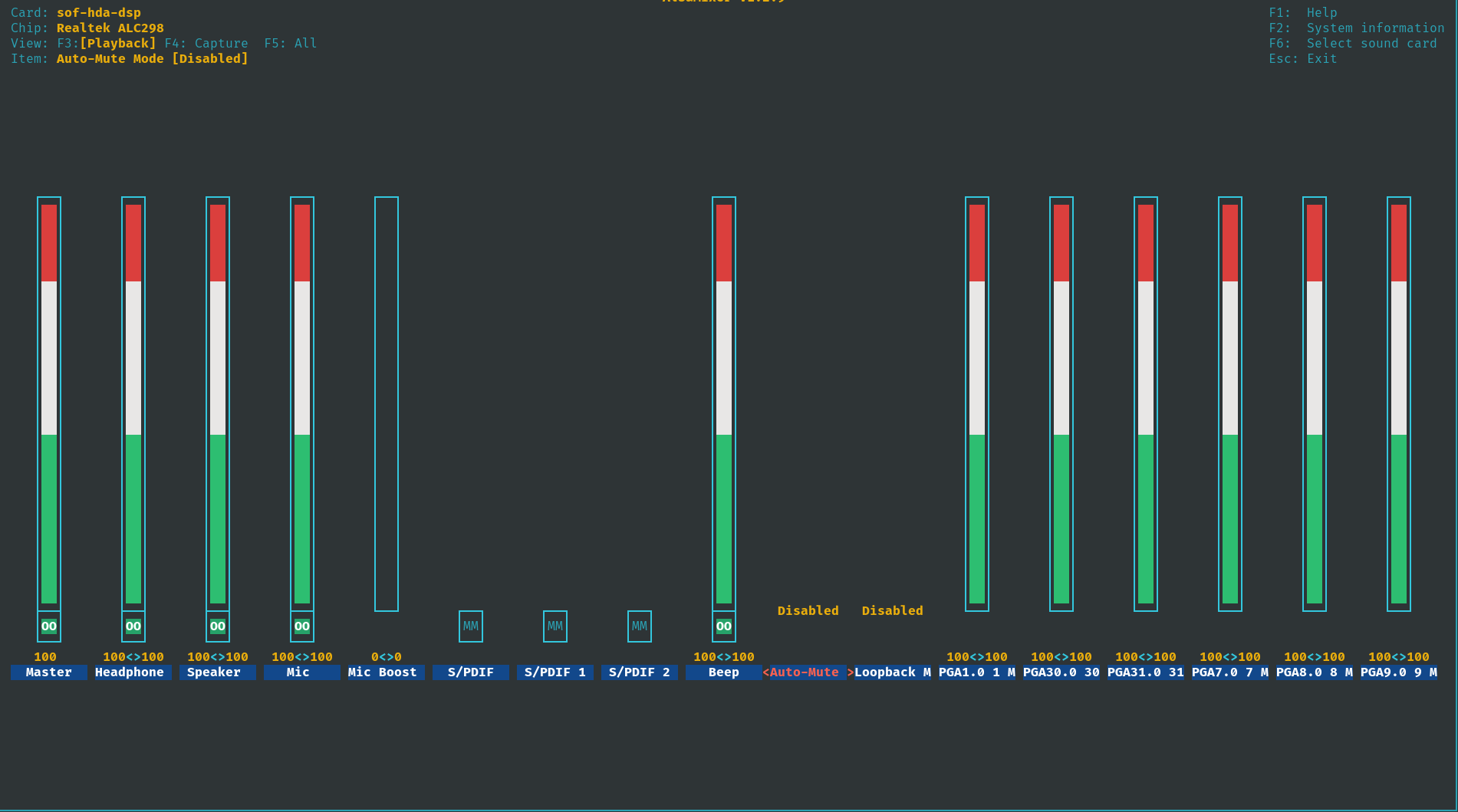

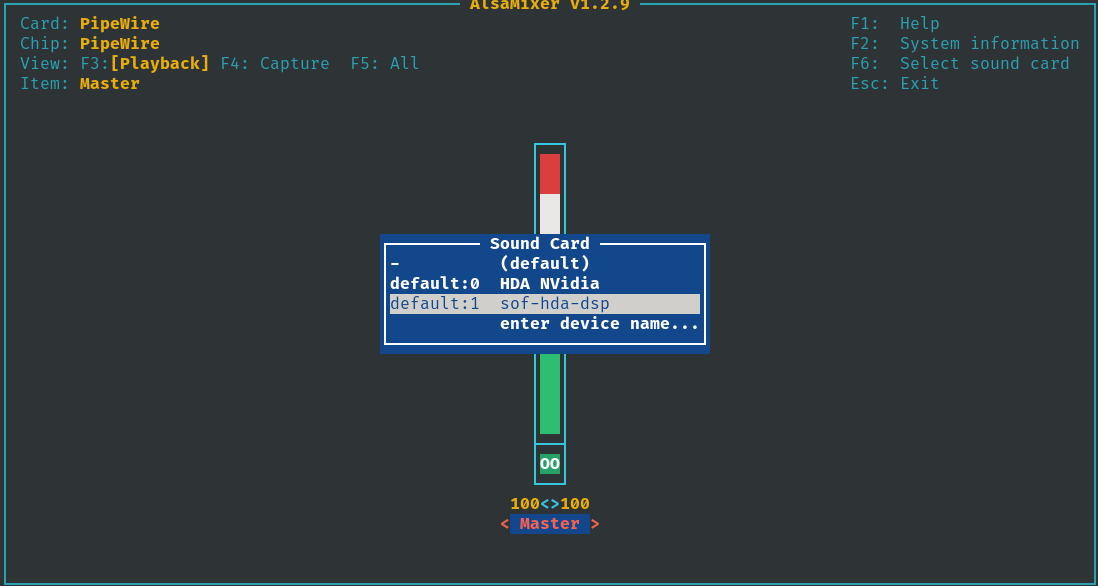

Hmm, I have a few options in alsamixer. Here are some screenshots. I've tried each of these with various settings. Right now they are on the defaults, save for the Auto-Mute on sof-hda-dsp. I read that if that is off, then it should send audio out of headphones and speaker at the same time. I was thinking, that maybe it isn't able to switch from headphones to speakers for some reason, but disabling auto-mute had no effect :frowning:
