PC is freezing after few Minutes

Issues & Assistance Newbies
1

Hi all,

after some tome without Garauda and Linux, I just tried to install again. Installation went through without no problems. But now the system is freezing completely after a few minutes.


╭─mod@LinuX in ~
╰─λ journalctl -b -p3 --no-hostname --no-pager
Jul 05 13:29:16 kernel:
Jul 05 13:29:16 kernel: hub 8-0:1.0: config failed, hub doesn't have any ports! (err -19)
Jul 05 13:29:35 30-systemd-environment-d-generator[1471]: /home/mod/.config/environment.d/firefox.conf:2: invalid variable name "env MOZ_USE_XINPUT2", ignoring.
Jul 05 13:29:35 30-systemd-environment-d-generator[1560]: /home/mod/.config/environment.d/firefox.conf:2: invalid variable name "env MOZ_USE_XINPUT2", ignoring.
Jul 05 13:29:37 bluetoothd[794]: Failed to set mode: Failed (0x03)
Jul 05 13:29:38 bluetoothd[794]: Failed to set mode: Failed (0x03)
Jul 05 13:31:04 sudo[3011]:      mod : a password is required ; TTY=pts/0 ; PWD=/home/mod ; USER=root ; COMMAND=/usr/bin/true


╭─mod@LinuX in ~ took 12ms
╰─λ garuda-inxi
System:
Kernel: 6.10.0-rc6-1-mainline arch: x86_64 bits: 64 compiler: gcc v: 14.1.1
clocksource: tsc avail: hpet,acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-mainline
root=UUID=f2b85bcb-8fa5-4fee-b97d-09e34b328843 rw rootflags=subvol=@
quiet resume=UUID=11296c47-ccf4-4c89-82fd-aee7efcec1e6 loglevel=3 ibt=off
Desktop: KDE Plasma v: 6.1.2 tk: Qt v: N/A info: frameworks v: 6.3.0
wm: kwin_x11 vt: 2 dm: SDDM Distro: Garuda base: Arch Linux
Machine:
Type: Desktop System: Gigabyte product: B650 AORUS PRO AX v: -CF
serial: <superuser required>
Mobo: Gigabyte model: B650 AORUS PRO AX v: x.x
serial: <superuser required> uuid: <superuser required> UEFI: American
Megatrends LLC. v: F23 date: 04/10/2024
Battery:
Device-1: hidpp_battery_0 model: Logitech MX Master 3 for Mac
serial: <filter> charge: 100% (should be ignored) rechargeable: yes
status: discharging
CPU:
Info: model: AMD Ryzen 7 7800X3D bits: 64 type: MT MCP arch: Zen 4 gen: 5
level: v4 note: check built: 2022+ process: TSMC n5 (5nm) family: 0x19 (25)
model-id: 0x61 (97) stepping: 2 microcode: 0xA601206
Topology: cpus: 1x cores: 8 tpc: 2 threads: 16 smt: enabled cache:
L1: 512 KiB desc: d-8x32 KiB; i-8x32 KiB L2: 8 MiB desc: 8x1024 KiB
L3: 96 MiB desc: 1x96 MiB
Speed (MHz): avg: 1431 high: 3900 min/max: 400/5050 scaling:
driver: amd-pstate-epp governor: powersave cores: 1: 400 2: 3581 3: 3501
4: 400 5: 400 6: 3817 7: 400 8: 400 9: 400 10: 400 11: 400 12: 3700
13: 400 14: 3900 15: 400 16: 400 bogomips: 134190
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
Vulnerabilities: <filter>
Graphics:
Device-1: NVIDIA AD102 [GeForce RTX 4090] vendor: Gigabyte driver: nvidia
v: 555.58.02 alternate: nouveau,nvidia_drm non-free: 550.xx+
status: current (as of 2024-06) arch: Lovelace code: AD1xx
process: TSMC n4 (5nm) built: 2022+ pcie: gen: 2 speed: 5 GT/s lanes: 16
link-max: gen: 4 speed: 16 GT/s ports: active: none off: DP-1
empty: DP-2,DP-3,HDMI-A-1 bus-ID: 01:00.0 chip-ID: 10de:2684
class-ID: 0300
Display: x11 server: X.Org v: 21.1.13 with: Xwayland v: 24.1.0
compositor: kwin_x11 driver: X: loaded: nvidia unloaded: modesetting
alternate: fbdev,nouveau,nv,vesa gpu: nvidia,nvidia-nvswitch
display-ID: :0 screens: 1
Screen-1: 0 s-res: 3840x2160 s-dpi: 106 s-size: 920x523mm (36.22x20.59")
s-diag: 1058mm (41.66")
Monitor-1: DP-1 mapped: DP-0 note: disabled model: Philips PHL 42M2N8900
serial: <filter> built: 2023 res: 3840x2160 hz: 60 dpi: 106 gamma: 1.2
size: 920x517mm (36.22x20.35") diag: 1055mm (41.5") ratio: 16:9 modes:
max: 3840x2160 min: 640x480
API: EGL v: 1.5 hw: drv: nvidia platforms: device: 0 drv: nvidia device: 2
drv: swrast gbm: drv: nvidia surfaceless: drv: nvidia x11: drv: nvidia
inactive: wayland,device-1
API: OpenGL v: 4.6.0 compat-v: 4.5 vendor: nvidia mesa v: 555.58.02
glx-v: 1.4 direct-render: yes renderer: NVIDIA GeForce RTX 4090/PCIe/SSE2
memory: 23.43 GiB
API: Vulkan v: 1.3.279 layers: 7 device: 0 type: discrete-gpu
name: NVIDIA GeForce RTX 4090 driver: nvidia v: 555.58.02
device-ID: 10de:2684 surfaces: xcb,xlib
Audio:
Device-1: NVIDIA AD102 High Definition Audio vendor: Gigabyte
driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
bus-ID: 01:00.1 chip-ID: 10de:22ba class-ID: 0403
Device-2: AMD Family 17h/19h HD Audio vendor: Gigabyte
driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
bus-ID: 11:00.6 chip-ID: 1022:15e3 class-ID: 0403
API: ALSA v: k6.10.0-rc6-1-mainline status: kernel-api tools: N/A
Server-1: PipeWire v: 1.2.0 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Intel Ethernet I225-V vendor: Gigabyte driver: igc v: kernel pcie:
gen: 2 speed: 5 GT/s lanes: 1 port: N/A bus-ID: 0c:00.0 chip-ID: 8086:15f3
class-ID: 0200
IF: enp12s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
Device-2: MEDIATEK MT7922 802.11ax PCI Express Wireless Network Adapter
driver: mt7921e v: kernel pcie: gen: 2 speed: 5 GT/s lanes: 1
bus-ID: 0d:00.0 chip-ID: 14c3:0616 class-ID: 0280
IF: wlp13s0 state: down mac: <filter>
Info: services: NetworkManager, smbd, systemd-timesyncd
Bluetooth:
Device-1: MediaTek Wireless_Device driver: btusb v: 0.8 type: USB rev: 2.1
speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9:4 chip-ID: 0e8d:0616
class-ID: e001 serial: <filter>
Report: btmgmt ID: hci0 rfk-id: 0 state: up address: <filter> bt-v: 5.2
lmp-v: 11 status: discoverable: no pairing: no class-ID: 6c0104
Drives:
Local Storage: total: 2.27 TiB used: 18.4 GiB (0.8%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/nvme0n1 maj-min: 259:2 vendor: Western Digital
model: WDS500G1X0E-00AFY0 size: 465.76 GiB block-size: physical: 512 B
logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
fw-rev: 611100WD temp: 42.9 C scheme: GPT
ID-2: /dev/nvme1n1 maj-min: 259:0 vendor: Samsung model: SSD 990 PRO with
Heatsink 2TB size: 1.82 TiB block-size: physical: 512 B logical: 512 B
speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter> fw-rev: 4B2QJXD7
temp: 39.9 C scheme: GPT
Partition:
ID-1: / raw-size: 396.82 GiB size: 396.82 GiB (100.00%)
used: 14.29 GiB (3.6%) fs: btrfs dev: /dev/nvme0n1p3 maj-min: 259:5
ID-2: /boot/efi raw-size: 600 MiB size: 598.8 MiB (99.80%)
used: 584 KiB (0.1%) fs: vfat dev: /dev/nvme0n1p1 maj-min: 259:3
ID-3: /home raw-size: 1.82 TiB size: 1.82 TiB (100.00%)
used: 4.11 GiB (0.2%) fs: btrfs dev: /dev/nvme1n1p1 maj-min: 259:1
ID-4: /var/log raw-size: 396.82 GiB size: 396.82 GiB (100.00%)
used: 14.29 GiB (3.6%) fs: btrfs dev: /dev/nvme0n1p3 maj-min: 259:5
ID-5: /var/tmp raw-size: 396.82 GiB size: 396.82 GiB (100.00%)
used: 14.29 GiB (3.6%) fs: btrfs dev: /dev/nvme0n1p3 maj-min: 259:5
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 62.44 GiB used: 0 KiB (0.0%) priority: 100
comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 16 dev: /dev/zram0
ID-2: swap-2 type: partition size: 68.36 GiB used: 0 KiB (0.0%)
priority: -2 dev: /dev/nvme0n1p2 maj-min: 259:4
Sensors:
System Temperatures: cpu: 41.2 C mobo: 34.0 C gpu: nvidia temp: 37 C
Fan Speeds (rpm): N/A gpu: nvidia fan: 0%
Info:
Memory: total: 64 GiB note: est. available: 62.44 GiB used: 3.63 GiB (5.8%)
Processes: 412 Power: uptime: 2m states: freeze,mem,disk suspend: deep
avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
suspend, test_resume image: 24.94 GiB services: org_kde_powerdevil,
power-profiles-daemon, upowerd Init: systemd v: 256 default: graphical
tool: systemctl
Packages: pm: pacman pkgs: 1654 libs: 502 tools: octopi,paru Compilers:
gcc: 14.1.1 Shell: garuda-inxi default: fish v: 3.7.1 running-in: konsole
inxi: 3.3.35
Garuda (2.6.26-1):
System install date:     2024-07-05
Last full system update: 2024-07-05
Is partially upgraded:   No
Relevant software:       snapper NetworkManager dracut nvidia-dkms
Windows dual boot:       No/Undetected
Failed units:

╭─mod@LinuX in ~ took 3s
╰─λ

I have tried to deactivate as much as possible.
And I tried to use LTS and Mainline kernel.
Switched from Wayland to X
Everything with the same result.

Sometimes after the freeze is present the System reboots, sometimes it stays like it is.

Help would be appreciated.

MOD

2

This smells like an old error with Ryzen 7000 CPUs, the exact same error description and error message was already on the wild_wild_web last year (kernel issues and non-functioning iGPU).

The iGPU is not displayed in the garuda-inxi, is the iGPU enabled in the BIOS or is it set to auto? If so, then disable it under “Integrated Graphics” and set “Initial Display Output” to PCIe 1 slot so that only the 4090 is active.

Try a BIOS update, the latest version should be F30:

This usually happens with incorrect CPU/RAM settings or a power supply that is too weak. Check all settings in the BIOS - especially vcore, P-State, C-State, timings, etc.

2 Likes
3

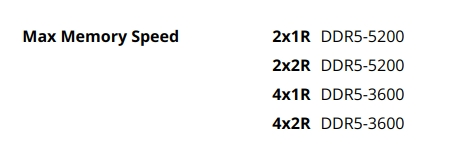

Even though 7800X3D has memory speed touted at 6000MHz as being the sweet spot, the official support is 5200MHz for 2 slot config:

One thing to also try is disable EXPO. If it fixes the freezing, you can enable it and go down with the speed until it is stable.

Of course, please follow nepti’s instructions first.

1 Like
4

Hi,
there took some time to find the time to test. In the meantime BIOS F31a was released and is installed.

EXPO1 and DRAM AutoBoost is disabled as well as the IGPU.

The rest of the BIOS is set to standard, but I will check regarding P-State and C-State, but currently I don’t know what to check and how to check, but I will try to find out.
Just some news regarding the logs here.

Jul 08 21:26:40 kernel: hub 8-0:1.0: config failed, hub doesn't have any ports! (err -19)
Jul 08 21:26:40 kernel:
Jul 08 21:26:44 systemd-coredump[790]: [🡕] Process 706 (ddcutil) of user 0 dumped core.

Stack trace of thread 706:
#0  0x000076ad72b9135c n/a (libc.so.6 + 0x17a35c)
#1  0x0000600d26f06031 strsplit (ddcutil + 0x8b031)
#2  0x0000600d26f184ba n/a (ddcutil + 0x9d4ba)
#3  0x0000600d26f18778 is_possible_monitor_by_hiddev_name (ddcutil + 0x9d778)
#4  0x0000600d26f188a9 check_usb_monitor (ddcutil + 0x9d8a9)
#5  0x0000600d26e96752 main (ddcutil + 0x1b752)
#6  0x000076ad72a3cc88 n/a (libc.so.6 + 0x25c88)
#7  0x000076ad72a3cd4c __libc_start_main (libc.so.6 + 0x25d4c)
#8  0x0000600d26e96895 _start (ddcutil + 0x1b895)
ELF object binary architecture: AMD x86-64
Jul 08 21:26:44 systemd-coredump[791]: [🡕] Process 704 (ddcutil) of user 0 dumped core.

Stack trace of thread 704:
#0  0x0000765bc544235c n/a (libc.so.6 + 0x17a35c)
#1  0x00005a94df8f1031 strsplit (ddcutil + 0x8b031)
#2  0x00005a94df9034ba n/a (ddcutil + 0x9d4ba)
#3  0x00005a94df903778 is_possible_monitor_by_hiddev_name (ddcutil + 0x9d778)
#4  0x00005a94df9038a9 check_usb_monitor (ddcutil + 0x9d8a9)
#5  0x00005a94df881752 main (ddcutil + 0x1b752)
#6  0x0000765bc52edc88 n/a (libc.so.6 + 0x25c88)
#7  0x0000765bc52edd4c __libc_start_main (libc.so.6 + 0x25d4c)
#8  0x00005a94df881895 _start (ddcutil + 0x1b895)
ELF object binary architecture: AMD x86-64
Jul 08 21:26:44 (udev-worker)[588]: hiddev5: Process '/usr/bin/ddcutil chkusbmon /dev/usb/hiddev5 -v' terminated by signal SEGV.
Jul 08 21:26:44 systemd-coredump[789]: [🡕] Process 705 (ddcutil) of user 0 dumped core.

Stack trace of thread 705:
#0  0x000073769977e35c n/a (libc.so.6 + 0x17a35c)
#1  0x00005f9e750dd031 strsplit (ddcutil + 0x8b031)
#2  0x00005f9e750ef4ba n/a (ddcutil + 0x9d4ba)
#3  0x00005f9e750ef778 is_possible_monitor_by_hiddev_name (ddcutil + 0x9d778)
#4  0x00005f9e750ef8a9 check_usb_monitor (ddcutil + 0x9d8a9)
#5  0x00005f9e7506d752 main (ddcutil + 0x1b752)
#6  0x0000737699629c88 n/a (libc.so.6 + 0x25c88)
#7  0x0000737699629d4c __libc_start_main (libc.so.6 + 0x25d4c)
#8  0x00005f9e7506d895 _start (ddcutil + 0x1b895)
ELF object binary architecture: AMD x86-64
Jul 08 21:26:44 (udev-worker)[588]: hiddev5: Failed to wait for spawned command '/usr/bin/ddcutil chkusbmon /dev/usb/hiddev5 -v': Input/output error
Jul 08 21:26:44 (udev-worker)[611]: hiddev4: Process '/usr/bin/ddcutil chkusbmon /dev/usb/hiddev4 -v' terminated by signal SEGV.
Jul 08 21:26:44 (udev-worker)[611]: hiddev4: Failed to wait for spawned command '/usr/bin/ddcutil chkusbmon /dev/usb/hiddev4 -v': Input/output error
Jul 08 21:26:44 (udev-worker)[601]: hiddev3: Process '/usr/bin/ddcutil chkusbmon /dev/usb/hiddev3 -v' terminated by signal SEGV.
Jul 08 21:26:44 (udev-worker)[601]: hiddev3: Failed to wait for spawned command '/usr/bin/ddcutil chkusbmon /dev/usb/hiddev3 -v': Input/output error
Jul 08 21:26:52 30-systemd-environment-d-generator[1524]: /home/mod/.config/environment.d/firefox.conf:2: invalid variable name "env MOZ_USE_XINPUT2", ignoring.
Jul 08 21:26:52 30-systemd-environment-d-generator[1643]: /home/mod/.config/environment.d/firefox.conf:2: invalid variable name "env MOZ_USE_XINPUT2", ignoring.
Jul 08 21:27:04 bluetoothd[810]: Failed to set mode: Failed (0x03)
Jul 08 21:27:04 bluetoothd[810]: Too small Add Device complete event
Jul 08 21:27:04 bluetoothd[810]: Too small Add Device complete event
Jul 08 21:27:05 bluetoothd[810]: Failed to set mode: Failed (0x03)
Jul 08 21:27:20 sudo[3100]:      mod : a password is required ; TTY=pts/0 ; PWD=/home/mod ; USER=root ; COMMAND=/usr/bin/true

Thanks so far for the help. Currently I am wirting this booted to Garuda Linux. Will see what happens.

Best regards

MOD

5

This topic was automatically closed 14 days after the last reply. New replies are no longer allowed.
