M.2 Nvme SSD low RND 4k Q1T1 performance

[aegir221]

I did a KDiskMark benchmark on my SiliconPower A60 512GB nvme M.2 SSD and noticed that it has really low Q1T1 4k performance. It reads ~ 5 to 10MB/s but should be anywhere from 70 to 100MB/s. Even my MX500 crucial Sata6 shows 70MB/s on Q1T1 4k.

Anyone had such a glitch?

KDiskMark results:

System:
  Kernel: 6.4.7-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 13.1.1
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
    root=UUID=0f309958-7881-489f-869b-afc74fd9b0e0 rw rootflags=subvol=@
    quiet quiet rd.udev.log_priority=3 vt.global_cursor_default=0
    resume=UUID=f551f9c4-353d-45f8-b453-fd3936591bd1 loglevel=3 ibt=off
  Desktop: KDE Plasma v: 5.27.7 tk: Qt v: 5.15.10 wm: kwin_x11 dm: SDDM
    Distro: Garuda Linux base: Arch Linux
Machine:
  Type: Desktop Mobo: ASUSTeK model: PRIME B450M-A v: Rev X.0x
    serial: <filter> UEFI: American Megatrends v: 3604 date: 02/25/2022
CPU:
  Info: model: AMD Ryzen 7 2700X socket: AM4 bits: 64 type: MT MCP arch: Zen+
    gen: 2 level: v3 note: check built: 2018-21 process: GF 12nm
    family: 0x17 (23) model-id: 8 stepping: 2 microcode: 0x800820D
  Topology: cpus: 1x cores: 8 tpc: 2 threads: 16 smt: enabled cache:
    L1: 768 KiB desc: d-8x32 KiB; i-8x64 KiB L2: 4 MiB desc: 8x512 KiB
    L3: 16 MiB desc: 2x8 MiB
  Speed (MHz): avg: 3700 min/max: 2200/3700 boost: disabled
    base/boost: 3700/4350 scaling: driver: acpi-cpufreq governor: performance
    volts: 1.2 V ext-clock: 100 MHz cores: 1: 3700 2: 3700 3: 3700 4: 3700
    5: 3700 6: 3700 7: 3700 8: 3700 9: 3700 10: 3700 11: 3700 12: 3700
    13: 3700 14: 3700 15: 3700 16: 3700 bogomips: 118394
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
  Vulnerabilities: <filter>
Graphics:
  Device-1: NVIDIA GP104 [GeForce GTX 1080] vendor: Gigabyte driver: nvidia
    v: 535.86.05 alternate: nouveau,nvidia_drm non-free: 535.xx+
    status: current (as of 2023-07) arch: Pascal code: GP10x
    process: TSMC 16nm built: 2016-21 pcie: gen: 3 speed: 8 GT/s lanes: 16
    bus-ID: 09:00.0 chip-ID: 10de:1b80 class-ID: 0300
  Device-2: Logitech Webcam C270 driver: snd-usb-audio,uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-2:3 chip-ID: 046d:0825
    class-ID: 0102 serial: <filter>
  Display: server: X.Org v: 21.1.8 with: Xwayland v: 23.1.2
    compositor: kwin_x11 driver: X: loaded: nvidia unloaded: modesetting,nouveau
    alternate: fbdev,nv,vesa gpu: nvidia display-ID: :0 screens: 1
  Screen-1: 0 s-res: 3840x1200 s-dpi: 93 s-size: 1049x321mm (41.30x12.64")
    s-diag: 1097mm (43.19")
  Monitor-1: DVI-D-0 pos: primary,right res: 1920x1200 hz: 60 dpi: 94
    size: 518x324mm (20.39x12.76") diag: 611mm (24.05") modes: N/A
  Monitor-2: HDMI-0 pos: left res: 1920x1200 hz: 60 dpi: 94
    size: 518x324mm (20.39x12.76") diag: 611mm (24.05") modes: N/A
  API: OpenGL v: 4.6.0 NVIDIA 535.86.05 renderer: NVIDIA GeForce GTX
    1080/PCIe/SSE2 direct-render: Yes
Audio:
  Device-1: NVIDIA GP104 High Definition Audio vendor: Gigabyte
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    bus-ID: 09:00.1 chip-ID: 10de:10f0 class-ID: 0403
  Device-2: AMD Family 17h HD Audio vendor: ASUSTeK driver: snd_hda_intel
    v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16 bus-ID: 0b:00.3
    chip-ID: 1022:1457 class-ID: 0403
  Device-3: Logitech Webcam C270 driver: snd-usb-audio,uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-2:3 chip-ID: 046d:0825
    class-ID: 0102 serial: <filter>
  Device-4: C-Media CM6631A Audio Processor
    driver: hid-generic,snd-usb-audio,usbhid type: USB rev: 2.0 speed: 480 Mb/s
    lanes: 1 mode: 2.0 bus-ID: 3-3:4 chip-ID: 0d8c:0004 class-ID: 0300
  API: ALSA v: k6.4.7-zen1-1-zen status: kernel-api tools: N/A
  Server-1: PipeWire v: 0.3.76 status: n/a (root, process) with:
    1: pipewire-pulse status: active 2: wireplumber status: active
    3: pipewire-alsa type: plugin 4: pw-jack type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Qualcomm Atheros AR9285 Wireless Network Adapter driver: ath9k
    v: kernel pcie: gen: 1 speed: 2.5 GT/s lanes: 1 bus-ID: 07:00.0
    chip-ID: 168c:002b class-ID: 0280
  IF: wlp7s0 state: up mac: <filter>
  Device-2: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet
    vendor: ASUSTeK PRIME B450M-A driver: r8169 v: kernel pcie: gen: 1
    speed: 2.5 GT/s lanes: 1 port: f000 bus-ID: 08:00.0 chip-ID: 10ec:8168
    class-ID: 0200
  IF: enp8s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
Bluetooth:
  Device-1: Cambridge Silicon Radio Bluetooth Dongle (HCI mode) driver: btusb
    v: 0.8 type: USB rev: 2.0 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-9:4
    chip-ID: 0a12:0001 class-ID: e001
  Report: bt-adapter ID: hci0 rfk-id: 0 state: up address: <filter>
Drives:
  Local Storage: total: 1.72 TiB used: 771.94 GiB (43.9%)
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Silicon Power
    model: SPCC M.2 PCIe SSD size: 476.94 GiB block-size: physical: 512 B
    logical: 512 B speed: 31.6 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: H211011a temp: 45.9 C scheme: GPT
  SMART: yes health: PASSED on: 237d 2h cycles: 1,061
    read-units: 29,605,005 [15.1 TB] written-units: 20,545,855 [10.5 TB]
  ID-2: /dev/sda maj-min: 8:0 vendor: Crucial model: M4-CT128M4SSD2
    family: Micron RealSSD m4/C400 size: 119.24 GiB block-size: physical: 512 B
    logical: 512 B sata: 3.0 speed: 6.0 Gb/s tech: SSD serial: <filter>
    fw-rev: 000F scheme: GPT
  SMART: yes state: enabled health: PASSED on: 5y 146d 10h cycles: 6504
  ID-3: /dev/sdb maj-min: 8:16 vendor: Crucial model: CT1000MX500SSD1
    family: Micron Client SSDs size: 931.51 GiB block-size: physical: 4096 B
    logical: 512 B sata: 3.3 speed: 6.0 Gb/s tech: SSD serial: <filter>
    fw-rev: 046 temp: 26 C scheme: GPT
  SMART: yes state: enabled health: PASSED on: 46 hrs cycles: 3
    written: 490.68 GiB
  ID-4: /dev/sdc maj-min: 8:32 vendor: Kingston model: SUV400S37240G
    family: SSDNow UV400/500 size: 223.57 GiB block-size: physical: 4096 B
    logical: 512 B sata: 3.1 speed: 6.0 Gb/s tech: SSD serial: <filter>
    fw-rev: 96R9 temp: 29 C scheme: GPT
  SMART: yes state: enabled health: PASSED on: 2y 64d 22h cycles: 2767
  ID-5: /dev/sdd maj-min: 8:48 model: USB DISK 2.0 size: 7.46 GiB
    block-size: physical: 512 B logical: 512 B type: USB rev: 2.0 spd: 480 Mb/s
    lanes: 1 mode: 2.0 tech: N/A serial: <filter> fw-rev: PMAP scheme: MBR
  SMART Message: Unknown USB bridge. Flash drive/Unsupported enclosure?
Partition:
  ID-1: / raw-size: 234.38 GiB size: 234.38 GiB (100.00%)
    used: 118.62 GiB (50.6%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p1
    maj-min: 259:1
  ID-2: /boot/efi raw-size: 497 MiB size: 496 MiB (99.80%)
    used: 580 KiB (0.1%) fs: vfat block-size: 512 B dev: /dev/nvme0n1p5
    maj-min: 259:5
  ID-3: /home raw-size: 234.38 GiB size: 234.38 GiB (100.00%)
    used: 118.62 GiB (50.6%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p1
    maj-min: 259:1
  ID-4: /var/log raw-size: 234.38 GiB size: 234.38 GiB (100.00%)
    used: 118.62 GiB (50.6%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p1
    maj-min: 259:1
  ID-5: /var/tmp raw-size: 234.38 GiB size: 234.38 GiB (100.00%)
    used: 118.62 GiB (50.6%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p1
    maj-min: 259:1
Swap:
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default)
  ID-1: swap-1 type: zram size: 15.53 GiB used: 3.03 GiB (19.5%)
    priority: 100 dev: /dev/zram0
  ID-2: swap-2 type: partition size: 15.62 GiB used: 0 KiB (0.0%)
    priority: -2 dev: /dev/nvme0n1p2 maj-min: 259:2
Sensors:
  System Temperatures: cpu: 49.5 C mobo: N/A gpu: nvidia temp: 51 C
  Fan Speeds (RPM): N/A gpu: nvidia fan: 19%
Info:
  Processes: 459 Uptime: 10h 1m wakeups: 0 Memory: total: 16 GiB
  available: 15.53 GiB used: 8.66 GiB (55.8%) Init: systemd v: 253
  default: graphical tool: systemctl Compilers: gcc: 13.1.1 clang: 15.0.7
  Packages: pm: pacman pkgs: 2034 libs: 441 tools: octopi,pamac,paru,yay
  pm: rpm pkgs: 0 pm: flatpak pkgs: 0 Shell: garuda-inxi (sudo) default: Bash
  v: 5.1.16 running-in: wezterm-gui inxi: 3.3.28
Garuda (2.6.16-1):
  System install date:     2023-01-18
  Last full system update: 2023-08-04 ↻
  Is partially upgraded:   No
  Relevant software:       snapper NetworkManager dracut nvidia-dkms
  Windows dual boot:       Yes
  Failed units:            shadow.service updatedb.timer~~~

[Bro]

@aegir221

Last full system update: 2023-08-04 ↻

First, reboot please.

[aegir221]

Ok I did that but the results are the same. I am going to give it a rest for today… It isnt bugging me much.

Ideas:

1.1 Maybe I f* up my partitions or patition table. I have the SSD split to brtfs system / root drive and system unrelated partiton with btrfs.
2.1 Or I damaged the M.2 drive installing it last year. I did some trickery because I did not have the proper small tigh thread screw to mount the M.2 in place. Maybe it has bad connection… otherwise the drive should be okay.

---------> 3.1 Another idea. Can anyone bother to share their KDiskMark result on their System root drive? Preferably M2 drive.

[SGS]

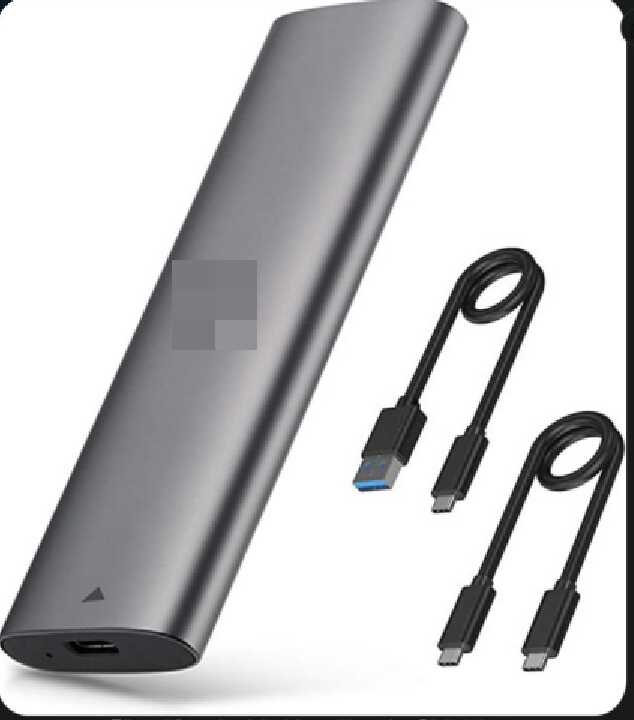

It could also be a heat problem. I have found that with an external NVMe, the performance drops rapidly until I cool it with the help of a small USB-Flower-fan.

---

Off topic

Cost ~ € 6, consumption 1 watt. Not nice but effective.

Fan

ext. Case

L x B x H 11.4 x 3.8 x 1.2 cm
Used to back up all my data from my home server.
Always on hand in case the place burns down or a flood washes everything away.

[NaN]

@aegir221

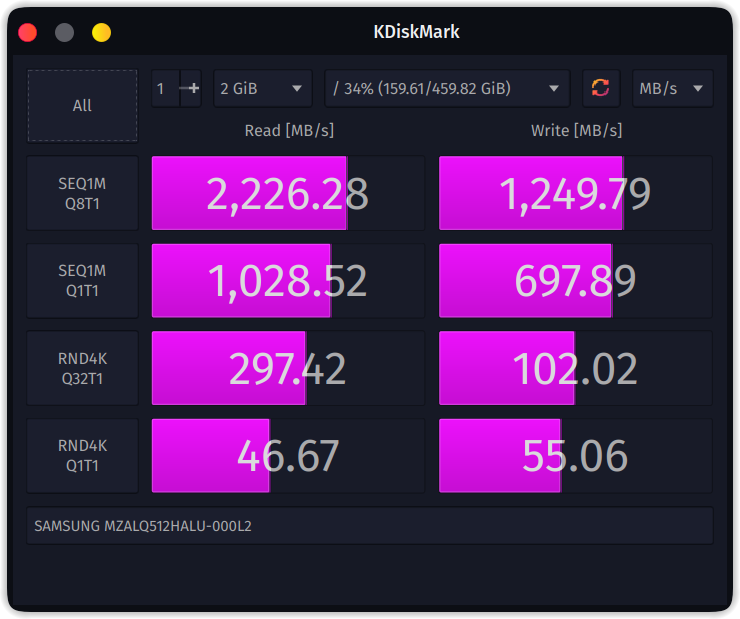

3.1 Another idea. Can anyone bother to share their KDiskMark result on their System root drive? Preferably M2 drive.

I know you asked for M.2 but hey Nvme ain’t bad either.

Well to be honest, that’s the only drive I have so…

[SGS]

@aegir221

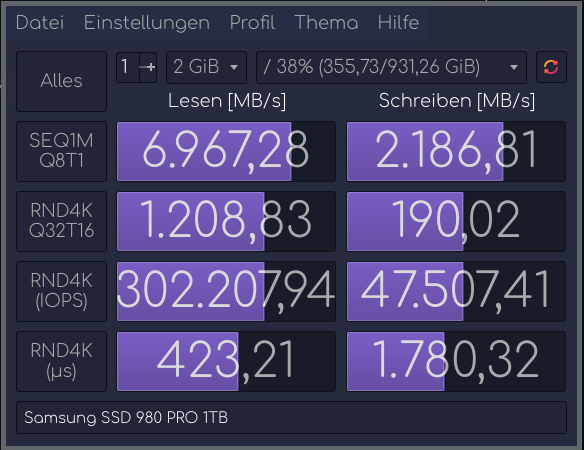

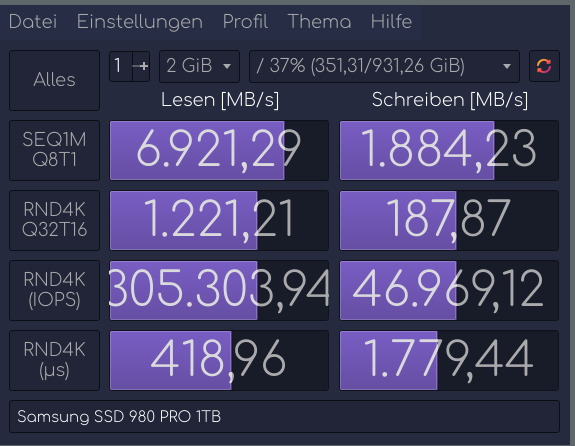

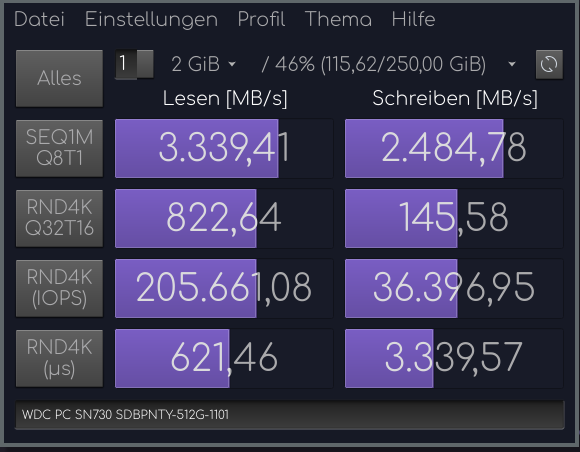

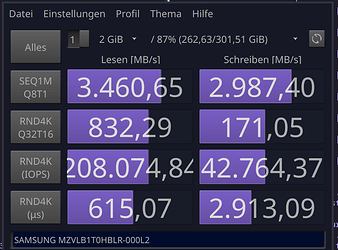

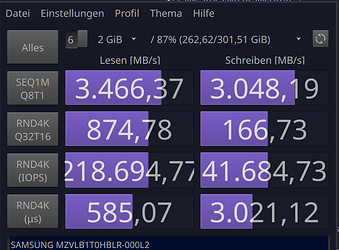

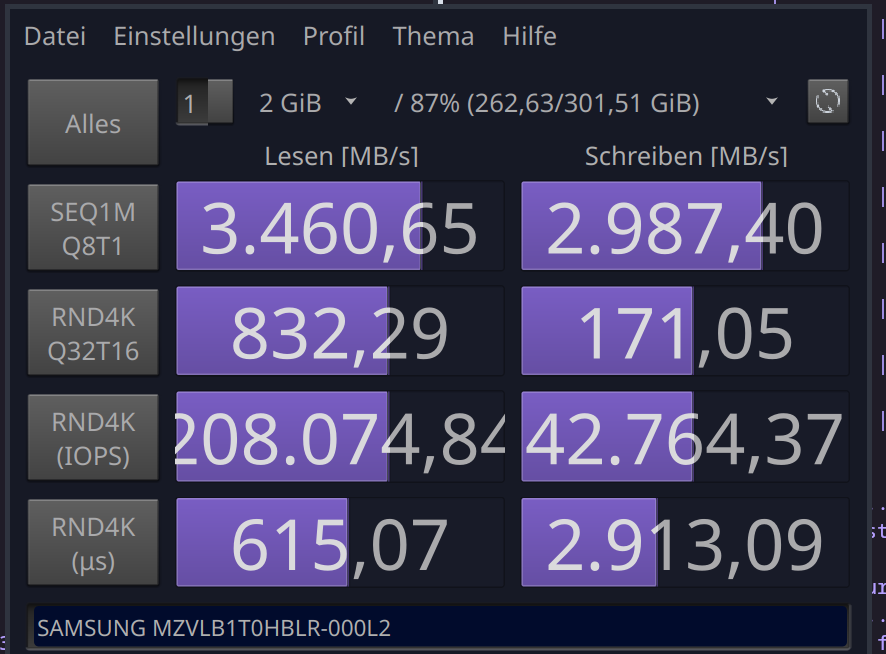

Can anyone bother to share their KDiskMark

Link

Settings?

garuda-inxi

System:
  Kernel: 6.4.7-AMD-znver3 arch: x86_64 bits: 64 compiler: gcc v: 13.1.1
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-amd-znver3
    root=UUID=21e02e96-0ed6-4629-9a39-85ffee7a4359 rw rootflags=subvol=@
    quiet quiet rd.udev.log_priority=3 vt.global_cursor_default=0 loglevel=3
    amd_pstate=active ibt=off
  Desktop: i3 v: 4.22 info: i3bar dm: LightDM v: 1.32.0 Distro: Garuda Linux
    base: Arch Linux
Machine:
  Type: Laptop System: LENOVO product: 82MS v: Yoga Slim 7 Pro 14ACH5
    serial: <filter> Chassis: type: 10 v: Yoga Slim 7 Pro 14ACH5
    serial: <filter>
  Mobo: LENOVO model: LNVNB161216 v: SDK0R32862WIN serial: <filter>
    UEFI: LENOVO v: GZCN32WW date: 12/08/2022
Battery:
  ID-1: BAT0 charge: 34.4 Wh (59.0%) condition: 58.3/61.0 Wh (95.6%)
    volts: 15.9 min: 15.4 model: Sunwoda L19D4PH3 type: Li-poly serial: <filter>
    status: not charging cycles: 70
CPU:
  Info: model: AMD Ryzen 9 5900HX with Radeon Graphics socket: FP6 bits: 64
    type: MT MCP arch: Zen 3 gen: 4 level: v3 note: check built: 2021-22
    process: TSMC n7 (7nm) family: 0x19 (25) model-id: 0x50 (80) stepping: 0
    microcode: 0xA50000B
  Topology: cpus: 1x cores: 8 tpc: 2 threads: 16 smt: enabled cache:
    L1: 512 KiB desc: d-8x32 KiB; i-8x32 KiB L2: 4 MiB desc: 8x512 KiB
    L3: 16 MiB desc: 1x16 MiB
  Speed (MHz): avg: 1119 high: 3289 min/max: 400/4680 base/boost: 3300/4650
    scaling: driver: amd-pstate-epp governor: performance volts: 1.2 V
    ext-clock: 100 MHz cores: 1: 400 2: 3266 3: 3289 4: 400 5: 400 6: 400
    7: 400 8: 400 9: 400 10: 400 11: 400 12: 400 13: 400 14: 3283 15: 400
    16: 3268 bogomips: 105444
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
  Vulnerabilities: <filter>
Graphics:
  Device-1: AMD Cezanne [Radeon Vega Series / Radeon Mobile Series]
    vendor: Lenovo driver: amdgpu v: kernel arch: GCN-5 code: Vega
    process: GF 14nm built: 2017-20 pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s ports: active: eDP-1 empty: DP-1,DP-2
    bus-ID: 03:00.0 chip-ID: 1002:1638 class-ID: 0300 temp: 45.0 C
  Display: x11 server: X.Org v: 21.1.8 driver: X: loaded: amdgpu
    unloaded: modesetting alternate: fbdev,vesa dri: radeonsi gpu: amdgpu
    display-ID: :0 screens: 1
  Screen-1: 0 s-res: 2880x1800 s-dpi: 96 s-size: 762x476mm (30.00x18.74")
    s-diag: 898mm (35.37")
  Monitor-1: eDP-1 mapped: eDP model-id: CSO 0x1402 built: 2020
    res: 2880x1800 hz: 90 dpi: 242 gamma: 1.2 size: 302x188mm (11.89x7.4")
    diag: 356mm (14") ratio: 16:10 modes: max: 2880x1800 min: 640x480
  API: OpenGL v: 4.6 Mesa 23.1.5 renderer: AMD Radeon Graphics (renoir LLVM
    15.0.7 DRM 3.52 6.4.7-AMD-znver3) direct-render: Yes
Audio:
  Device-1: AMD Renoir Radeon High Definition Audio vendor: Lenovo
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s bus-ID: 03:00.1 chip-ID: 1002:1637
    class-ID: 0403
  Device-2: AMD ACP/ACP3X/ACP6x Audio Coprocessor vendor: Lenovo driver: N/A
    alternate: snd_pci_acp3x, snd_rn_pci_acp3x, snd_pci_acp5x, snd_pci_acp6x,
    snd_acp_pci pcie: gen: 3 speed: 8 GT/s lanes: 16 link-max: gen: 4
    speed: 16 GT/s bus-ID: 03:00.5 chip-ID: 1022:15e2 class-ID: 0480
  Device-3: AMD Family 17h/19h HD Audio vendor: Lenovo driver: snd_hda_intel
    v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16 link-max: gen: 4
    speed: 16 GT/s bus-ID: 03:00.6 chip-ID: 1022:15e3 class-ID: 0403
  API: ALSA v: k6.4.7-AMD-znver3 status: kernel-api tools: N/A
  Server-1: PipeWire v: 0.3.76 status: n/a (root, process) with:
    1: pipewire-pulse status: active 2: wireplumber status: active
    3: pipewire-alsa type: plugin 4: pw-jack type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Realtek RTL8852AE 802.11ax PCIe Wireless Network Adapter
    vendor: Lenovo driver: rtw89_8852ae v: N/A modules: rtw_8852ae pcie: gen: 1
    speed: 2.5 GT/s lanes: 1 port: 2000 bus-ID: 01:00.0 chip-ID: 10ec:8852
    class-ID: 0280
  IF: wlp1s0 state: up mac: <filter>
Bluetooth:
  Device-1: Realtek Bluetooth Radio driver: btusb v: 0.8 type: USB rev: 1.0
    speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-4:2 chip-ID: 0bda:4852
    class-ID: e001 serial: <filter>
  Report: bt-adapter ID: hci0 rfk-id: 3 state: up address: <filter>
Drives:
  Local Storage: total: 953.87 GiB used: 262.66 GiB (27.5%)
  SMART Message: Required tool smartctl not installed. Check --recommends
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Samsung
    model: MZVLB1T0HBLR-000L2 size: 953.87 GiB block-size: physical: 512 B
    logical: 512 B speed: 31.6 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: 3L1QEXF7 temp: 39.9 C scheme: GPT
Partition:
  ID-1: / raw-size: 301.51 GiB size: 301.51 GiB (100.00%)
    used: 262.63 GiB (87.1%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p7
    maj-min: 259:7
  ID-2: /boot/efi raw-size: 260 MiB size: 256 MiB (98.46%)
    used: 34.9 MiB (13.6%) fs: vfat block-size: 512 B dev: /dev/nvme0n1p1
    maj-min: 259:1
  ID-3: /home raw-size: 301.51 GiB size: 301.51 GiB (100.00%)
    used: 262.63 GiB (87.1%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p7
    maj-min: 259:7
  ID-4: /var/log raw-size: 301.51 GiB size: 301.51 GiB (100.00%)
    used: 262.63 GiB (87.1%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p7
    maj-min: 259:7
  ID-5: /var/tmp raw-size: 301.51 GiB size: 301.51 GiB (100.00%)
    used: 262.63 GiB (87.1%) fs: btrfs block-size: 4096 B dev: /dev/nvme0n1p7
    maj-min: 259:7
Swap:
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default)
  ID-1: swap-1 type: zram size: 13.51 GiB used: 2.21 GiB (16.3%)
    priority: 100 dev: /dev/zram0
Sensors:
  System Temperatures: cpu: 51.5 C mobo: N/A gpu: amdgpu temp: 45.0 C
  Fan Speeds (RPM): N/A
Info:
  Processes: 430 Uptime: 10h 14m wakeups: 1 Memory: total: 16 GiB note: est.
  available: 13.51 GiB used: 8.61 GiB (63.7%) Init: systemd v: 254
  default: graphical tool: systemctl Compilers: gcc: 13.2.1 clang: 15.0.7
  Packages: pm: pacman pkgs: 1503 libs: 404 tools: octopi,pamac,paru
  Shell: garuda-inxi (sudo) default: fish v: 3.6.1 running-in: kitty
  inxi: 3.3.28
Garuda (2.6.16-1):
  System install date:     2023-03-07
  Last full system update: 2023-08-05 ↻
  Is partially upgraded:   No
  Relevant software:       snapper NetworkManager dracut
  Windows dual boot:       Yes
  Failed units:
  Total system updates:    267
  --> Updates per week:    12

[SGS]

Main Desktop PC

Intel Notebook

[aegir221]

I believe mine is Nvme too - the m.2 Nvme slot.

[NaN]

I apologize I don't know why I thought M.2 refers to the sata ssd.

[aegir221]

MX500 results:

I'm going to change the Nvme SSD probably. I might leave this SiliconPower for another system.

[aegir221]

The real solution was ---> Erase the drive of all partitions, then reinstall Garuda and just use the default partition option ---> Use Entire Drive. I swapped 2 flies at one with this cause I wanted a bigger system partition.
Great, now I don't need another Nvme drive.

Results.

Guru3d SSD benchmark results as comparison. Similar Nvme M.2 drives here, some PCI-E Gen4. The drive is behaving as it should. (CrystalDisk mark has the same tests and layout) My RND4k Q1T1 results ranged from 46 to 60 which is to be expected.
