Issue getting second monitor to work

[inpachi]

I am dual booting Garuda and Win11
I have two monitors both connected to my Graphics Card using DP cables.
The main monitor works fine but the second monitor will not display at all.

System:
Kernel: 6.14.1-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 14.2.1
clocksource: tsc avail: hpet,acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=f030a2bf-117b-484f-930a-71cce5da9b2f rw rootflags=subvol=@
quiet resume=UUID=7c1e5ac9-4aea-47d3-95cc-1dd9843dd506 loglevel=3 ibt=off
Desktop: Cinnamon v: 6.4.9 tk: GTK v: 3.24.49 wm: Muffin v: 6.4.1 tools:
avail: cinnamon-screensaver,xautolock vt: 7 dm: LightDM v: 1.32.0
Distro: Garuda base: Arch Linux
Machine:
Type: Desktop Mobo: Micro-Star model: MAG X870E TOMAHAWK WIFI (MS-7E59)
v: 2.0 serial: uuid: UEFI: American
Megatrends LLC. v: 2.A30 date: 01/06/2025
CPU:
Info: model: AMD Ryzen 7 9800X3D bits: 64 type: MT MCP arch: N/A level: v4
note: check family: 0x1A (26) model-id: 0x44 (68) stepping: 0
microcode: 0xB404023
Topology: cpus: 1x dies: 1 clusters: 1 cores: 8 threads: 16 tpc: 2
smt: enabled cache: L1: 640 KiB desc: d-8x48 KiB; i-8x32 KiB L2: 8 MiB
desc: 8x1024 KiB L3: 96 MiB desc: 1x96 MiB
Speed (MHz): avg: 2985 min/max: 600/5271 boost: enabled scaling:
driver: amd-pstate-epp governor: performance cores: 1: 2985 2: 2985 3: 2985
4: 2985 5: 2985 6: 2985 7: 2985 8: 2985 9: 2985 10: 2985 11: 2985 12: 2985
13: 2985 14: 2985 15: 2985 16: 2985 bogomips: 150399
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
Vulnerabilities:
Graphics:
Device-1: NVIDIA GB203 [GeForce RTX 5080] vendor: Gigabyte driver: nvidia
v: 570.133.07 alternate: nouveau,nvidia_drm non-free: N/A
status: unknown device ID pcie: gen: 5 speed: 32 GT/s lanes: 16
bus-ID: 01:00.0 chip-ID: 10de:2c02 class-ID: 0300
Device-2: Advanced Micro Devices [AMD/ATI] Granite Ridge [Radeon Graphics]
vendor: Micro-Star MSI driver: amdgpu v: kernel pcie: gen: 4 speed: 16 GT/s
lanes: 16 ports: active: none empty: DP-1, DP-2, DP-3, HDMI-A-1,
Writeback-1 bus-ID: 79:00.0 chip-ID: 1002:13c0 class-ID: 0300 temp: 47.0 C
Display: x11 server: [X.Org](http://X.Org) v: 21.1.16 with: Xwayland v: 24.1.6 driver: X:
loaded: amdgpu,modesetting,nouveau alternate: fbdev,nv,vesa dri: radeonsi
gpu: nvidia,amdgpu display-ID: :0 screens: 1
Screen-1: 0 s-res: 3840x2160 s-dpi: 96 s-size: 1016x571mm (40.00x22.48")
s-diag: 1165mm (45.88")
Monitor-1: Unknown-1 mapped: None-1 res: mode: 3840x2160 hz: 60
scale: 100% (1) size: N/A modes: 3840x2160
API: Vulkan v: 1.4.309 layers: 6 device: 0 type: integrated-gpu name: AMD
Radeon Graphics (RADV RAPHAEL_MENDOCINO) driver: N/A device-ID: 1002:13c0
surfaces: xcb,xlib device: 1 type: cpu name: llvmpipe (LLVM 19.1.7 256
bits) driver: N/A device-ID: 10005:0000 surfaces: xcb,xlib
API: OpenGL Message: Unable to show GL data. glxinfo is missing.
Info: Tools: api: vulkaninfo gpu: nvidia-settings,nvidia-smi
x11: xdpyinfo, xprop, xrandr
Audio:
Device-1: NVIDIA driver: snd_hda_intel v: kernel pcie: gen: 5 speed: 32 GT/s
lanes: 16 bus-ID: 01:00.1 chip-ID: 10de:22e9 class-ID: 0403
Device-2: Advanced Micro Devices [AMD/ATI] Rembrandt Radeon High
Definition Audio vendor: Micro-Star MSI driver: snd_hda_intel v: kernel
pcie: gen: 4 speed: 16 GT/s lanes: 16 bus-ID: 79:00.1 chip-ID: 1002:1640
class-ID: 0403
Device-3: Advanced Micro Devices [AMD] Family 17h/19h/1ah HD Audio
vendor: Micro-Star MSI driver: snd_hda_intel v: kernel pcie: gen: 4
speed: 16 GT/s lanes: 16 bus-ID: 79:00.6 chip-ID: 1022:15e3 class-ID: 0403
Device-4: Micro Star USB Audio driver: hid-generic,snd-usb-audio,usbhid
type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-12:3
chip-ID: 0db0:cd0e class-ID: 0300
Device-5: Google Android Open Accessory device (audio + ADB)
driver: cdc_acm type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0
bus-ID: 1-8.3:4 chip-ID: 18d1:2d03 class-ID: 0a00 serial:
API: ALSA v: k6.14.1-zen1-1-zen status: kernel-api tools: N/A
Server-1: PipeWire v: 1.4.1 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Realtek RTL8126 5GbE vendor: Micro-Star MSI driver: r8169
v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 1 port: e000 bus-ID: 07:00.0
chip-ID: 10ec:8126 class-ID: 0200
IF: enp7s0 state: up speed: 1000 Mbps duplex: full mac:
Device-2: Qualcomm WCN785x Wi-Fi 7 320MHz 2x2 [FastConnect 7800]
vendor: Foxconn Band Simultaneous Wireless driver: ath12k_pci v: N/A
modules: ath12k pcie: gen: 3 speed: 8 GT/s lanes: 2 bus-ID: 08:00.0
chip-ID: 17cb:1107 class-ID: 0280
IF: wlp8s0 state: up mac:
Info: services: NetworkManager, smbd, systemd-timesyncd, wpa_supplicant
Bluetooth:
Device-1: Foxconn / Hon Hai driver: btusb v: 0.8 type: USB rev: 1.1
speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-12:4 chip-ID: 0489:e10a
class-ID: e001
Report: btmgmt ID: hci0 rfk-id: 0 state: up address: bt-v: 5.4
lmp-v: 13 status: discoverable: no pairing: no class-ID: 6c0104
Drives:
Local Storage: total: 2.73 TiB used: 14.18 GiB (0.5%)
SMART Message: Required tool smartctl not installed. Check --recommends
ID-1: /dev/nvme0n1 maj-min: 259:3 vendor: Western Digital
model: WD BLACK SN850X 1000GB size: 931.51 GiB block-size: physical: 512 B
logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial:
fw-rev: 620361WD temp: 46.9 C scheme: GPT
ID-2: /dev/nvme1n1 maj-min: 259:0 vendor: Western Digital
model: WD BLACK SN7100 2TB size: 1.82 TiB block-size: physical: 512 B
logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial:
fw-rev: 7615M0WD temp: 41.9 C scheme: GPT
Partition:
ID-1: / raw-size: 400.39 GiB size: 400.39 GiB (100.00%)
used: 14.15 GiB (3.5%) fs: btrfs dev: /dev/nvme0n1p6 maj-min: 259:9
ID-2: /boot/efi raw-size: 2 GiB size: 1.99 GiB (99.61%)
used: 31.4 MiB (1.5%) fs: vfat dev: /dev/nvme0n1p4 maj-min: 259:7
ID-3: /home raw-size: 400.39 GiB size: 400.39 GiB (100.00%)
used: 14.15 GiB (3.5%) fs: btrfs dev: /dev/nvme0n1p6 maj-min: 259:9
ID-4: /var/log raw-size: 400.39 GiB size: 400.39 GiB (100.00%)
used: 14.15 GiB (3.5%) fs: btrfs dev: /dev/nvme0n1p6 maj-min: 259:9
ID-5: /var/tmp raw-size: 400.39 GiB size: 400.39 GiB (100.00%)
used: 14.15 GiB (3.5%) fs: btrfs dev: /dev/nvme0n1p6 maj-min: 259:9
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 60.38 GiB used: 0 KiB (0.0%) priority: 100
comp: zstd avail: lzo-rle,lzo,lz4,lz4hc,deflate,842 max-streams: 16
dev: /dev/zram0
ID-2: swap-2 type: partition size: 39.06 GiB used: 0 KiB (0.0%)
priority: -2 dev: /dev/nvme0n1p7 maj-min: 259:10
Sensors:
System Temperatures: cpu: 56.4 C mobo: 44.8 C gpu: amdgpu temp: 57.5 C
Fan Speeds (rpm): N/A
Info:
Memory: total: 60 GiB note: est. available: 60.38 GiB used: 5.63 GiB (9.3%)
Processes: 396 Power: uptime: 53m states: freeze,mem,disk suspend: deep
avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
suspend, test_resume image: 24.09 GiB services: csd-power,upowerd
Init: systemd v: 257 default: graphical tool: systemctl
Packages: pm: pacman pkgs: 1470 libs: 419
tools: gnome-software,octopi,paru pm: rpm pkgs: 0 Compilers: gcc: 14.2.1
Shell: garuda-inxi default: fish v: 4.0.1 running-in: gnome-terminal
inxi: 3.3.37
Garuda (2.7.2-1):
System install date: 2025-04-09
Last full system update: 2025-04-10 ↻
Is partially upgraded: No
Relevant software: snapper NetworkManager [dracut](https://wiki.garudalinux.org/en/Dracut) nvidia-dkms
Windows dual boot: Probably (Run as root to verify)
Failed units:

EDIT: I think this might be the issue, I get this when I run garuda-update
—> Failed to build NVIDIA DKMS module for kernel 6.15.0-rc1-1-mainline

[Duke187]

Welcome

Garuda dont support Dual-Boot because Windo… hijacks Hardware if you dont shut it down correctly too.

on the inxi it shows that your system needs a reboot. Please reboot and post that inxi again.

PS. EDIT:

Did you installed the mainline Kernel yourself i read somewhere its not compatible with it so it will fail in a other Topic here in the Forum.

[nepti]

@inpachi

Kernel: 6.14.1-zen1-1-zen

@inpachi

Device-1: NVIDIA GB203 [GeForce RTX 5080] vendor: Gigabyte driver: nvidia
v: 570.133.07 alternate: nouveau,nvidia_drm non-free: N/A
status: unknown device ID

@inpachi

nvidia-dkms

Take a look here:

Nvidia 5090 not working with Garuda Broadwing Dr460nized

The GPU is not recognized correctly. And it looks like the wrong drivers are installed. The 5090 is not supported by the proprietary nvidia drivers, post the output from: pacman -Qs nvidia Only the nvidia-open drivers support the Blackwell GPUs, in your case for the linux-zen kernel you need nvidia-open-dkms.

If you still have issues afterwards, then try to remove :

@inpachi

kernel 6.15.0-rc1-1-mainline

[Jeshu]

Hi,

i do not know if you solved the trouble, but my RTX 4080 does not work on the graphic drivers Garuda installs. i use open source dkms modules to get around the trouble. This might also work for you.

You may have to uninstall some conflicting apps. If such is the case please do not forget to reinstall them after running the code below successfully.

See how you go

sudo pacman -Sy nvidia-open-dkms egl-wayland lib32-nvidia-utils lib32-opencl-nvidia nvidia-settings opencl-nvidia nvidia-utils

[inpachi]

Thank you for this, I had to remove garuda-nvidia-config and garuda-prime-nvidia-config using

sudo pacman -R garuda-nvidia-config
and
pacman -R garuda-prime-nvidia-config

but after that the command you gave me worked, I rebooted, ran garuda-update and now everything appears to be functioning. Will continue to use as normal and see if I have other issues.

EDIT: It appears I have encountered another problem. Video works perfectly fine now but now Audio is not functioning properly. I can get videos to play audio just fine, but when I use the dial on my keyboard to increase/decrease the volume it does not make that “clicking” sound when I go up and down and also Notifications do not play a sound when they show up on my screen. It’s not the biggest deal, but I do use notifications quite a bit and not having a sound kind of bothers me.

[Jeshu]

Not sure why this would be. i do not use the sound functions of my graphic card for i like to use my subwoofer, so i use built in sound, and have no troubles with that.

You could check if your computer has a built in sound device by right clicking on the speaker in your system tray on your main panel and select configuring audio devices and see if you have two sound devices and selecting built in sound instead of HDA nvidia sound.

cheers

(Oh yes, you might want to keep the open source code i gave you, for you will have to do it again each time nvidia updates its drivers.)

[inpachi]

I use a stereo system that I have connected to PC. I have QSC amplifier connected to a mixer that is connected to my PC via blutooth. I have no problem playing sounds. The only things that don’t seem to be working are the “clicking” sounds that Linux makes when you increase or decrease the volume and the sounds from notifications.

Edit: I think I have found the issue, all of the “sounds” are turned off and there seems to be no audio files for the sounds.

Screenshot: https://files.catbox.moe/hedpnw.png

[Duke187]

toggle the last one to on chancing the sound volume?

for sound on notifications maybe you find them in the system sound settings for the browser? i dont know im not on cinnamon.

ps. @elite posted some pic in the chat for you

[inpachi]

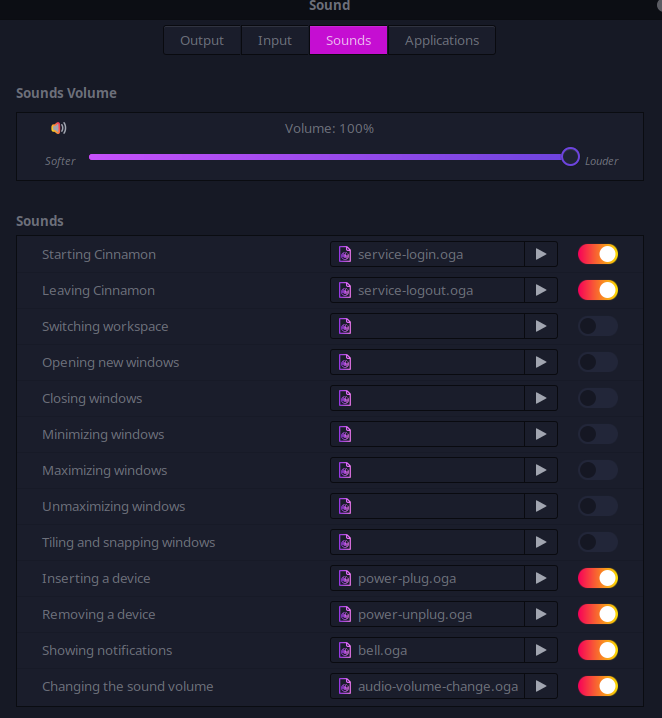

Yes, I managed to find a sound package called “Free Desktop” which had some of these sounds. I got the ones I cared about at least, thank you for all your and Jeshu’s help.

Screenshot: https://files.catbox.moe/r9scll.png
