First post, appreciate your forgiveness if I missed something. I installed Garuda on my PC a few weeks back and I’ve been facing an issue that’s proven to be difficult to describe and therefore a bit difficult for me to search on. I have found somewhat similar issues with ‘graphical glitches’ when waking from sleep, but they all appear to be specific to Nvidia whereas I run AMD and I don’t have the options to follow the remediation steps on them.

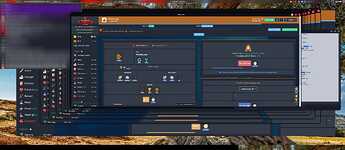

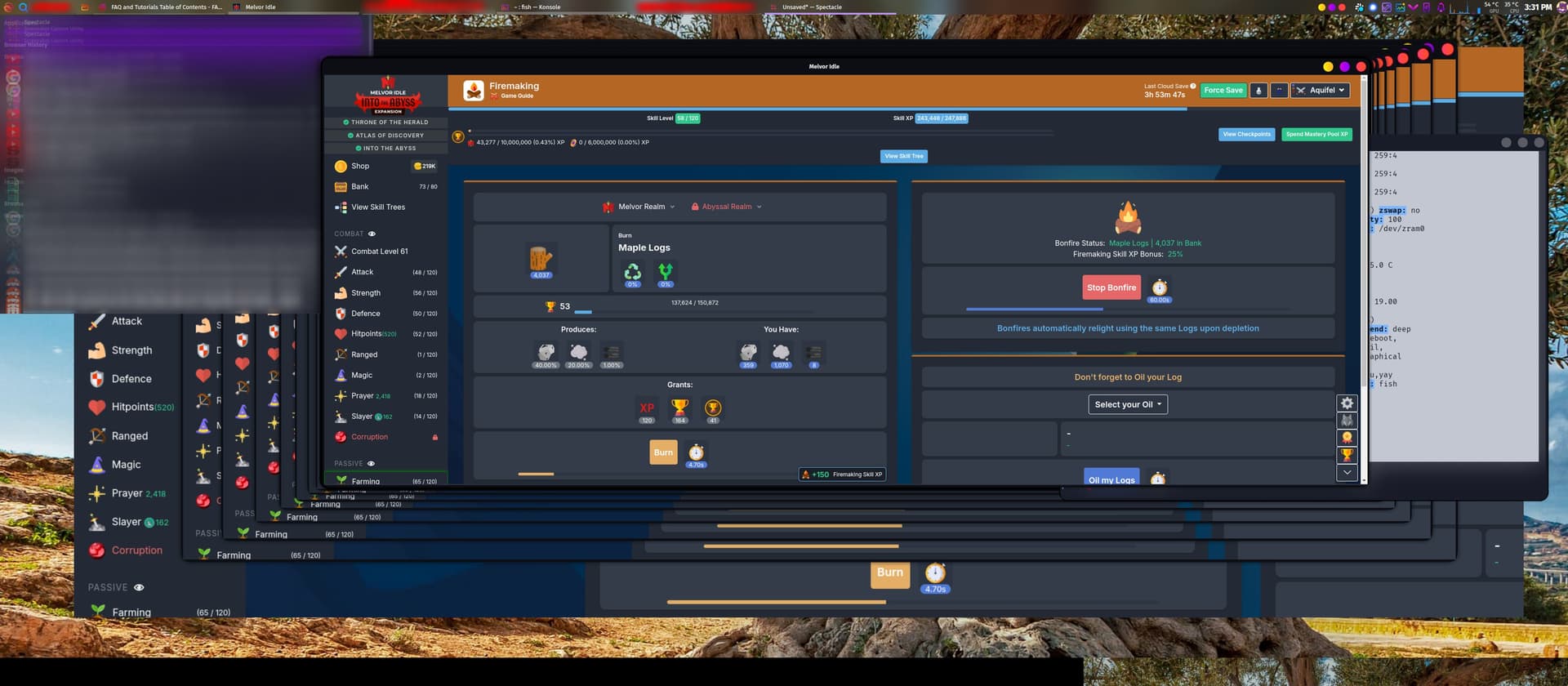

On my primary monitor… The best way I can think to describe the issue is that when I wake from sleep, my open applications will be stuck in an invisible or partially usable state. Sometimes I can click on them in the taskbar and it seemingly does nothing at all in the main area of the window despite the launcher acting like it is the active application now (the desktop does become non-interactive like something is above it) or sometimes it will go into kind of a flickering state where it seems like it’s trying to run the maximize or minimize animation over and over. I.e., I’ll see the desktop for a fraction of a second then see parts of the window maximizing animation for a fraction of a second, then it will repeat. I think of it as the window flickering in and out. If I turn off the animations, then we just get locked into the invisible state consistently. These windows are completely unusable and I haven’t been able to find a way to interact with them beyond closing and reopening them.
On my secondary monitor… I have an issue that I think is related, but it does present differently, I’ll still have a non-interactive window, but it will seem to think of itself as maximized but only be taking up the top-left 2/3rds of the screen with empty desktop behind. This also occurs when waking from sleep if I had an item present on the secondary monitor.
I also have a third monitor but I haven’t noticed any odd issues there, it is small and not usable for much. These issues started before I started using it.
One thing I’ve found out is that if I un-maximize these windows and then re-maximize them (actual minimize does not work) from the window buttons widget in KDE, they will usually act like normal until the computer wakes from sleep again. This works a bit more than half the time.
I’m kind of stuck here because it’s kind of hard for me to think of how to describe the issue in concise terms and I’m not sure what exactly is controlling these processes. It feels kind of like I’m at that stage where I’m on the phone trying to describe that weird noise my car is making to my mechanic. Really appreciate any help anyone can offer.
I see that it’s good form to post the results of garuda-inxi instead of detailing out specs, that should be below:
System:
Kernel: 6.10.9-zen1-2-zen arch: x86_64 bits: 64 compiler: gcc v: 14.2.1
clocksource: tsc avail: hpet,acpi_pm
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=bf6abacf-716f-47e9-9aeb-ec21aa5fc137 rw rootflags=subvol=@
quiet resume=UUID=16cf30d7-58f9-4f6d-b87a-da17bb77ed62 loglevel=3 ibt=off
Desktop: KDE Plasma v: 6.1.5 tk: Qt v: N/A info: frameworks v: 6.5.0
wm: kwin_wayland vt: 1 dm: SDDM Distro: Garuda base: Arch Linux
Machine:
Type: Desktop Mobo: ASUSTeK model: ROG STRIX B450-F GAMING v: Rev 1.xx
serial: <superuser required> part-nu: SKU uuid: <superuser required>
UEFI: American Megatrends v: 3103 date: 06/17/2020
Battery:
Device-1: hidpp_battery_0 model: Logitech MX Ergo Multi-Device Trackball
serial: <filter> charge: 55% (should be ignored) rechargeable: yes
status: discharging
CPU:
Info: model: AMD Ryzen 5 2600 bits: 64 type: MT MCP arch: Zen+ gen: 2
level: v3 note: check built: 2018-21 process: GF 12nm family: 0x17 (23)
model-id: 8 stepping: 2 microcode: 0x800820D
Topology: cpus: 1x cores: 6 tpc: 2 threads: 12 smt: enabled cache:
L1: 576 KiB desc: d-6x32 KiB; i-6x64 KiB L2: 3 MiB desc: 6x512 KiB
L3: 16 MiB desc: 2x8 MiB
Speed (MHz): avg: 3734 high: 3751 min/max: 1550/3400 boost: enabled
scaling: driver: acpi-cpufreq governor: performance cores: 1: 3743 2: 3728
3: 3736 4: 3741 5: 3744 6: 3743 7: 3735 8: 3668 9: 3743 10: 3743 11: 3751
12: 3741 bogomips: 81447
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
Vulnerabilities: <filter>
Graphics:
Device-1: AMD Navi 23 [Radeon RX 6600/6600 XT/6600M] vendor: ASUSTeK
driver: amdgpu v: kernel arch: RDNA-2 code: Navi-2x process: TSMC n7 (7nm)
built: 2020-22 pcie: gen: 4 speed: 16 GT/s lanes: 16 ports:
active: DP-3,HDMI-A-1 empty: DP-1,DP-2,Writeback-1 bus-ID: 0b:00.0
chip-ID: 1002:73ff class-ID: 0300
Device-2: Lenovo 500 RGB Camera driver: uvcvideo type: USB rev: 2.0
speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 5-3.4:7 chip-ID: 17ef:482f
class-ID: 0e02 serial: <filter>
Device-3: DisplayLink Lenovo ThinkSmart Auxiliary Display driver: usbfs
type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 5-4.2.1:8
chip-ID: 17e9:ff04 class-ID: fe01 serial: <filter>
Display: wayland server: X.org v: 1.21.1.13 with: Xwayland v: 24.1.2
compositor: kwin_wayland driver: X: loaded: amdgpu,modesetting,radeon
alternate: fbdev,vesa dri: radeonsi gpu: amdgpu d-rect: 7067x2240
display-ID: 0
Monitor-1: DP-3 pos: top-right res: 2560x1440 size: N/A modes: N/A
Monitor-2: DVI-I-1 pos: bottom-c res: 1067x800 size: N/A modes: N/A
Monitor-3: HDMI-A-1 pos: primary,top-left res: 3440x1440 size: N/A
modes: N/A
API: EGL v: 1.5 hw: drv: amd radeonsi platforms: device: 0 drv: radeonsi
device: 1 drv: swrast gbm: drv: kms_swrast surfaceless: drv: radeonsi
wayland: drv: radeonsi x11: drv: radeonsi
API: OpenGL v: 4.6 compat-v: 4.5 vendor: amd mesa v: 24.2.2-arch1.1
glx-v: 1.4 direct-render: yes renderer: AMD Radeon RX 6600 (radeonsi navi23
LLVM 18.1.8 DRM 3.57 6.10.9-zen1-2-zen) device-ID: 1002:73ff
memory: 7.81 GiB unified: no display-ID: :0.0
API: Vulkan v: 1.3.295 layers: 8 device: 0 type: discrete-gpu name: AMD
Radeon RX 6600 (RADV NAVI23) driver: mesa radv v: 24.2.2-arch1.1
device-ID: 1002:73ff surfaces: xcb,xlib,wayland device: 1 type: cpu
name: llvmpipe (LLVM 18.1.8 256 bits) driver: mesa llvmpipe
v: 24.2.2-arch1.1 (LLVM 18.1.8) device-ID: 10005:0000
surfaces: xcb,xlib,wayland
Audio:
Device-1: AMD Navi 21/23 HDMI/DP Audio driver: snd_hda_intel v: kernel pcie:
gen: 4 speed: 16 GT/s lanes: 16 bus-ID: 0b:00.1 chip-ID: 1002:ab28
class-ID: 0403
Device-2: AMD Family 17h HD Audio vendor: ASUSTeK driver: snd_hda_intel
v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16 bus-ID: 0e:00.3
chip-ID: 1022:1457 class-ID: 0403
Device-3: GN Netcom Jabra SPEAK 510 USB driver: jabra,snd-usb-audio,usbhid
type: USB rev: 2.0 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 5-3.2:5
chip-ID: 0b0e:0422 class-ID: 0300 serial: <filter>
Device-4: Lenovo ThinkSmart Controller
driver: hid-generic,hid-sensor-hub,usbhid type: USB rev: 2.0 speed: 12 Mb/s
lanes: 1 mode: 1.1 bus-ID: 5-4.2.2:18 chip-ID: 17ef:a41e class-ID: 0300
Device-5: Lenovo ThinkSmart Auxiliary Display
driver: hid-generic,snd-usb-audio,usbhid type: USB rev: 2.0 speed: 480 Mb/s
lanes: 1 mode: 2.0 bus-ID: 5-4.2.4:11 chip-ID: 17ef:a41e class-ID: 0300
API: ALSA v: k6.10.9-zen1-2-zen status: kernel-api with: aoss
type: oss-emulator tools: N/A
Server-1: PipeWire v: 1.2.3 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Intel I211 Gigabit Network vendor: ASUSTeK driver: igb v: kernel
pcie: gen: 1 speed: 2.5 GT/s lanes: 1 port: e000 bus-ID: 04:00.0
chip-ID: 8086:1539 class-ID: 0200
IF: enp4s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
Info: services: NetworkManager, smbd, systemd-timesyncd
Bluetooth:
Device-1: Broadcom BCM20702A0 Bluetooth 4.0 driver: btusb v: 0.8 type: USB
rev: 2.0 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-3:3 chip-ID: 0a5c:21e8
class-ID: fe01 serial: <filter>
Report: btmgmt ID: hci0 rfk-id: 1 state: up address: <filter> bt-v: 4.0
lmp-v: 6 status: discoverable: no pairing: no class-ID: 6c0104
Drives:
Local Storage: total: 3.68 TiB used: 1.43 TiB (38.8%)
SMART Message: Unable to run smartctl. Root privileges required.
ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: SK Hynix model: HFS001TDE9X081N
size: 953.87 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
lanes: 4 tech: SSD serial: <filter> fw-rev: 41720C20 temp: 40.9 C
scheme: MBR
ID-2: /dev/nvme1n1 maj-min: 259:2 vendor: SK Hynix model: HFS001TDE9X081N
size: 953.87 GiB block-size: physical: 512 B logical: 512 B speed: 31.6 Gb/s
lanes: 4 tech: SSD serial: <filter> fw-rev: 41720C20 temp: 44.9 C
scheme: GPT
ID-3: /dev/sda maj-min: 8:0 vendor: Samsung model: SSD 850 EVO 500GB
size: 465.76 GiB block-size: physical: 512 B logical: 512 B speed: 6.0 Gb/s
tech: SSD serial: <filter> fw-rev: 2B6Q scheme: MBR
ID-4: /dev/sdb maj-min: 8:16 vendor: Samsung model: SSD 850 EVO 500GB
size: 465.76 GiB block-size: physical: 512 B logical: 512 B speed: 6.0 Gb/s
tech: SSD serial: <filter> fw-rev: 2B6Q scheme: GPT
ID-5: /dev/sdc maj-min: 8:32 vendor: Western Digital
model: WD10EADS-00L5B1 size: 931.51 GiB block-size: physical: 512 B
logical: 512 B speed: 3.0 Gb/s tech: N/A serial: <filter> fw-rev: 1A01
scheme: MBR
Partition:
ID-1: / raw-size: 919.18 GiB size: 919.18 GiB (100.00%)
used: 260.07 GiB (28.3%) fs: btrfs dev: /dev/nvme1n1p2 maj-min: 259:4
ID-2: /boot/efi raw-size: 300 MiB size: 299.4 MiB (99.80%)
used: 584 KiB (0.2%) fs: vfat dev: /dev/nvme1n1p1 maj-min: 259:3
ID-3: /home raw-size: 919.18 GiB size: 919.18 GiB (100.00%)
used: 260.07 GiB (28.3%) fs: btrfs dev: /dev/nvme1n1p2 maj-min: 259:4
ID-4: /var/log raw-size: 919.18 GiB size: 919.18 GiB (100.00%)
used: 260.07 GiB (28.3%) fs: btrfs dev: /dev/nvme1n1p2 maj-min: 259:4
ID-5: /var/tmp raw-size: 919.18 GiB size: 919.18 GiB (100.00%)
used: 260.07 GiB (28.3%) fs: btrfs dev: /dev/nvme1n1p2 maj-min: 259:4
Swap:
Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
ID-1: swap-1 type: zram size: 31.27 GiB used: 0 KiB (0.0%) priority: 100
comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 12 dev: /dev/zram0
ID-2: swap-2 type: partition size: 34.39 GiB used: 0 KiB (0.0%)
priority: -2 dev: /dev/nvme1n1p3 maj-min: 259:5
Sensors:
System Temperatures: cpu: 34.0 C mobo: 32.0 C gpu: amdgpu temp: 55.0 C
mem: 56.0 C
Fan Speeds (rpm): cpu: 1192 case-1: 536 case-2: 845 case-3: 853
gpu: amdgpu fan: 0
Power: 12v: 10.19 5v: N/A 3.3v: N/A vbat: 3.23 gpu: amdgpu watts: 19.00
Info:
Memory: total: 32 GiB available: 31.27 GiB used: 12.79 GiB (40.9%)
Processes: 505 Power: uptime: 6h 18m states: freeze,mem,disk suspend: deep
avail: s2idle wakeups: 1 hibernate: platform avail: shutdown, reboot,
suspend, test_resume image: 12.5 GiB services: org_kde_powerdevil,
power-profiles-daemon, upowerd Init: systemd v: 256 default: graphical
tool: systemctl
Packages: pm: pacman pkgs: 1793 libs: 534 tools: octopi,pamac,paru,yay
Compilers: clang: 18.1.8 gcc: 14.2.1 Shell: garuda-inxi default: fish
v: 3.7.1 running-in: konsole inxi: 3.3.35
Garuda (2.6.26-1):
System install date: 2024-08-22
Last full system update: 2024-09-14
Is partially upgraded: No
Relevant software: snapper NetworkManager dracut
Windows dual boot: No/Undetected
Failed units:
