Error in every Kernel update?

Since every update, system always send this to console:

( 7/18) Install DKMS modules
==> dkms install --no-depmod broadcom-wl/6.30.223.271 -k 6.10.1-zen1-1-zen
==> dkms install --no-depmod nvidia/470.256.02 -k 6.10.1-zen1-1-zen
==> dkms install --no-depmod vmware-workstation/17.5.2_23775571 -k 6.10.1-zen1-1-zen
==> depmod 6.10.1-zen1-1-zen
==> ERROR: Missing 6.10.1-arch1-1 kernel modules tree for module nvidia/470.256.02.
==> ERROR: Missing 6.10.1-arch1-1 kernel modules tree for module broadcom-wl/6.30.223.271.
==> ERROR: Missing 6.10.1-arch1-1 kernel modules tree for module vmware-workstation/17.5.2_23775571.

And the system continues with correct updating.

garuda-inxi
System:
  Kernel: 6.10.1-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 14.1.1
    clocksource: tsc avail: hpet,acpi_pm
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
    root=UUID=e38ee0d4-0c6f-4526-9adf-c7cf1a1f23b5 rw rootflags=subvol=@
    quiet loglevel=3 ibt=off
  Desktop: Cinnamon v: 6.2.7 tk: GTK v: 3.24.43 wm: Muffin v: 6.2.0 tools:
    avail: cinnamon-screensaver,xautolock vt: 7 dm: LightDM v: 1.32.0
    Distro: Garuda base: Arch Linux
Machine:
  Type: Laptop System: LENOVO product: VIQYx v: INVALID
    serial: <superuser required> Chassis: type: 10 v: INVALID
    serial: <superuser required>
  Mobo: LENOVO model: VIQY0Y1 v: 31900006WIN8 STD MBR IPG
    serial: <superuser required> part-nu: LENOVO_BI_IDEAPAD
    uuid: <superuser required> UEFI: LENOVO v: 74CN26WW(107T22)
    date: 05/09/2013
Battery:
  ID-1: BAT1 charge: 42.0 Wh (100.0%) condition: 42.0/56.4 Wh (74.4%)
    power: 655.4 W volts: 12.1 min: 10.8 model: LENOVO PABAS0241231 type: Li-ion
    serial: <filter> status: full
CPU:
  Info: model: Intel Core i7-4700MQ bits: 64 type: MT MCP arch: Haswell
    gen: core 4 level: v3 note: check built: 2013-15 process: Intel 22nm
    family: 6 model-id: 0x3C (60) stepping: 3 microcode: 0x28
  Topology: cpus: 1x cores: 4 tpc: 2 threads: 8 smt: enabled cache:
    L1: 256 KiB desc: d-4x32 KiB; i-4x32 KiB L2: 1024 KiB desc: 4x256 KiB
    L3: 6 MiB desc: 1x6 MiB
  Speed (MHz): avg: 3169 high: 3220 min/max: 800/3400 scaling:
    driver: intel_cpufreq governor: performance cores: 1: 3201 2: 3119 3: 3220
    4: 3192 5: 3192 6: 3181 7: 3192 8: 3059 bogomips: 38307
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
  Vulnerabilities: <filter>
Graphics:
  Device-1: Intel 4th Gen Core Processor Integrated Graphics vendor: Lenovo
    driver: i915 v: kernel arch: Gen-7.5 process: Intel 22nm built: 2013 ports:
    active: VGA-1,eDP-1 empty: HDMI-A-1 bus-ID: 00:02.0 chip-ID: 8086:0416
    class-ID: 0300
  Device-2: NVIDIA GK107M [GeForce GT 750M] vendor: Lenovo driver: nvidia
    v: 470.256.02 alternate: nouveau,nvidia_drm non-free: series: 470.xx+
    status: legacy-active (EOL~2024-09-xx) arch: Kepler code: GKxxx
    process: TSMC 28nm built: 2012-2018 pcie: gen: 1 speed: 2.5 GT/s lanes: 8
    link-max: gen: 3 speed: 8 GT/s lanes: 16 bus-ID: 01:00.0
    chip-ID: 10de:0fe4 class-ID: 0300
  Device-3: Realtek Lenovo EasyCamera driver: uvcvideo type: USB rev: 2.0
    speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 3-1:2 chip-ID: 0bda:58b9
    class-ID: 0e02 serial: <filter>
  Display: x11 server: X.Org v: 21.1.13 with: Xwayland v: 24.1.1 driver: X:
    loaded: modesetting,nvidia unloaded: nouveau alternate: fbdev,intel,nv,vesa
    dri: crocus gpu: i915 display-ID: :0 screens: 1
  Screen-1: 0 s-res: 2966x900 s-dpi: 96 s-size: 784x238mm (30.87x9.37")
    s-diag: 819mm (32.26")
  Monitor-1: VGA-1 pos: left model: LG (GoldStar) 20EN33 serial: <filter>
    built: 2013 res: 1600x900 hz: 60 dpi: 92 gamma: 1.2
    size: 443x249mm (17.44x9.8") diag: 508mm (20") ratio: 16:9 modes:
    max: 1600x900 min: 720x400
  Monitor-2: eDP-1 pos: primary,right model: LG Display 0x033a built: 2011
    res: 1366x768 hz: 60 dpi: 101 gamma: 1.2 size: 344x194mm (13.54x7.64")
    diag: 395mm (15.5") ratio: 16:9 modes: 1366x768
  API: EGL v: 1.5 hw: drv: intel crocus drv: nvidia platforms: device: 0
    drv: nvidia device: 2 drv: crocus device: 3 drv: swrast surfaceless:
    drv: swrast x11: drv: crocus inactive: gbm,wayland,device-1
  API: OpenGL v: 4.6.0 compat-v: 4.5 vendor: intel mesa v: 24.1.4-arch1.2
    glx-v: 1.4 direct-render: yes renderer: Mesa Intel HD Graphics 4600 (HSW
    GT2) device-ID: 8086:0416 memory: 1.46 GiB unified: yes
  API: Vulkan v: 1.3.279 layers: 4 device: 0 type: integrated-gpu name: Intel
    HD Graphics 4600 (HSW GT2) driver: mesa intel v: 24.1.4-arch1.2
    device-ID: 8086:0416 surfaces: xcb,xlib device: 1 type: discrete-gpu
    name: NVIDIA GeForce GT 750M driver: nvidia v: 470.256.02
    device-ID: 10de:0fe4 surfaces: xcb,xlib device: 2 type: cpu name: llvmpipe
    (LLVM 18.1.8 256 bits) driver: mesa llvmpipe v: 24.1.4-arch1.2 (LLVM
    18.1.8) device-ID: 10005:0000 surfaces: xcb,xlib
Audio:
  Device-1: Intel Xeon E3-1200 v3/4th Gen Core Processor HD Audio
    vendor: Lenovo driver: snd_hda_intel v: kernel bus-ID: 00:03.0
    chip-ID: 8086:0c0c class-ID: 0403
  Device-2: Intel 8 Series/C220 Series High Definition Audio vendor: Lenovo
    driver: snd_hda_intel v: kernel bus-ID: 00:1b.0 chip-ID: 8086:8c20
    class-ID: 0403
  Device-3: NVIDIA GK107 HDMI Audio vendor: Lenovo driver: snd_hda_intel
    v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 8 link-max: lanes: 16
    bus-ID: 01:00.1 chip-ID: 10de:0e1b class-ID: 0403
  API: ALSA v: k6.10.1-zen1-1-zen status: kernel-api tools: N/A
  Server-1: PipeWire v: 1.2.1 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Qualcomm Atheros QCA8171 Gigabit Ethernet vendor: Lenovo
    driver: alx v: kernel pcie: gen: 1 speed: 2.5 GT/s lanes: 1 port: 3000
    bus-ID: 08:00.0 chip-ID: 1969:10a1 class-ID: 0200
  IF: enp8s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
  Device-2: Broadcom BCM4352 802.11ac Dual Band Wireless Network Adapter
    vendor: Lenovo driver: wl v: kernel modules: bcma pcie: gen: 2 speed: 5 GT/s
    lanes: 1 bus-ID: 09:00.0 chip-ID: 14e4:43b1 class-ID: 0280
  IF: wlp9s0 state: down mac: <filter>
  IF-ID-1: vmnet1 state: unknown speed: N/A duplex: N/A mac: <filter>
  IF-ID-2: vmnet8 state: unknown speed: N/A duplex: N/A mac: <filter>
  Info: services: NetworkManager, smbd, systemd-timesyncd
Bluetooth:
  Device-1: Realtek Bluetooth 5.1 Radio driver: btusb v: 0.8 type: USB
    rev: 1.1 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-3.2:6
    chip-ID: 0bda:a725 class-ID: e001 serial: <filter>
  Report: btmgmt ID: hci1 rfk-id: 3 state: up address: <filter> bt-v: 5.1
    lmp-v: 10 status: discoverable: no pairing: no class-ID: 6c010c
  Device-2: Lite-On BCM20702A0 driver: btusb v: 0.8 type: USB rev: 2.0
    speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 3-7:5 chip-ID: 04ca:200b
    class-ID: fe01 serial: <filter>
  Report: ID: hci0 rfk-id: 2 state: up address: <filter> bt-v: 4.0 lmp-v: 6
    status: discoverable: no pairing: no class-ID: 6c010c
Drives:
  Local Storage: total: 2.27 TiB used: 1.08 TiB (47.3%)
  SMART Message: Unable to run smartctl. Root privileges required.
  ID-1: /dev/sda maj-min: 8:0 vendor: Crucial model: CT500MX500SSD1
    size: 465.76 GiB block-size: physical: 4096 B logical: 512 B speed: 3.0 Gb/s
    tech: SSD serial: <filter> fw-rev: 023 scheme: GPT
  ID-2: /dev/sdb maj-min: 8:16 vendor: Crucial model: CT2000MX500SSD1
    size: 1.82 TiB block-size: physical: 4096 B logical: 512 B speed: 6.0 Gb/s
    tech: SSD serial: <filter> fw-rev: 023 scheme: GPT
Partition:
  ID-1: / raw-size: 100.42 GiB size: 100.42 GiB (100.00%)
    used: 49.92 GiB (49.7%) fs: btrfs dev: /dev/sdb4 maj-min: 8:20
  ID-2: /boot/efi raw-size: 1.86 GiB size: 1.86 GiB (99.80%)
    used: 584 KiB (0.0%) fs: vfat dev: /dev/sdb1 maj-min: 8:17
  ID-3: /home raw-size: 309.96 GiB size: 309.96 GiB (100.00%)
    used: 175.75 GiB (56.7%) fs: btrfs dev: /dev/sdb5 maj-min: 8:21
  ID-4: /var/log raw-size: 100.42 GiB size: 100.42 GiB (100.00%)
    used: 49.92 GiB (49.7%) fs: btrfs dev: /dev/sdb4 maj-min: 8:20
  ID-5: /var/tmp raw-size: 100.42 GiB size: 100.42 GiB (100.00%)
    used: 49.92 GiB (49.7%) fs: btrfs dev: /dev/sdb4 maj-min: 8:20
Swap:
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
  ID-1: swap-1 type: zram size: 15.35 GiB used: 0 KiB (0.0%) priority: 100
    comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 8 dev: /dev/zram0
  ID-2: swap-2 type: partition size: 20.12 GiB used: 0 KiB (0.0%)
    priority: -2 dev: /dev/sdb3 maj-min: 8:19
Sensors:
  System Temperatures: cpu: 65.0 C mobo: N/A
  Fan Speeds (rpm): N/A
Info:
  Memory: total: 16 GiB note: est. available: 15.35 GiB used: 3.5 GiB (22.8%)
  Processes: 319 Power: uptime: 5m states: freeze,mem,disk suspend: deep
    avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
    suspend, test_resume image: 6.11 GiB services: csd-power,upowerd
    Init: systemd v: 256 default: graphical tool: systemctl
  Packages: pm: pacman pkgs: 1541 libs: 416 tools: octopi,paru Compilers:
    gcc: 14.1.1 Shell: garuda-inxi default: fish v: 3.7.1
    running-in: gnome-terminal inxi: 3.3.35
Garuda (2.6.26-1):
  System install date:     2024-02-04
  Last full system update: 2024-07-26
  Is partially upgraded:   No
  Relevant software:       snapper NetworkManager dracut
  Windows dual boot:       No/Undetected
  Failed units:

Dear pergamin,

please highlight the first ERROR line, copy it, click the search button, paste the line into it, remove the specific version numbers and hit enter! The first match will tell you everything…

5 Likes

Done, “No results found”.

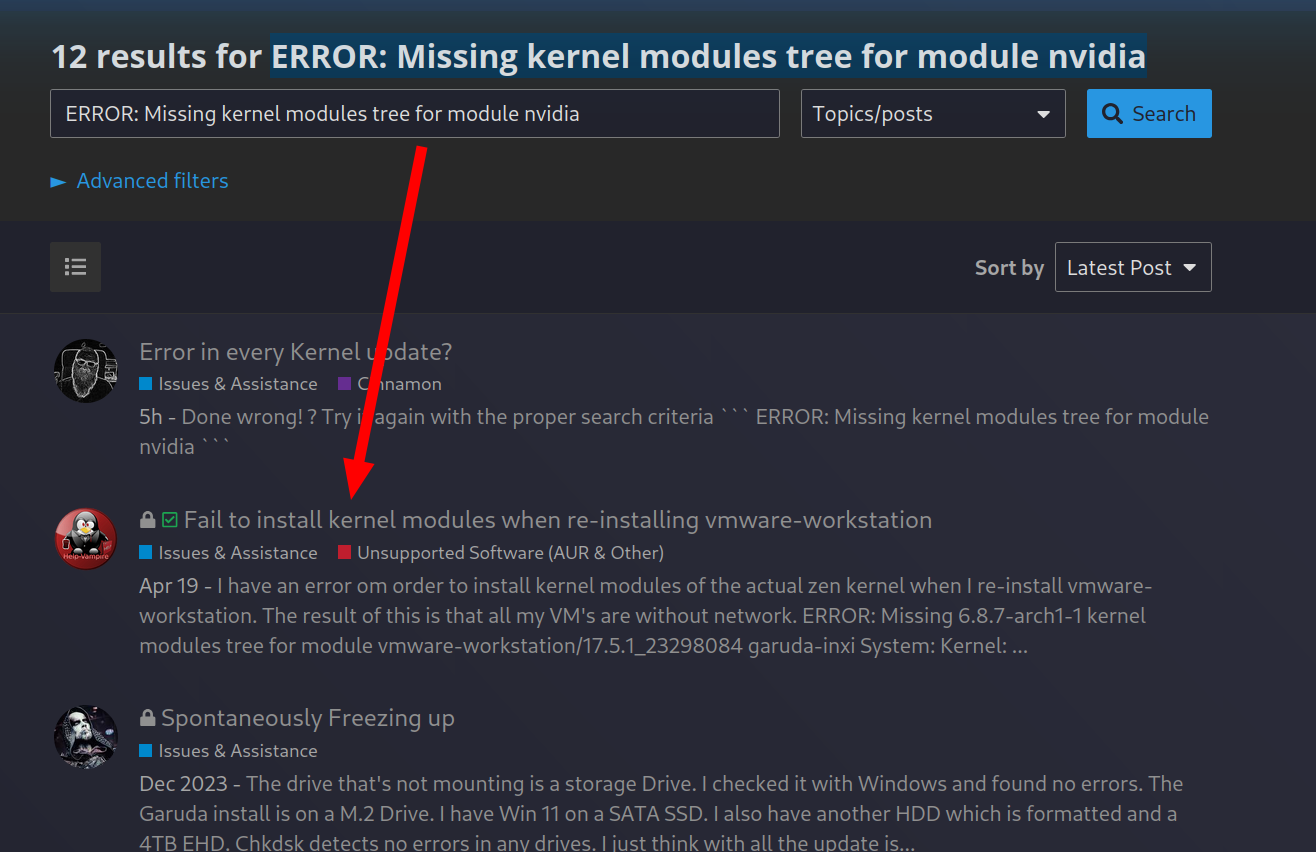

Done wrong! ? Try it again with the proper search criteria

```
ERROR: Missing kernel modules tree for module nvidia
```

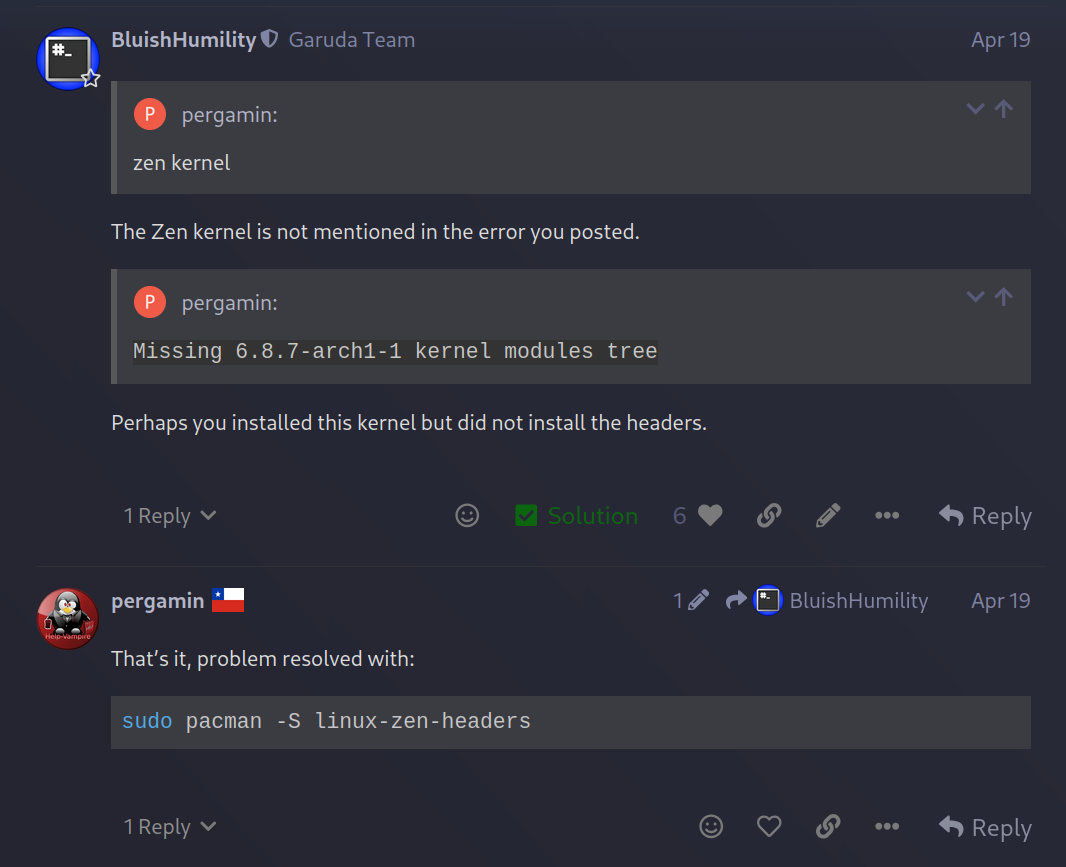

I think @veitw is pointing out that we already solved this exact issue in the past, in another topic.

Here is the solution from that thread:

Try installing the headers for the kernel in your error message.

sudo pacman -S linux-headers
2 Likes

Now he got what he wanted, a copy and paste solution

3 Likes

Done, almost three times… And it gives me that headers are ok… or I’m missing something?


So, I have not installed again the headers.

Any suggestions?

Be sure to install the headers for your other kernels as well.

Also zen headers are installed.


Any suggestions?

Infact, on every kernel update the process fail on installing modules, NVIDIA, Broadcom, vmware-workstation.

Instead of screenshots, please post your terminal output as text, then highlight it and format with the </> button (or press Ctrl+E).

Let’s take a look at the output of these commands:

pacman -Qs linux-headers
eza -1 /boot
dkms status
sudo dkms autoinstall
pacman -Qs linux-headers
local/linux-headers 6.10.2.arch1-1
    Headers and scripts for building modules for the Linux kernel

eza -1 /boot
efi
grub
initramfs-linux-lts-fallback.img
initramfs-linux-lts.img
initramfs-linux-zen-fallback.img
initramfs-linux-zen.img
intel-ucode.img
memtest86+
vmlinuz-linux-lts
vmlinuz-linux-zen

dkms status
Error! Could not locate dkms.conf file.
File: /var/lib/dkms/nvidia/470.223.02/source/dkms.conf does not exist.
broadcom-wl/6.30.223.271, 6.10.2-zen1-1-zen, x86_64: installed
broadcom-wl/6.30.223.271, 6.6.42-1-lts, x86_64: installed
broadcom-wl/6.30.223.271, 6.9.8-zen1-1-zen, x86_64: built (WARNING! Missing some built modules!)

sudo dkms autoinstall
[sudo] password for siegfried:
Error! Could not locate dkms.conf file.
File: /var/lib/dkms/nvidia/470.223.02/source/dkms.conf does not exist.

Do you have these headers instealled?

sudo pacman -S linux-lts-headers

Let’s try removing the DKMS modules and reinstalling those packages.

sudo dkms remove broadcom-wl/6.30.223.271 --all
sudo dkms remove nvidia/470.256.02 --all
sudo dkms remove vmware-workstation/17.5.2_23775571 --all
sudo pacman -S --noconfirm nvidia-dkms broadcom-wl-dkms vmware-workstation-dkms
sudo dkms remove vmware-workstation/17.5.2_23775571 --all
Module vmware-workstation-17.5.2_23775571 for kernel 6.6.42-1-lts (x86_64).
Before uninstall, this module version was ACTIVE on this kernel.

vmmon.ko.zst:
 - Uninstallation
   - Deleting from: /usr/lib/modules/6.6.42-1-lts/updates/dkms/
 - Original module
   - No original module was found for this module on this kernel.
   - Use the dkms install command to reinstall any previous module version.

vmnet.ko.zst:
 - Uninstallation
   - Deleting from: /usr/lib/modules/6.6.42-1-lts/updates/dkms/
 - Original module
   - No original module was found for this module on this kernel.
   - Use the dkms install command to reinstall any previous module version.
depmod...
Module vmware-workstation-17.5.2_23775571 for kernel 6.10.2-zen1-1-zen (x86_64).
Before uninstall, this module version was ACTIVE on this kernel.

vmmon.ko.zst:
 - Uninstallation
   - Deleting from: /usr/lib/modules/6.10.2-zen1-1-zen/updates/dkms/
 - Original module
   - No original module was found for this module on this kernel.
   - Use the dkms install command to reinstall any previous module version.

vmnet.ko.zst:
 - Uninstallation
   - Deleting from: /usr/lib/modules/6.10.2-zen1-1-zen/updates/dkms/
 - Original module
   - No original module was found for this module on this kernel.
   - Use the dkms install command to reinstall any previous module version.
depmod...
Deleting module vmware-workstation-17.5.2_23775571 completely from the DKMS tree.

 ╭─siegfried@siegfried in ~ as 🧙 took 3s
 ╰─λ sudo pacman -S --noconfirm nvidia-dkms broadcom-wl-dkms vmware-workstation-dkms
warning: broadcom-wl-dkms-6.30.223.271-37 is up to date -- reinstalling
error: target not found: vmware-workstation-dkms

Also, after this:

sudo pacman -S linux-lts-headers

And this:

sudo pacman -S linux-zen-headers

It seems that all is functional with kernel modules. How to check?

sudo dkms status
1 Like

OK, it seems good, but, I don’t have kernel 6.9.8-zen1-1-zen, x86_64, and File: /var/lib/dkms/nvidia/470.223.02/source/dkms.conf does not exist.

[sudo] password for siegfried:
Error! Could not locate dkms.conf file.
File: /var/lib/dkms/nvidia/470.223.02/source/dkms.conf does not exist.
broadcom-wl/6.30.223.271, 6.10.2-zen1-1-zen, x86_64: installed
broadcom-wl/6.30.223.271, 6.6.42-1-lts, x86_64: installed
broadcom-wl/6.30.223.271, 6.9.8-zen1-1-zen, x86_64: built (WARNING! Missing some built modules!)

Yes, that looks fine.

This is an old version of the kernel (you have 6.10.2 installed, which looks to be set up correctly). If you want you can just remove this old one. I think this should do it:

sudo dkms remove broadcom-wl/6.30.223.271 -k 6.9.8-zen1-1-zen

This topic was automatically closed 2 days after the last reply. New replies are no longer allowed.
