EGL issue causing crashes

Issues & Assistance Unsupported Software (AUR & Other)
1

For the last few weeks, there’s been a problem I have no idea how to properly diagnose, but from what fiddling I’ve done, might be something to do with EGL and/or Mesa. This has been resulting in things such as:

  • FireDragon crashes if it ever tries to play video (Chromium-based browsers such as Vivaldi seem to be fine)
  • Kmail fails to render mail at all, showing only a white rectangle instead (both in preview and popped out into their own window)
  • OBS game capture causes programs to fail to start and hang indefinitely with the error libEGL warning: egl: failed to create dri2 screen (but only for some programs?)
  • inxi hangs indefinitely as soon as it reaches Graphics
  • eglinfo hangs indefinitely when it starts trying to pull information on Mesa OpenGL

Things that hang indefinitely will generally run fine as root, provided they run as root at all (for instance, BizHawk will refuse to run as root). Thus, the following output of garuda-inxi is run under sudo, as that’s the only way it’ll get through.

System:
  Kernel: 6.15.4-2-cachyos arch: x86_64 bits: 64 compiler: gcc v: 15.1.1
    clocksource: tsc avail: acpi_pm
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-cachyos
    root=UUID=a59ad0e7-ca03-4de3-909b-1543140f34a7 rw rootflags=subvol=@
    rd.luks.uuid=0aad11c6-cf6f-4db6-8384-c4f53d213620 loglevel=3
    systemd.unified_cgroup_hierarchy=1 intel_iommu=on nvidia-drm.modeset=1
    nvidia-drm.fbdev=1 splash ibt=off
  Desktop: KDE Plasma v: 6.4.2 tk: Qt v: N/A wm: kwin_wayland dm: SDDM
    Distro: Garuda base: Arch Linux
Machine:
  Type: Desktop System: ASUS product: N/A v: N/A serial: N/A
  Mobo: ASUSTeK model: ROG STRIX B660-A GAMING WIFI D4 v: Rev 1.xx
    serial: <filter> part-nu: SKU uuid: a0a32d12-72cd-c9ab-042d-50ebf69be63e
    UEFI: American Megatrends v: 3212 date: 05/24/2024
CPU:
  Info: model: 12th Gen Intel Core i9-12900K socket: LGA1700 bits: 64
    type: MST AMCP arch: Alder Lake gen: core 12 level: v3 note: check
    built: 2021+ process: Intel 7 (10nm ESF) family: 6 model-id: 0x97 (151)
    stepping: 2 microcode: 0x3A
  Topology: cpus: 1x dies: 1 clusters: 10 cores: 16 threads: 24 mt: 8 tpc: 2
    st: 8 smt: enabled cache: L1: 1.4 MiB desc: d-8x32 KiB, 8x48 KiB; i-8x32
    KiB, 8x64 KiB L2: 14 MiB desc: 8x1.2 MiB, 2x2 MiB L3: 30 MiB
    desc: 1x30 MiB
  Speed (MHz): avg: 800 min/max: 800/5100:5200:3900 base/boost: 4851/5200
    scaling: driver: intel_pstate governor: powersave volts: 1.3 V
    ext-clock: 100 MHz cores: 1: 800 2: 800 3: 800 4: 800 5: 800 6: 800 7: 800
    8: 800 9: 800 10: 800 11: 800 12: 800 13: 800 14: 800 15: 800 16: 800
    17: 800 18: 800 19: 800 20: 800 21: 800 22: 800 23: 800 24: 800
    bogomips: 152985
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
  Vulnerabilities: <filter>
Graphics:
  Device-1: NVIDIA GA106 [GeForce RTX 3060 Lite Hash Rate] vendor: ASUSTeK
    driver: nvidia v: 575.64.03 alternate: nouveau,nvidia_drm
    non-free: 550-570.xx+ status: current (as of 2025-04; EOL~2026-12-xx)
    arch: Ampere code: GAxxx process: TSMC n7 (7nm) built: 2020-2023 pcie:
    gen: 4 speed: 16 GT/s lanes: 16 ports: active: none
    off: DP-1,DP-3,HDMI-A-1 empty: DP-2,HDMI-A-2 bus-ID: 01:00.0
    chip-ID: 10de:2504 class-ID: 0300
  Device-2: Logitech Webcam C270 driver: snd-usb-audio,uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.3.3:18
    chip-ID: 046d:0825 class-ID: 0102 serial: <filter>
  Device-3: AVerMedia Live Gamer MINI driver: snd-usb-audio,uvcvideo
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.4.2:16
    chip-ID: 07ca:3311 class-ID: 0102 serial: <filter>
  Display: unspecified server: X.Org v: 24.1.8 with: Xwayland v: 24.1.8
    compositor: kwin_wayland driver: X: loaded: modesetting,nvidia
    unloaded: nouveau alternate: fbdev,intel,nv,vesa dri: iris
    gpu: nvidia,nvidia-nvswitch display-ID: :0 screens: 1
  Screen-1: 0 s-res: 5760x1080 s-dpi: 96 s-size: 1524x286mm (60.00x11.26")
    s-diag: 1551mm (61.05")
  Monitor-1: DP-1 note: disabled pos: primary,center model: Gigabyte G24F 2
    serial: <filter> built: 2023 res: mode: 1920x1080 hz: 120 scale: 100% (1)
    dpi: 93 gamma: 1.2 size: 527x296mm (20.75x11.65") diag: 595mm (23.4")
    ratio: 16:9 modes: max: 1920x1080 min: 640x480
  Monitor-2: DP-3 note: disabled pos: left model: HP E223 serial: <filter>
    built: 2017 res: mode: 1920x1080 hz: 60 scale: 100% (1) dpi: 102 gamma: 1.2
    size: 476x268mm (18.74x10.55") diag: 546mm (21.5") ratio: 16:9 modes:
    max: 1920x1080 min: 640x480
  Monitor-3: HDMI-A-1 note: disabled pos: right model: HDMI LCD TV
    serial: <filter> built: 2007 res: mode: 1920x1080 hz: 60 scale: 100% (1)
    dpi: 101 gamma: 1.2 size: 484x272mm (19.06x10.71") diag: 1014mm (39.9")
    ratio: 15:9 modes: max: 1360x768 min: 640x480
  API: EGL v: 1.5 hw: drv: nvidia platforms: device: 0 drv: nvidia device: 2
    drv: swrast gbm: drv: nvidia surfaceless: drv: nvidia x11: drv: nvidia
    inactive: wayland,device-1
  API: OpenGL v: 4.6.0 compat-v: 4.5 vendor: nvidia mesa v: 575.64.03
    glx-v: 1.4 direct-render: yes renderer: NVIDIA GeForce RTX 3060/PCIe/SSE2
    memory: 11.72 GiB
  API: Vulkan v: 1.4.313 layers: 13 device: 0 type: discrete-gpu
    name: NVIDIA GeForce RTX 3060 driver: nvidia v: 575.64.03
    device-ID: 10de:2504 surfaces: N/A device: 1 type: cpu name: llvmpipe
    (LLVM 20.1.7 256 bits) driver: mesa llvmpipe v: 25.1.5-arch1.1 (LLVM
    20.1.7) device-ID: 10005:0000 surfaces: N/A
  Info: Tools: api: clinfo, eglinfo, glxinfo, vulkaninfo
    de: kscreen-console,kscreen-doctor gpu: corectrl, nvidia-settings,
    nvidia-smi wl: wayland-info x11: xdpyinfo, xprop, xrandr
Audio:
  Device-1: Intel Alder Lake-S HD Audio vendor: ASUSTeK driver: snd_hda_intel
    v: kernel alternate: snd_soc_avs,snd_sof_pci_intel_tgl bus-ID: 00:1f.3
    chip-ID: 8086:7ad0 class-ID: 0403
  Device-2: NVIDIA GA106 High Definition Audio vendor: ASUSTeK
    driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
    bus-ID: 01:00.1 chip-ID: 10de:228e class-ID: 0403
  Device-3: ASUSTek USB Audio driver: hid-generic,snd-usb-audio,usbhid
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-8:6
    chip-ID: 0b05:1a16 class-ID: 0300
  Device-4: C-Media Blue Snowball driver: hid-generic,snd-usb-audio,usbhid
    type: USB rev: 1.1 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-9.3.2:17
    chip-ID: 0d8c:0005 class-ID: 0300 serial: <filter>
  Device-5: Logitech Webcam C270 driver: snd-usb-audio,uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.3.3:18
    chip-ID: 046d:0825 class-ID: 0102 serial: <filter>
  Device-6: AVerMedia Live Gamer MINI driver: snd-usb-audio,uvcvideo
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.4.2:16
    chip-ID: 07ca:3311 class-ID: 0102 serial: <filter>
  API: ALSA v: k6.15.4-2-cachyos status: kernel-api with: aoss
    type: oss-emulator tools: N/A
  Server-1: sndiod v: N/A status: off tools: aucat,midicat,sndioctl
  Server-2: PipeWire v: 1.4.6 status: n/a (root, process) with:
    1: pipewire-pulse status: active 2: wireplumber status: active
    3: pipewire-alsa type: plugin 4: pw-jack type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Intel Alder Lake-S PCH CNVi WiFi driver: iwlwifi v: kernel
    bus-ID: 00:14.3 chip-ID: 8086:7af0 class-ID: 0280
  IF: wlo1 state: down mac: <filter>
  Device-2: Intel Ethernet I225-V vendor: ASUSTeK driver: igc v: kernel
    pcie: gen: 2 speed: 5 GT/s lanes: 1 port: N/A bus-ID: 05:00.0
    chip-ID: 8086:15f3 class-ID: 0200
  IF: enp5s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
  IF-ID-1: proton0 state: unknown speed: N/A duplex: N/A mac: N/A
  IF-ID-2: pvpnksintrf0 state: unknown speed: N/A duplex: N/A mac: <filter>
  IF-ID-3: virbr0 state: down mac: <filter>
  Info: services: NetworkManager, smbd, sshd, systemd-timesyncd,
    wpa_supplicant
Bluetooth:
  Device-1: Intel AX201 Bluetooth driver: btusb v: 0.8 type: USB rev: 2.0
    speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-14:11 chip-ID: 8087:0026
    class-ID: e001
  Report: btmgmt ID: hci0 rfk-id: 0 state: up address: N/A
RAID:
  Hardware-1: Intel Volume Management Device NVMe RAID Controller driver: vmd
    v: 0.6 port: N/A bus-ID: 00:0e.0 chip-ID: 8086:467f rev: class-ID: 0104
Drives:
  Local Storage: total: 6.41 TiB used: 3.08 TiB (48.0%)
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Kingston model: SKC3000D2048G
    size: 1.86 TiB block-size: physical: 512 B logical: 512 B speed: 63.2 Gb/s
    lanes: 4 tech: SSD serial: <filter> fw-rev: EIFK31.6 temp: 39.9 C
    scheme: GPT
  SMART: yes health: PASSED on: 2y 252d 7h cycles: 76
    read-units: 7,041,495,570 [3.60 PB] written-units: 1,413,682,187 [723 TB]
  ID-2: /dev/sda maj-min: 8:0 vendor: Western Digital
    model: WD40EZAZ-19SF3B0 family: Blue (SMR) size: 3.64 TiB block-size:
    physical: 4096 B logical: 512 B sata: 3.1 speed: 6.0 Gb/s tech: HDD
    rpm: 5400 serial: <filter> fw-rev: 0A80 temp: 37 C scheme: GPT
  SMART: yes state: enabled health: PASSED on: 2y 250d 14h cycles: 76
  ID-3: /dev/sdb maj-min: 8:16 vendor: Western Digital
    model: WD10JMVW-11AJGS3 family: Elements / My Passport (USB, AF)
    size: 931.48 GiB block-size: physical: 4096 B logical: 512 B type: USB
    rev: 3.0 spd: 5 Gb/s lanes: 1 mode: 3.2 gen-1x1 sata: 3.0 speed: 3.0 Gb/s
    tech: HDD rpm: 5400 serial: <filter> fw-rev: 1072 drive-rev: 01.01A01
    temp: 41 C scheme: GPT
  SMART: yes state: enabled health: PASSED on: 8y 89d 19h cycles: 1221
Partition:
  ID-1: / raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 309.13 GiB (53.0%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
  ID-2: /boot/efi raw-size: 100 MiB size: 96 MiB (96.00%)
    used: 32.5 MiB (33.9%) fs: vfat block-size: 512 B dev: /dev/nvme0n1p1
    maj-min: 259:1
  ID-3: /home raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 309.13 GiB (53.0%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
  ID-4: /var/log raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 309.13 GiB (53.0%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
  ID-5: /var/tmp raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 309.13 GiB (53.0%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
Swap:
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
  ID-1: swap-1 type: zram size: 62.53 GiB used: 0 KiB (0.0%) priority: 100
    comp: zstd avail: lzo-rle,lzo,lz4,lz4hc,deflate,842 dev: /dev/zram0
Sensors:
  System Temperatures: cpu: 32.0 C mobo: N/A
  Fan Speeds (rpm): N/A
Info:
  Memory: total: 64 GiB available: 62.53 GiB used: 9.74 GiB (15.6%)
  Processes: 658 Power: uptime: 19m states: freeze,mem,disk suspend: deep
    avail: s2idle wakeups: 0 hibernate: platform avail: shutdown, reboot,
    suspend, test_resume image: 24.91 GiB services: org_kde_powerdevil,
    power-profiles-daemon, upowerd Init: systemd v: 257 default: graphical
    tool: systemctl
  Packages: 2253 pm: dpkg pkgs: 0 pm: pacman pkgs: 2240 libs: 591
    tools: octopi,paru pm: flatpak pkgs: 13 Compilers: clang: 20.1.7 gcc: 15.1.1
    Shell: garuda-inxi (sudo) default: Bash v: 5.2.37 running-in: konsole
    inxi: 3.3.38
Garuda (2.7.3-1):
  System install date:     2025-05-30
  Last full system update: 2025-07-04
  Is partially upgraded:   No
  Relevant software:       snapper NetworkManager dracut nvidia-dkms
  Windows dual boot:       Yes
  Failed units:            clamav-clamonacc.service
2

Please

  • ONE issue per topic.
2 Likes
3

I have Similar problems with my system Should I make Five different post. asking so I dont get banned.

4

All of the problems I’m experiencing, I suspect to have a common root, which is why they’re all posted to the same thread. It doesn’t make sense to post multiple threads when one solution could fix all of them.

update: Firedragon appears to be fine now, at least. All of the other problems listed still persist.

5

Hi ,

I see some issues on your System but the most thing looks like a Nvidia driver issue.

  • OBS game capture causes programs to fail to start and hang indefinitely with the error libEGL warning: egl: failed to create dri2 screen (but only for some programs?)
  • inxi hangs indefinitely as soon as it reaches Graphics

i have here wayland instead of unspecified.

Device-1: NVIDIA GA106

  Relevant software:       snapper NetworkManager dracut **nvidia-dkms**

For your system you need the open-dkms drivers.

Open the Terminal and copy and paste this commands for installing it.

sudo pacman -Rdd garuda-nvidia-config nvidia-dkms nvidia-settings nvidia-utils opencl-nvidia libxnvctrl lib32-nvidia-utils lib32-opencl-nvidia gwe python-py3nvml

no reboot and install

sudo pacman -S nvidia-open-dkms egl-wayland lib32-nvidia-utils lib32-opencl-nvidia nvidia-settings opencl-nvidia nvidia-utils

if its asking for dependencies say yes (y Y)

then you can reboot and test again your OBS .

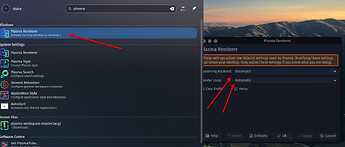

For this issue you can check the plasma-renderer settings are on Automatic if the nvidia driver install didnt help.(App-Launcher search Plasma Renderer

Kmail fails to render mail at all, showing only a white rectangle instead (both in preview and popped out into their own window)

image1296×554 50.6 KB

Did you have ClamAV installed and it isnt configured correctly?

If you dont need it you can remove it or reinstall it. I have it installed but not this errror message!

sudo pacman -Rdd clamav

maybe you should update your Bios:

 UEFI: American Megatrends v: 3212 date: 05/24/2024

Otherwise did you dry a X11 Session to see the same behavior? ( You need to install it manually look here in the Forum for it if needed)

Otherwise i would try a other kernel if cachyos makes issues :wink:

sudo pacman -S linux-zen linux-zen-headers
6

I have now switched to the open source drivers as you instructed. Unfortunately, this has not fixed the problem, but it hasn’t made anything worse, and I’ve kind of wanted to switch to the open drivers anyway but wasn’t sure how. Plasma Renderer settings are set to automatic.

It might need some fixing, but I don’t think this applies to this problem. I was talking to someone on Mastodon as well, and eventually I got my system to a place where Kmail was rendering mail properly, but none of the other problems were resolved.

I have done so at this point. No change to anything.

The Zen kernel exhibits the same issues as well.

I just have tried to open an X11 session. I’m pretty sure I’ve installed the packages correctly to get the X11 session set up, but it just punts me back out to the login screen when I try to access it.

7

Nice you try it this ways to get errors out. Can you post your inxi after a reboot again please?

wired my one is working but i did a new user account for all my DE`s . Other thing is why you dont asked earlier or i didnt see it however , i have many snapshots and can go back a month to find a working one for my issues. Maybe you have one to who is working i dont know. I read few weeks a obs issue too. I have no eglinfo issue and it run. i do a look later i have to go.

8

It make sense → reasons

  • issue with nvidia driver (egl + obs warnings) → not solved
  • issue with firedragon = current now solved
  • issue with apps and sudo rights → not solved
  • issue with clamav service → not solved

All packages (beginning with “nvidia-xxxxx”) are closed source / proprietary drivers.
(nvidia-prime not)
The open source driver for nvidia = nouveau and that’s a core kernel modul.

Pls post your current garuda-inxi + pacman -Qs nvidia

3 Likes
9

NVIDIA driver and issue with apps, I suspect to be directly related. FireDragon, I thought to be related, but it wasn’t. I never asked for help with ClamAV, so I’m not sure how that got conflated into this. Also, by “open source driver”, I meant nvidia-open*.

Anyway, garuda-inxi still does not complete as normal user, so here’s that as root, as well as pacman -Qs nvidia.

System:
  Kernel: 6.15.5-zen1-1-zen arch: x86_64 bits: 64 compiler: gcc v: 15.1.1
    clocksource: tsc avail: acpi_pm
    parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
    root=UUID=a59ad0e7-ca03-4de3-909b-1543140f34a7 rw rootflags=subvol=@
    rd.luks.uuid=0aad11c6-cf6f-4db6-8384-c4f53d213620 loglevel=3
    systemd.unified_cgroup_hierarchy=1 splash ibt=off
  Desktop: KDE Plasma v: 6.4.2 tk: Qt v: N/A wm: kwin_wayland dm: SDDM
    Distro: Garuda base: Arch Linux
Machine:
  Type: Desktop System: ASUS product: N/A v: N/A serial: N/A
  Mobo: ASUSTeK model: ROG STRIX B660-A GAMING WIFI D4 v: Rev 1.xx
    serial: <filter> part-nu: SKU uuid: a0a32d12-72cd-c9ab-042d-50ebf69be63e
    UEFI: American Megatrends v: 3801 date: 05/14/2025
CPU:
  Info: model: 12th Gen Intel Core i9-12900K socket: LGA1700 bits: 64
    type: MST AMCP arch: Alder Lake gen: core 12 level: v3 note: check
    built: 2021+ process: Intel 7 (10nm ESF) family: 6 model-id: 0x97 (151)
    stepping: 2 microcode: 0x3A
  Topology: cpus: 1x dies: 1 clusters: 10 cores: 16 threads: 24 mt: 8 tpc: 2
    st: 8 smt: enabled cache: L1: 1.4 MiB desc: d-8x32 KiB, 8x48 KiB; i-8x32
    KiB, 8x64 KiB L2: 14 MiB desc: 8x1.2 MiB, 2x2 MiB L3: 30 MiB
    desc: 1x30 MiB
  Speed (MHz): avg: 801 min/max: 800/5100:5200:3900 base/boost: 4851/5200
    scaling: driver: intel_pstate governor: powersave volts: 1.3 V
    ext-clock: 100 MHz cores: 1: 801 2: 801 3: 801 4: 801 5: 801 6: 801 7: 801
    8: 801 9: 801 10: 801 11: 801 12: 801 13: 801 14: 801 15: 801 16: 801
    17: 801 18: 801 19: 801 20: 801 21: 801 22: 801 23: 801 24: 801
    bogomips: 152985
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
  Vulnerabilities: <filter>
Graphics:
  Device-1: NVIDIA GA106 [GeForce RTX 3060 Lite Hash Rate] vendor: ASUSTeK
    driver: nvidia v: 575.64.03 alternate: nouveau,nvidia_drm
    non-free: 550-570.xx+ status: current (as of 2025-04; EOL~2026-12-xx)
    arch: Ampere code: GAxxx process: TSMC n7 (7nm) built: 2020-2023 pcie:
    gen: 4 speed: 16 GT/s lanes: 16 ports: active: none
    off: DP-1,DP-3,HDMI-A-1 empty: DP-2,HDMI-A-2 bus-ID: 01:00.0
    chip-ID: 10de:2504 class-ID: 0300
  Device-2: Logitech Webcam C270 driver: snd-usb-audio,uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.3.3:22
    chip-ID: 046d:0825 class-ID: 0102 serial: <filter>
  Device-3: AVerMedia Live Gamer MINI driver: snd-usb-audio,uvcvideo
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.4.2:16
    chip-ID: 07ca:3311 class-ID: 0102 serial: <filter>
  Display: unspecified server: X.Org v: 24.1.8 with: Xwayland v: 24.1.8
    compositor: kwin_wayland driver: X: loaded: modesetting,nouveau
    unloaded: nvidia alternate: fbdev,nv,vesa gpu: nvidia,nvidia-nvswitch
    display-ID: :0 screens: 1
  Screen-1: 0 s-res: 5760x1080 s-dpi: 96 s-size: 1524x285mm (60.00x11.22")
    s-diag: 1550mm (61.04")
  Monitor-1: DP-1 note: disabled pos: primary,center model: Gigabyte G24F 2
    serial: <filter> built: 2023 res: mode: 1920x1080 hz: 120 scale: 100% (1)
    dpi: 93 gamma: 1.2 size: 527x296mm (20.75x11.65") diag: 595mm (23.4")
    ratio: 16:9 modes: max: 1920x1080 min: 640x480
  Monitor-2: DP-3 note: disabled pos: left model: HP E223 serial: <filter>
    built: 2017 res: mode: 1920x1080 hz: 60 scale: 100% (1) dpi: 102 gamma: 1.2
    size: 476x268mm (18.74x10.55") diag: 546mm (21.5") ratio: 16:9 modes:
    max: 1920x1080 min: 640x480
  Monitor-3: HDMI-A-1 note: disabled pos: right model: HDMI LCD TV
    serial: <filter> built: 2007 res: mode: 1920x1080 hz: 60 scale: 100% (1)
    dpi: 101 gamma: 1.2 size: 484x272mm (19.06x10.71") diag: 1014mm (39.9")
    ratio: 15:9 modes: max: 1360x768 min: 640x480
  API: EGL v: 1.5 hw: drv: nvidia platforms: device: 0 drv: nvidia device: 2
    drv: swrast gbm: drv: nvidia surfaceless: drv: nvidia x11: drv: nvidia
    inactive: wayland,device-1
  API: OpenGL v: 4.6.0 compat-v: 4.5 vendor: nvidia mesa v: 575.64.03
    glx-v: 1.4 direct-render: yes renderer: NVIDIA GeForce RTX 3060/PCIe/SSE2
    memory: 11.72 GiB
  API: Vulkan v: 1.4.313 layers: 13 device: 0 type: discrete-gpu
    name: NVIDIA GeForce RTX 3060 driver: nvidia v: 575.64.03
    device-ID: 10de:2504 surfaces: N/A device: 1 type: cpu name: llvmpipe
    (LLVM 20.1.7 256 bits) driver: mesa llvmpipe v: 25.1.5-arch1.1 (LLVM
    20.1.7) device-ID: 10005:0000 surfaces: N/A
  Info: Tools: api: clinfo, eglinfo, glxinfo, vulkaninfo
    de: kscreen-console,kscreen-doctor gpu: corectrl, nvidia-settings,
    nvidia-smi wl: wayland-info x11: xdpyinfo, xprop, xrandr
Audio:
  Device-1: Intel Alder Lake-S HD Audio vendor: ASUSTeK driver: snd_hda_intel
    v: kernel alternate: snd_soc_avs,snd_sof_pci_intel_tgl bus-ID: 00:1f.3
    chip-ID: 8086:7ad0 class-ID: 0403
  Device-2: NVIDIA GA106 High Definition Audio vendor: ASUSTeK
    driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
    bus-ID: 01:00.1 chip-ID: 10de:228e class-ID: 0403
  Device-3: ASUSTek USB Audio driver: hid-generic,snd-usb-audio,usbhid
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-8:6
    chip-ID: 0b05:1a16 class-ID: 0300
  Device-4: C-Media Blue Snowball driver: hid-generic,snd-usb-audio,usbhid
    type: USB rev: 1.1 speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-9.3.2:21
    chip-ID: 0d8c:0005 class-ID: 0300 serial: <filter>
  Device-5: Logitech Webcam C270 driver: snd-usb-audio,uvcvideo type: USB
    rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.3.3:22
    chip-ID: 046d:0825 class-ID: 0102 serial: <filter>
  Device-6: AVerMedia Live Gamer MINI driver: snd-usb-audio,uvcvideo
    type: USB rev: 2.0 speed: 480 Mb/s lanes: 1 mode: 2.0 bus-ID: 1-9.4.2:16
    chip-ID: 07ca:3311 class-ID: 0102 serial: <filter>
  API: ALSA v: k6.15.5-zen1-1-zen status: kernel-api with: aoss
    type: oss-emulator tools: N/A
  Server-1: sndiod v: N/A status: off tools: aucat,midicat,sndioctl
  Server-2: PipeWire v: 1.4.6 status: n/a (root, process) with:
    1: pipewire-pulse status: active 2: wireplumber status: active
    3: pipewire-alsa type: plugin 4: pw-jack type: plugin
    tools: pactl,pw-cat,pw-cli,wpctl
Network:
  Device-1: Intel Alder Lake-S PCH CNVi WiFi driver: iwlwifi v: kernel
    bus-ID: 00:14.3 chip-ID: 8086:7af0 class-ID: 0280
  IF: wlo1 state: down mac: <filter>
  Device-2: Intel Ethernet I225-V vendor: ASUSTeK driver: igc v: kernel
    pcie: gen: 2 speed: 5 GT/s lanes: 1 port: N/A bus-ID: 05:00.0
    chip-ID: 8086:15f3 class-ID: 0200
  IF: enp5s0 state: up speed: 1000 Mbps duplex: full mac: <filter>
  IF-ID-1: proton0 state: unknown speed: N/A duplex: N/A mac: N/A
  IF-ID-2: pvpnksintrf0 state: unknown speed: N/A duplex: N/A mac: <filter>
  IF-ID-3: virbr0 state: down mac: <filter>
  Info: services: NetworkManager, smbd, sshd, systemd-timesyncd,
    wpa_supplicant
Bluetooth:
  Device-1: Intel AX201 Bluetooth driver: btusb v: 0.8 type: USB rev: 2.0
    speed: 12 Mb/s lanes: 1 mode: 1.1 bus-ID: 1-14:11 chip-ID: 8087:0026
    class-ID: e001
  Report: btmgmt ID: hci0 rfk-id: 0 state: up address: N/A
RAID:
  Hardware-1: Intel Volume Management Device NVMe RAID Controller driver: vmd
    v: 0.6 port: N/A bus-ID: 00:0e.0 chip-ID: 8086:467f rev: class-ID: 0104
Drives:
  Local Storage: total: 6.41 TiB used: 2.99 TiB (46.6%)
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Kingston model: SKC3000D2048G
    size: 1.86 TiB block-size: physical: 512 B logical: 512 B speed: 63.2 Gb/s
    lanes: 4 tech: SSD serial: <filter> fw-rev: EIFK31.6 temp: 40.9 C
    scheme: GPT
  SMART: yes health: PASSED on: 2y 257d 4h cycles: 85
    read-units: 7,042,228,322 [3.60 PB] written-units: 1,414,128,393 [724 TB]
  ID-2: /dev/sda maj-min: 8:0 vendor: Western Digital
    model: WD40EZAZ-19SF3B0 family: Blue (SMR) size: 3.64 TiB block-size:
    physical: 4096 B logical: 512 B sata: 3.1 speed: 6.0 Gb/s tech: HDD
    rpm: 5400 serial: <filter> fw-rev: 0A80 temp: 39 C scheme: GPT
  SMART: yes state: enabled health: PASSED on: 2y 255d 10h cycles: 85
  ID-3: /dev/sdb maj-min: 8:16 vendor: Generic model: STORAGE DEVICE
    size: 1.84 GiB block-size: physical: 512 B logical: 512 B type: USB rev: 3.0
    spd: 5 Gb/s lanes: 1 mode: 3.2 gen-1x1 tech: N/A serial: <filter>
    fw-rev: 0819 scheme: MBR
  SMART Message: Unknown USB bridge. Flash drive/Unsupported enclosure?
  ID-4: /dev/sdc maj-min: 8:32 vendor: Western Digital
    model: WD10JMVW-11AJGS3 family: Elements / My Passport (USB, AF)
    size: 931.48 GiB block-size: physical: 4096 B logical: 512 B type: USB
    rev: 3.0 spd: 5 Gb/s lanes: 1 mode: 3.2 gen-1x1 sata: 3.0 speed: 3.0 Gb/s
    tech: HDD rpm: 5400 serial: <filter> fw-rev: 1072 drive-rev: 01.01A01
    temp: 41 C scheme: GPT
  SMART: yes state: enabled health: PASSED on: 8y 94d 19h cycles: 1221
Partition:
  ID-1: / raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 296.68 GiB (50.8%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
  ID-2: /boot/efi raw-size: 100 MiB size: 96 MiB (96.00%)
    used: 32.5 MiB (33.9%) fs: vfat block-size: 512 B dev: /dev/nvme0n1p1
    maj-min: 259:1
  ID-3: /home raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 296.68 GiB (50.8%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
  ID-4: /var/log raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 296.68 GiB (50.8%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
  ID-5: /var/tmp raw-size: 583.61 GiB size: 583.61 GiB (100.00%)
    used: 296.68 GiB (50.8%) fs: btrfs block-size: 4096 B dev: /dev/dm-0
    maj-min: 253:0 mapped: luks-0aad11c6-cf6f-4db6-8384-c4f53d213620
Swap:
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
  ID-1: swap-1 type: zram size: 62.53 GiB used: 492 KiB (0.0%) priority: 100
    comp: zstd avail: lzo-rle,lzo,lz4,lz4hc,deflate,842 dev: /dev/zram0
Sensors:
  System Temperatures: cpu: 42.0 C mobo: N/A
  Fan Speeds (rpm): N/A
Info:
  Memory: total: 64 GiB available: 62.53 GiB used: 14.45 GiB (23.1%)
  Processes: 708 Power: uptime: 11h 14m states: freeze,mem,disk
    suspend: deep avail: s2idle wakeups: 0 hibernate: platform avail: shutdown,
    reboot, suspend, test_resume image: 24.94 GiB services: org_kde_powerdevil,
    power-profiles-daemon, upowerd Init: systemd v: 257 default: graphical
    tool: systemctl
  Packages: 2253 pm: dpkg pkgs: 0 pm: pacman pkgs: 2240 libs: 591
    tools: octopi,paru pm: flatpak pkgs: 13 Compilers: clang: 20.1.7 gcc: 15.1.1
    Shell: garuda-inxi (sudo) default: Bash v: 5.2.37 running-in: konsole
    inxi: 3.3.38
Garuda (2.7.3-1):
  System install date:     2025-05-30
  Last full system update: 2025-07-09
  Is partially upgraded:   Yes
  Relevant software:       snapper NetworkManager dracut
  Windows dual boot:       Yes
  Failed units:            clamav-clamonacc.service

local/egl-gbm 1.1.2.1-1
    The GBM EGL external platform library
local/egl-wayland 4:1.1.19-1
    EGLStream-based Wayland external platform
local/egl-x11 1.0.2-1
    NVIDIA XLib and XCB EGL Platform Library
local/garuda-nvidia-prime-config 2:1.1.6-1.1
    Meta configuration package for nvidia prime systems on Garuda Linux:
local/lib32-libvdpau 1.5-3
    Nvidia VDPAU library
local/lib32-nvidia-utils 575.64.03-1
    NVIDIA drivers utilities (32-bit)
local/lib32-opencl-nvidia 575.64.03-1
    OpenCL implemention for NVIDIA (32-bit)
local/libvdpau 1.5-3
    Nvidia VDPAU library
local/libxnvctrl 575.64-1
    NVIDIA NV-CONTROL X extension
local/linux-firmware-nvidia 20250627-1
    Firmware files for Linux - Firmware for NVIDIA GPUs and SoCs
local/mhwd-nvidia 575.64.03.1-1
    NVIDIA pci id list for MHWD
local/mhwd-nvidia-390xx 390.143-1
    mhwd-nvidia-390xx PCI ID database
local/mhwd-nvidia-470xx 470.94-1
    mhwd-nvidia-470xx PCI ID database
local/nvidia-open-dkms 575.64.03-1
    NVIDIA open kernel modules - module sources
local/nvidia-prime 1.0-5
    NVIDIA Prime Render Offload configuration and utilities
local/nvidia-settings 575.64-1
    Tool for configuring the NVIDIA graphics driver
local/nvidia-utils 575.64.03-1
    NVIDIA drivers utilities
local/opencl-nvidia 575.64.03-1
    OpenCL implemention for NVIDIA
local/xf86-video-nouveau 1.0.18-1 (xorg-drivers)
    Open Source 3D acceleration driver for nVidia cards
10

Take a look in your Xorg.0.log file ( /var/log)
If you read suspect errors pls post the log over privatebin.

The output from : echo $XDG_SESSION_TYPE = ? (about your garuda-inxi = xwayland)

You have disabled your igpu, then you don´t need nvidia-prime. (my mind)

1 Like
11

There are no errors in the Xorg log. Display: unspecified may be as a result of running garuda-inxi as root. Running it as user gets up to CPU, then never outputs Graphics data or anything past that, and hangs indefinitely until I ^C out of it.

XDG_SESSION_TYPE=wayland

It came with Garuda and I never bothered to touch it. I’ve removed it, and no change.

12

:+1:

Yes, right. (never tested before)

Questions:
Have you tested your system with a new user acc ?
You work with /etc/rc.local file over systemd ?

13

The person I was talking to on Masto did suggest creating a new account. The same problems occur on that account as do on my main account.

I do not have an /etc/rc.local file.

14

That`s good.

Your journal give also no result about these issues ?

15

Here is journal output for me trying to open Azahar (3DS emulator), open a ROM, it locks up, and I force close it. journal azahar - Pastebin Service

Also worth noting, there is no journal output whatsoever for running obs-gamecapture, garuda-inxi, or eglinfo.

16

That’s a group/user issue perhaps also a /usr/share/polkit-1/actions problem + install issue (my mind)
pls open for this a new topic

1 Like
17

Hi,

sorry for my late reply.

Im not a pro btw but why ClamAV is meant by me is because its a tricky configuration. I did it years ago wrong and had issues on the systems because it was blocking vars permissions. I didnt set up an extra user account for it with the right config. Its just a hint also their its faulty even from the inxi. We dont know what you did and help in our free time if we can.

Yes true i tested on my System. Thx new for me too.

For the OBS

Can you check if you have this installed for Wayland Session

sudo pacman -S egl-wayland

or did you try to run OBS with this command

obs --disable-egl

otherwise try to reinstall this packages

sudo pacman -S vulkan-icd-loader lib32-vulkan-icd-loader

there is some more for testing but thats a other thing i dont know if its maybe a OBS issue itself. How you use it just for recording or streaming.

For the inxi maybe you can try to reset fish in the Rani Application-> Modules → System maintenance → Reset configs to default state → Fish .

this also can be a issue like gampel said.

otherwise try the full remote fix if its helps.

garuda-update remote fullfix

or in Rani -Modules- System maintenance - garuda update recue tool.

18

To be clear, it’s OBS game capture causing the issue. OBS itself is fine, and when game capture works, it’s also fine. However, at least in the case of trying to capture Bizhawk output, it causes the emulator to hang indefinitely on start.

I have now run this, and the same problems continue to persist. Necessarily, this means the packages you suggested to reinstall (which were all there before) have been reinstalled as well.

I think I’m about to call this a wash. If the problem is an NVIDIA problem, I have a comparable AMD card that is being provided to me coming in soon. If it’s a configuration problem, it’s beyond me, and it might just be necessary to reinstall the system. I’m undecided if it’s going to be Garuda, stock Arch, or something else. (Not Windows, for as long as I can help it.) I was mainly trying to avoid having to reinstall, as I just did so a couple of months ago.

19

only for info:
Open konsole: command cat /etc/group
Group render : you stay there (username) or group video the same ?
If not : usermod -aG render (username)

2 Likes
20

hi,

i understand you in this way. I cant say much about NVIDIA because i have a full AMD system. For my Games i use other Applications for Gaming not Bizhawk. The most issue also is running Emulators and other Recording Software too because both max out the GPU. Bizhawk i used a long time ago and just see its a GTK Application and it is in AUR so can be a issue there possible. I use Retro Arch mostly for older Games. Yeah some stuf isnt work well under Linux in general so i use Windows on another SSD for my stuff if i need to use Applications i cant get right under Garuda or other Distros. But so far Garuda works with my stuff more then other Distros. May the AMD GPU give you a better result. :wink:
