Hey there,
I’m new to Garuda, came from windows. I am trying to get my system to see my sensors but so far I’ve had no luck.
I have tried using sensors-detect but it reports that I have no sensors. I can see my CPU utilization, clockspeed but not power consumption for some reason, and I can see everything about the GPU except for fans.
None of the case fans are recognized by the system either and I’m not sure why. I tried to look for the sensors manually in system monitor for example but since they weren’t detected in the first place I couldn’t find them.
I have a ryzen 7700 and a 9070 xt.
>>sensors
amdgpu-pci-1100
Adapter: PCI adapter
vddgfx: 930.00 mV
vddnb: 1.19 V
edge: +36.0°C
PPT: 30.16 W
k10temp-pci-00c3
Adapter: PCI adapter
Tctl: +41.5°C
Tccd1: +34.4°C
nvme-pci-1000
Adapter: PCI adapter
Composite: +43.9°C (low = -5.2°C, high = +83.8°C)
(crit = +87.8°C)
amdgpu-pci-0300
Adapter: PCI adapter
vddgfx: 261.00 mV
fan1: N/A
edge: +50.0°C (crit = +110.0°C, hyst = -273.1°C)
(emerg = +115.0°C)
junction: +53.0°C (crit = +110.0°C, hyst = -273.1°C)
(emerg = +115.0°C)
mem: +72.0°C (crit = +108.0°C, hyst = -273.1°C)
(emerg = +113.0°C)
PPT: 40.00 W (cap = 304.00 W)
nvme-pci-0d00
Adapter: PCI adapter
Composite: +39.9°C (low = -0.1°C, high = +99.8°C)
(crit = +109.8°C)
and this is the output for sensors-detect --auto:
# sensors-detect version 3.6.0+git
# System: ASRock B650M-HDV/M.2 [Default string]
# Kernel: 6.13.8-zen1-1-zen x86_64
# Processor: AMD Ryzen 7 7700 8-Core Processor (25/97/2)
Running in automatic mode, default answers to all questions
are assumed.
Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no):
Silicon Integrated Systems SIS5595... No
VIA VT82C686 Integrated Sensors... No
VIA VT8231 Integrated Sensors... No
AMD K8 thermal sensors... No
AMD Family 10h thermal sensors... No
AMD Family 11h thermal sensors... No
AMD Family 12h and 14h thermal sensors... No
AMD Family 15h thermal sensors... No
AMD Family 16h thermal sensors... No
AMD Family 17h thermal sensors... No
AMD Family 15h power sensors... No
AMD Family 16h power sensors... No
Hygon Family 18h thermal sensors... No
AMD Family 19h thermal sensors... No
Intel digital thermal sensor... No
Intel AMB FB-DIMM thermal sensor... No
Intel 5500/5520/X58 thermal sensor... No
VIA C7 thermal sensor... No
VIA Nano thermal sensor... No
Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no):
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... Yes
Found unknown chip with ID 0xd802
(logical device B has address 0x290, could be sensors)
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no):
Probing for `IPMI BMC KCS' at 0xca0... No
Probing for `IPMI BMC SMIC' at 0xca8... No
Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no):
Probing for `National Semiconductor LM78' at 0x290... No
Probing for `National Semiconductor LM79' at 0x290... No
Probing for `Winbond W83781D' at 0x290... No
Probing for `Winbond W83782D' at 0x290... No
Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no):
Using driver `i2c-piix4' for device 0000:00:14.0: AMD KERNCZ SMBus
Next adapter: Synopsys DesignWare I2C adapter (i2c-0)
Do you want to scan it? (YES/no/selectively):
Adapter doesn't support all probing functions.
Some addresses won't be probed.
Next adapter: Synopsys DesignWare I2C adapter (i2c-1)
Do you want to scan it? (YES/no/selectively):
Adapter doesn't support all probing functions.
Some addresses won't be probed.
Next adapter: SMBus PIIX4 adapter port 0 at 0b00 (i2c-2)
Do you want to scan it? (YES/no/selectively):
Client found at address 0x48
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `National Semiconductor LM77'... No
Probing for `Analog Devices ADT7410/ADT7420'... No
Probing for `Analog Devices ADT7411'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP435'... No
Probing for `National Semiconductor LM73'... No
Probing for `National Semiconductor LM92'... No
Probing for `National Semiconductor LM76'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Probing for `SMSC EMC1023'... No
Probing for `SMSC EMC1043'... No
Probing for `SMSC EMC1053'... No
Probing for `SMSC EMC1063'... No
Client found at address 0x4a
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `National Semiconductor LM77'... No
Probing for `Analog Devices ADT7410/ADT7420'... No
Probing for `Analog Devices ADT7411'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP435'... No
Probing for `National Semiconductor LM73'... No
Probing for `National Semiconductor LM92'... No
Probing for `National Semiconductor LM76'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Next adapter: SMBus PIIX4 adapter port 2 at 0b00 (i2c-3)
Do you want to scan it? (YES/no/selectively):
Next adapter: SMBus PIIX4 adapter port 1 at 0b20 (i2c-4)
Do you want to scan it? (YES/no/selectively):
Next adapter: AMDGPU SMU 0 (i2c-5)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU SMU 1 (i2c-6)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 0 (i2c-7)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 1 (i2c-8)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 2 (i2c-9)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 3 (i2c-10)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM aux hw bus 0 (i2c-11)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM aux hw bus 1 (i2c-12)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 0 (i2c-13)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 1 (i2c-14)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 2 (i2c-15)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM i2c hw bus 3 (i2c-16)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM aux hw bus 1 (i2c-17)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM aux hw bus 2 (i2c-18)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AMDGPU DM aux hw bus 3 (i2c-19)
Do you want to scan it? (yes/NO/selectively):
Sorry, no sensors were detected.
Either your system has no sensors, or they are not supported, or
they are connected to an I2C or SMBus adapter that is not
supported. If you find out what chips are on your board, check
https://hwmon.wiki.kernel.org/device_support_status for driver status.

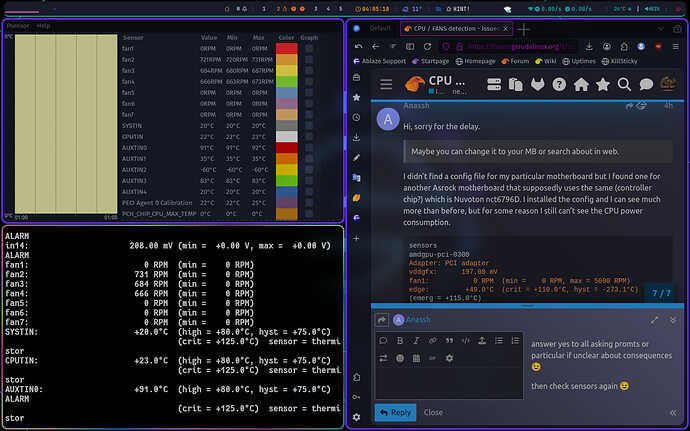

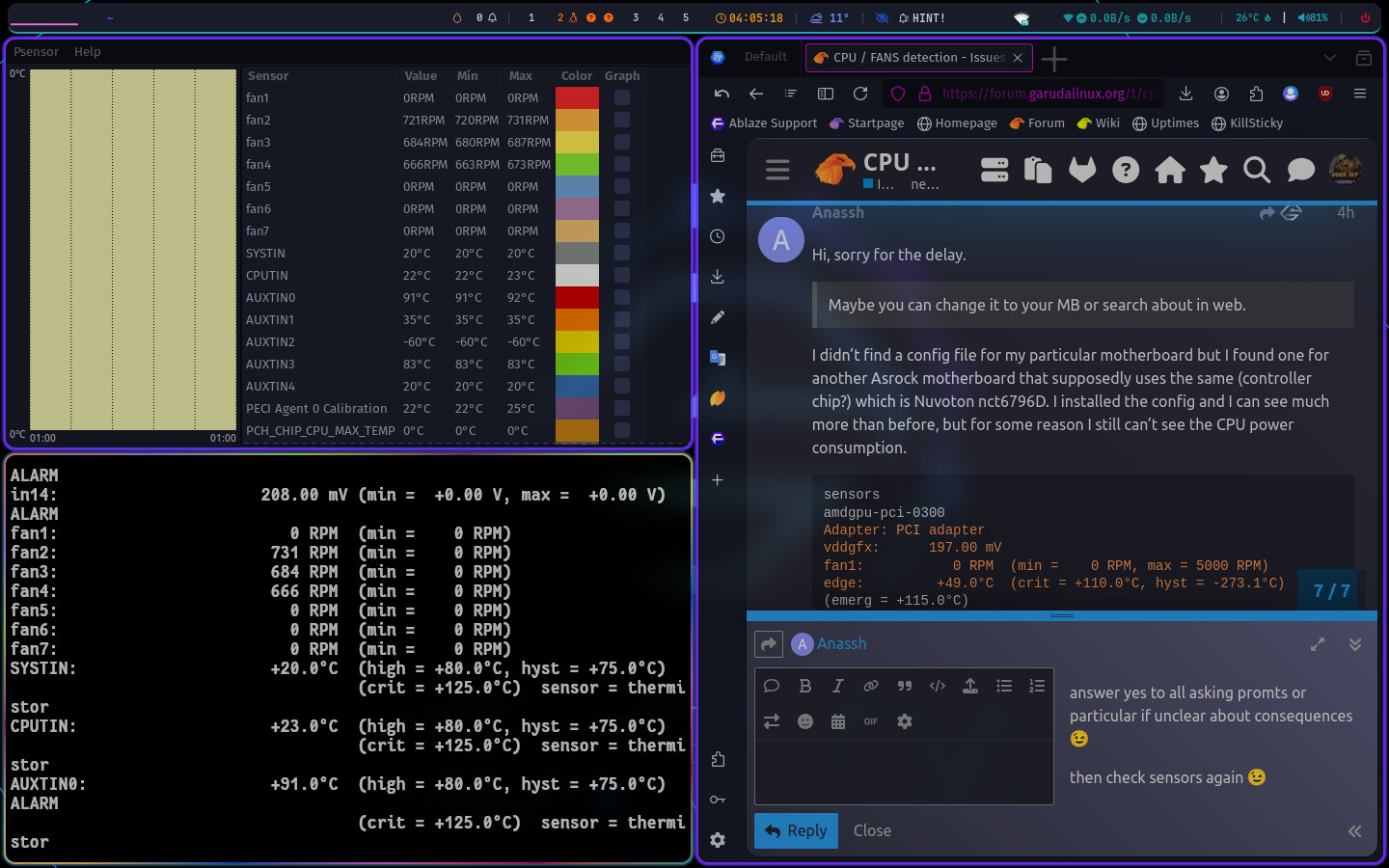

thats sensors we need
