Can't access /dev/dm-0

Hello. After installation, I cannot access the D drive.

Note:
Attempt to access 'Basic data partition' resulted in error: Requested action failed: Error mounting /dev/dm-0 at /run/media/marecki/multimedia: Unknown error when mounting /dev/dm-0

System installed on C.
I would like help.

Info:
λ garuda-inxi
System:
Kernel: 6.4.6-zen1-1-zen arch: x86_64 bits: 64
compiler: gcc v: 13.1.1
parameters: BOOT_IMAGE=/@/boot/vmlinuz-linux-zen
root=UUID=6b3fefe6-5ec5-4497-9da3-429040b2d149 rw
rootflags=subvol=@ quiet quiet rd.udev.log_priority=3
vt.global_cursor_default=0 loglevel=3 ibt=off
Desktop: KDE Plasma v: 5.27.6 tk: Qt v: 5.15.10
wm: kwin_x11 vt: 2 dm: SDDM Distro: Garuda Linux
base: Arch Linux
Machine:
Type: Laptop System: Micro-Star product: GE72 6QF
v: REV:1.0 serial: <superuser required> Chassis: type: 10
serial: <superuser required>
Mobo: Micro-Star model: MS-1794 v: REV:0.A
serial: <superuser required>
UEFI-[Legacy]: American Megatrends v: E1794IMS.117
date: 01/18/2018
Battery:
ID-1: BAT1 charge: 17.1 Wh (55.5%)
condition: 30.8/53.4 Wh (57.6%) volts: 11.8 min: 10.9
model: MSI BIF0_9 type: Li-ion serial: N/A
status: charging
CPU:
Info: model: Intel Core i7-6700HQ bits: 64 type: MT MCP
arch: Skylake-S gen: core 6 level: v3 note: check
built: 2015 process: Intel 14nm family: 6
model-id: 0x5E (94) stepping: 3 microcode: 0xF0
Topology: cpus: 1x cores: 4 tpc: 2 threads: 8
smt: enabled cache: L1: 256 KiB
desc: d-4x32 KiB; i-4x32 KiB L2: 1024 KiB
desc: 4x256 KiB L3: 6 MiB desc: 1x6 MiB
Speed (MHz): avg: 2299 high: 2300 min/max: 800/3500
scaling: driver: intel_pstate governor: powersave cores:
1: 2300 2: 2300 3: 2300 4: 2299 5: 2300 6: 2300 7: 2300
8: 2300 bogomips: 41599
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1
sse4_2 ssse3 vmx
Vulnerabilities: <filter>
Graphics:
Device-1: Intel HD Graphics 530 vendor: Micro-Star MSI
driver: i915 v: kernel arch: Gen-9 process: Intel 14n
built: 2015-16 ports: active: eDP-1
empty: DP-1,HDMI-A-1,HDMI-A-2 bus-ID: 00:02.0
chip-ID: 8086:191b class-ID: 0300
Device-2: NVIDIA GM204M [GeForce GTX 960 OEM / 970M]
vendor: Micro-Star MSI driver: nouveau v: kernel
non-free: 535.xx+ status: current (as of 2023-07)
arch: Maxwell code: GMxxx process: TSMC 28nm
built: 2014-19 pcie: gen: 1 speed: 2.5 GT/s lanes: 16
link-max: gen: 3 speed: 8 GT/s bus-ID: 01:00.0
chip-ID: 10de:13d8 class-ID: 0302 temp: 54.0 C
Display: x11 server: X.Org v: 21.1.8 with: Xwayland
v: 23.1.2 compositor: kwin_x11 driver: X:
loaded: modesetting,nouveau
alternate: fbdev,intel,nv,vesa dri: iris,nouveau
gpu: i915 display-ID: :0 screens: 1
Screen-1: 0 s-res: 1920x1080 s-dpi: 96
s-size: 508x285mm (20.00x11.22") s-diag: 582mm (22.93")
Monitor-1: eDP-1 model: LG Display 0x0469 built: 2014
res: 1920x1080 hz: 60 dpi: 128 gamma: 1.2
size: 382x215mm (15.04x8.46") diag: 438mm (17.3")
ratio: 16:9 modes: 1920x1080
API: OpenGL v: 4.6 Mesa 23.1.4 renderer: Mesa Intel HD
Graphics 530 (SKL GT2) direct-render: Yes
Audio:
Device-1: Intel 100 Series/C230 Series Family HD Audio
vendor: Micro-Star MSI driver: snd_hda_intel v: kernel
alternate: snd_soc_avs bus-ID: 00:1f.3
chip-ID: 8086:a170 class-ID: 0403
API: ALSA v: k6.4.6-zen1-1-zen status: kernel-api
with: aoss type: oss-emulator tools: N/A
Server-1: PipeWire v: 0.3.75 status: active with:
1: pipewire-pulse status: active 2: wireplumber
status: active 3: pipewire-alsa type: plugin 4: pw-jack
type: plugin tools: pactl,pw-cat,pw-cli,wpctl
Network:
Device-1: Intel Wireless 3165 driver: iwlwifi v: kernel
pcie: gen: 1 speed: 2.5 GT/s lanes: 1 bus-ID: 02:00.0
chip-ID: 8086:3165 class-ID: 0280
IF: wlp2s0 state: down mac: <filter>
Device-2: Qualcomm Atheros Killer E2400 Gigabit Ethernet
vendor: Micro-Star MSI driver: alx v: kernel pcie: gen: 1
speed: 2.5 GT/s lanes: 1 port: d000 bus-ID: 03:00.0
chip-ID: 1969:e0a1 class-ID: 0200
IF: enp3s0 state: up speed: 1000 Mbps duplex: full
mac: <filter>
Bluetooth:
Device-1: Intel Bluetooth wireless interface driver: btusb
v: 0.8 type: USB rev: 2.0 speed: 12 Mb/s lanes: 1
mode: 1.1 bus-ID: 1-10:4 chip-ID: 8087:0a2a
class-ID: e001
Report: bt-adapter ID: hci0 rfk-id: 0 state: up
address: <filter>
Drives:
Local Storage: total: 1.25 TiB used: 62.48 GiB (4.9%)
SMART Message: Unable to run smartctl. Root privileges
required.
ID-1: /dev/sda maj-min: 8:0 vendor: A-Data
model: SP900NS38 size: 238.47 GiB block-size:
physical: 512 B logical: 512 B speed: 6.0 Gb/s tech: SSD
serial: <filter> fw-rev: 3b scheme: MBR
ID-2: /dev/sdb maj-min: 8:16 vendor: HGST (Hitachi)
model: HTS721010A9E630 size: 931.51 GiB block-size:
physical: 4096 B logical: 512 B speed: 6.0 Gb/s
tech: HDD rpm: 7200 serial: <filter> fw-rev: A3J0
scheme: GPT
ID-3: /dev/sdc maj-min: 8:32 vendor: SanDisk
model: Ultra size: 114.56 GiB block-size: physical: 512 B
logical: 512 B type: USB rev: 3.0 spd: 5 Gb/s lanes: 1
mode: 3.2 gen-1x1 tech: N/A serial: <filter>
fw-rev: 1.00
SMART Message: Unknown USB bridge. Flash
drive/Unsupported enclosure?
Partition:
ID-1: / raw-size: 238.47 GiB size: 238.47 GiB (100.00%)
used: 57.15 GiB (24.0%) fs: btrfs dev: /dev/sda1
maj-min: 8:1
ID-2: /home raw-size: 238.47 GiB
size: 238.47 GiB (100.00%) used: 57.15 GiB (24.0%)
fs: btrfs dev: /dev/sda1 maj-min: 8:1
ID-3: /var/log raw-size: 238.47 GiB
size: 238.47 GiB (100.00%) used: 57.15 GiB (24.0%)
fs: btrfs dev: /dev/sda1 maj-min: 8:1
ID-4: /var/tmp raw-size: 238.47 GiB
size: 238.47 GiB (100.00%) used: 57.15 GiB (24.0%)
fs: btrfs dev: /dev/sda1 maj-min: 8:1
Swap:
Kernel: swappiness: 133 (default 60)
cache-pressure: 100 (default)
ID-1: swap-1 type: zram size: 7.64 GiB
used: 0 KiB (0.0%) priority: 100 dev: /dev/zram0
Sensors:
System Temperatures: cpu: 60.0 C pch: 64.5 C mobo: N/A
gpu: nouveau temp: 54.0 C
Fan Speeds (RPM): N/A
Info:
Processes: 258 Uptime: 7m wakeups: 1 Memory: total: 8 GiB
available: 7.64 GiB used: 3.22 GiB (42.2%) Init: systemd
v: 253 default: graphical tool: systemctl Compilers:
gcc: 13.1.1 Packages: pm: pacman pkgs: 1815 libs: 521
tools: octopi,paru Shell: fish v: 3.6.1 default: Bash
v: 5.1.16 running-in: konsole inxi: 3.3.28
Garuda (2.6.16-1):
System install date:     2023-07-25
Last full system update: 2023-07-25
Is partially upgraded:   No
Relevant software:       snapper NetworkManager dracut
Windows dual boot:       <superuser required>
Failed units:

Welcome :slight_smile:

There is no drive D in Linux.

Please post

lsblk -f

as text.

Please post always your terminal in- and output as text like
~~~
garuda-inxi
System:
Kernel: 5.18.15-zen1-2-zen arch: x86_64 bits: 64 compiler: gcc v: 12.1.1
parameters:
~~~

looks like

garuda-inxi
System:
  Kernel: 5.18.15-zen1-2-zen arch: x86_64 bits: 64 compiler: gcc v: 12.1.1
    parameters:

in forum.

I have edited your post.

2 Likes

Sorry, out of habit after Windows. I don't have
disk access. It is currently visible as multimedia. When I try to open it pops up the message I described in my 1st post.
I will send what you asked for tomorrow. I'm not at the computer now.

NAME FSTYPE FSVER LABEL      UUID                                 FSAVAIL FSUSE% MOUNTPOINTS
sda
└─sda1
btrfs                   6b3fefe6-5ec5-4497-9da3-429040b2d149                /var/tmp
sdb
└─sdb1
BitLoc 2
└─bitlk-2065
ntfs         multimedia BC1CE1391CE0EF78
sr0
zram0
[SWAP]

Please

BitLocker is a proprietary hard disk encryption of the Microsoft company, which is one of the features of Windows. Following the principle of full disk encryption, this software protects data.

Looks strange for me, here is mine, dual/multi boot system include M$, i3wm is activ.

lsblk -f
NAME        FSTYPE FSVER LABEL       UUID                                 FSAVAIL FSUSE% MOUNTPOINTS
zram0                                                                                    [SWAP]
nvme0n1
├─nvme0n1p1 vfat   FAT32 SYSTEM_DRV  94BA-ECE1                             221,1M    14% /boot/efi
├─nvme0n1p2
├─nvme0n1p3 ntfs         Windows-SSD A2A8BB95A8BB6707
├─nvme0n1p4 ntfs         WINRE_DRV   B8F6BC25F6BBE234
├─nvme0n1p5 btrfs        KDE         fc62cc44-07ab-497b-ac89-15704c290993
├─nvme0n1p6 btrfs        Hyprland    7ef49644-ecb9-48da-88a7-a2056b7e5164
└─nvme0n1p7 btrfs        i3wm        21e02e96-0ed6-4629-9a39-85ffee7a4359   41,9G    86% /home
                                                                                         /var/cache
                                                                                         /var/log
                                                                                         /var/tmp
                                                                                         /root
                                                                                         /srv
                                                                                         /

Seems you must unlock the ntfs part?
/dev/sdb is not mounted?
Or sdb1 is locked?

2 Likes

For me too ... I've already done several guard installations and each time the drive could be unlocked after entering the password. Now it doesn't work.

it asks for a password and then:

Attempt to access 'Basic data partition' resulted in error: Requested action failed: Error mounting /dev/dm-0 at /run/media/marecki/multimedia: Unknown error when mounting /dev/dm-0

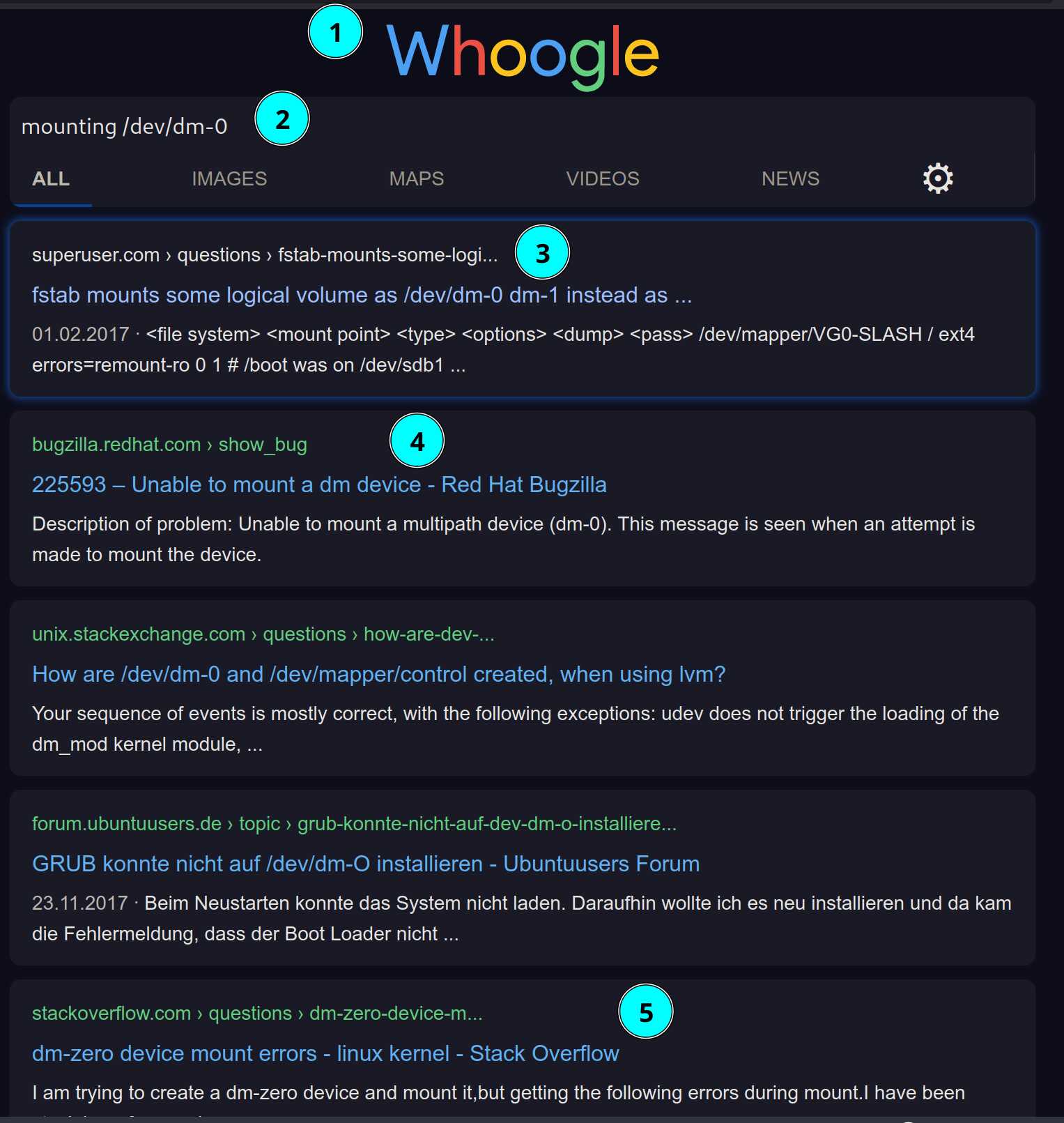

IDK, just use Whoogle

Thanks for the help.
Unlocked with: sudo ntfsfix /dev/dm-0
Topic to be closed.
