ID-1: /dev/sda is the new 1tb disk, and ID-2: /dev/sdb is the old one, right?
I do not understand why /dev/sda is scheme: MBR while /dev/sdb is scheme: GPT.
Maybe the work of GParted?
Also, the screenshots show neither a GRUB partition for “legacy/BIOS boot” nor an EFI one for “UEFI boot”. That looks strange to me, then again, I’ll repeat once more I’m no expert.
System tries to boot anyways, so… I guess it’s good.
The changed UUIDs can be solved easily, either changing them back to what they used to be or editing /etc/fstab to use the new ones. That comes later though.
Let’s see, from the live disk, with both disks connected, output of commands lsblk -o+uuid sudo gdisk -l /dev/sda sudo gdisk -l /dev/sdb
╭─garuda@garuda in ~ as 🧙 took 70ms
╰─λ lsblk -o+uuid
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS UUID
loop0 7:0 0 62.4M 1 loop /run/miso/sfs/livefs
loop1 7:1 0 405.2M 1 loop /run/miso/sfs/mhwdfs
loop2 7:2 0 1.2G 1 loop /run/miso/sfs/desktopfs
loop3 7:3 0 665.8M 1 loop /run/miso/sfs/rootfs
sda 8:0 0 931.5G 0 disk
├─sda1 8:1 0 894.8G 0 part 21552d5d-e026-4b4a-a2a8-ab97d6cbccde
└─sda3 8:3 0 11.4G 0 part e7acc7cd-2fe2-4482-b401-85fb5ef12388
sdb 8:16 0 223.6G 0 disk
├─sdb1 8:17 0 214.8G 0 part 21552d5d-e026-4b4a-a2a8-ab97d6cbccde
└─sdb2 8:18 0 8.8G 0 part ac9e5d5d-f05f-49c9-b808-06d51f771ea8
sdc 8:32 1 114.6G 0 disk
├─sdc1 8:33 1 114.6G 0 part 7430-EE12
│ └─ventoy 254:0 0 2.4G 1 dm /run/miso/bootmnt 2023-10-29-15-02-16-00
└─sdc2 8:34 1 32M 0 part
zram0 253:0 0 15.5G 0 disk [SWAP]
╭─garuda@garuda in ~ as 🧙 took 34ms
╰─λ sudo gdisk -l /dev/sda
GPT fdisk (gdisk) version 1.0.9.1
Partition table scan:
MBR: MBR only
BSD: not present
APM: not present
GPT: not present
***************************************************************
Found invalid GPT and valid MBR; converting MBR to GPT format
in memory.
***************************************************************
Disk /dev/sda: 1953525168 sectors, 931.5 GiB
Model: CT1000MX500SSD1
Sector size (logical/physical): 512/4096 bytes
Disk identifier (GUID): 23F24641-8357-4F2B-8E53-CA6DCC6447F3
Partition table holds up to 128 entries
Main partition table begins at sector 2 and ends at sector 33
First usable sector is 34, last usable sector is 1953525134
Partitions will be aligned on 2048-sector boundaries
Total free space is 52950563 sectors (25.2 GiB)
Number Start (sector) End (sector) Size Code Name
1 2048 1876612937 894.8 GiB 8300 Linux filesystem
3 1929560064 1953523711 11.4 GiB 8200 Linux swap
╭─garuda@garuda in ~ as 🧙 took 46ms
╰─λ sudo gdisk -l /dev/sdb
GPT fdisk (gdisk) version 1.0.9.1
Partition table scan:
MBR: MBR only
BSD: not present
APM: not present
GPT: not present
***************************************************************
Found invalid GPT and valid MBR; converting MBR to GPT format
in memory.
***************************************************************
Disk /dev/sdb: 468860015 sectors, 223.6 GiB
Model: KINGSTON SA400S3
Sector size (logical/physical): 512/512 bytes
Disk identifier (GUID): 22F0215F-3101-4F22-8E39-EAA4340ECC17
Partition table holds up to 128 entries
Main partition table begins at sector 2 and ends at sector 33
First usable sector is 34, last usable sector is 468859981
Partitions will be aligned on 2-sector boundaries
Total free space is 4971 sectors (2.4 MiB)
Number Start (sector) End (sector) Size Code Name
1 2048 450402085 214.8 GiB 8300 Linux filesystem
2 450402086 468857024 8.8 GiB 8200 Linux swap
I’m not sure how to proceed.
I’m surprised to now see the old disk is MBR too (but the inxi said GPT before?).
I don’t know if the 2014 BIOS can handle GPT, probably not.
I don’t want to give bad advice, in the best case I’d waste your time.
By the way, the clone method I advised before is not good either, it only copies the btrfs filesystem but does not take care of GRUB nor swapfile.
All things considered, I think it’s easier and safer to install anew on the 1tb and later copy your files over from the old disk.
Current installer versions let you make a swap partition if I’m not mistaken.
But maybe wait if someone else comes up with a better answer, I give up.
Noway you didn’t wasted my time.
i am able to manage and start the system and edited the disk space again please look in to my configuration and suggest. I refer
→ sudo lsblk -o+uuid
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
UUID
sda 8:0 0 931.5G 0 disk
├─sda1 8:1 0 920.1G 0 part /var/tmp 21552d5d-e026-4b4a-a2a8-ab97d6cbccde
│ /var/cache
│ /root
│ /var/log
│ /srv
│ /home
│ /
└─sda3 8:3 0 11.4G 0 part [SWAP] e7acc7cd-2fe2-4482-b401-85fb5ef12388
sdb 8:16 0 3.6T 0 disk
└─sdb1 8:17 0 3.6T 0 part /mnt/disk3 f780cd7a-000d-4c7f-88ea-d4b77d625dc9
zram0 254:0 0 15.5G 0 disk [SWAP]

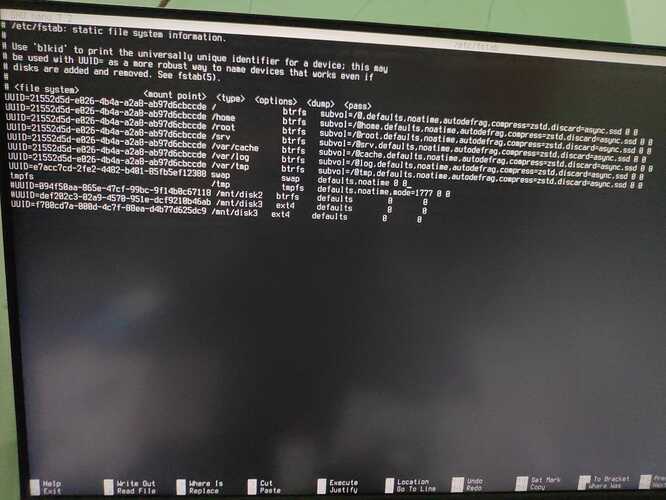

My fstab
GNU nano 7.2 /etc/fstab
# Use 'blkid' to print the universally unique identifier for a device; this may
# be used with UUID= as a more robust way to name devices that works even if
# disks are added and removed. See fstab(5).
#
# <file system> <mount point> <type> <options> <dump> <pass>
UUID=21552d5d-e026-4b4a-a2a8-ab97d6cbccde / btrfs subvol=/@,defaults,noatime,autodefrag,compress=zstd,discard=async,ssd 0 0
UUID=21552d5d-e026-4b4a-a2a8-ab97d6cbccde /home btrfs subvol=/@home,defaults,noatime,autodefrag,compress=zstd,discard=async,ssd 0 0
UUID=21552d5d-e026-4b4a-a2a8-ab97d6cbccde /root btrfs subvol=/@root,defaults,noatime,autodefrag,compress=zstd,discard=async,ssd 0 0
UUID=21552d5d-e026-4b4a-a2a8-ab97d6cbccde /srv btrfs subvol=/@srv,defaults,noatime,autodefrag,compress=zstd,discard=async,ssd 0 0
UUID=21552d5d-e026-4b4a-a2a8-ab97d6cbccde /var/cache btrfs subvol=/@cache,defaults,noatime,autodefrag,compress=zstd,discard=async,ssd 0 0
UUID=21552d5d-e026-4b4a-a2a8-ab97d6cbccde /var/log btrfs subvol=/@log,defaults,noatime,autodefrag,compress=zstd,discard=async,ssd 0 0
UUID=21552d5d-e026-4b4a-a2a8-ab97d6cbccde /var/tmp btrfs subvol=/@tmp,defaults,noatime,autodefrag,compress=zstd,discard=async,ssd 0 0
UUID=e7acc7cd-2fe2-4482-b401-85fb5ef12388 swap swap defaults,noatime 0 0
#UUID=ac9e5d5d-f05f-49c9-b808-06df1f771ae8 swap swap defaults,noatime 0 0
tmpfs /tmp tmpfs defaults,noatime,mode=1777 0 0
#UUID=094f50aa-865e-47cf-99bc-9f14b0c67118 /mnt/disk2 btrfs defaults 0 0
#UUID=def202c3-02a9-4570-951e-dcf9210b46ab /mnt/disk3 ext4 defaults 0 0
UUID=f780cd7a-000d-4c7f-88ea-d4b77d625dc9 /mnt/disk3 ext4 defaults 0 0
GNU nano 7.2 /etc/default/grub
# GRUB boot loader configuration
GRUB_DEFAULT="1>3"
GRUB_TIMEOUT=3
GRUB_DISTRIBUTOR="Garuda"
GRUB_CMDLINE_LINUX_DEFAULT="quiet rd.udev.log_priority=3 vt.global_cursor_default=0 resume=UUID=e7acc7cd-2fe2-4482-b401-85fb5ef12388 loglevel=3 " # Modified by garuda-migrations: splash
GRUB_CMDLINE_LINUX="resume=UUID=e7acc7cd-2fe2-4482-b401-85fb5ef12388"
# Preload both GPT and MBR modules so that they are not missed
GRUB_PRELOAD_MODULES="part_gpt part_msdos"
# Uncomment to enable booting from LUKS encrypted devices
#GRUB_ENABLE_CRYPTODISK=y
# Set to 'countdown' or 'hidden' to change timeout behavior,
# press ESC key to display menu.
GRUB_TIMEOUT=3
# Uncomment to use basic console
GRUB_TERMINAL_INPUT=console
# Uncomment to disable graphical terminal
#GRUB_TERMINAL_OUTPUT=console
# The resolution used on graphical terminal
# note that you can use only modes which your graphic card supports via VBE
# you can see them in real GRUB with the command `vbeinfo'
GRUB_GFXMODE=auto
# Uncomment to allow the kernel use the same resolution used by grub
GRUB_GFXPAYLOAD_LINUX=keep
# Uncomment if you want GRUB to pass to the Linux kernel the old parameter
# format "root=/dev/xxx" instead of "root=/dev/disk/by-uuid/xxx"
#GRUB_DISABLE_LINUX_UUID=true
# Uncomment to disable generation of recovery mode menu entries
# Modified by garuda-migrations: GRUB_DISABLE_RECOVERY=default
#GRUB_DISABLE_RECOVERY=true
# Uncomment and set to the desired menu colors. Used by normal and wallpaper
# modes only. Entries specified as foreground/background.
#GRUB_COLOR_NORMAL="light-blue/black"
#GRUB_COLOR_HIGHLIGHT="light-cyan/blue"
# Uncomment one of them for the gfx desired, a image background or a gfxtheme
#GRUB_BACKGROUND="/path/to/wallpaper"
GRUB_THEME="/usr/share/grub/themes/garuda/theme.txt"
# Uncomment to get a beep at GRUB start
#GRUB_INIT_TUNE="480 440 1"
# Uncomment to make GRUB remember the last selection. This requires
# setting 'GRUB_DEFAULT=saved' above.
#GRUB_SAVEDEFAULT=true
# Uncomment to disable submenus in boot menu
#GRUB_DISABLE_SUBMENU=y
# Probing for other operating systems is disabled for security reasons. Read
# documentation on GRUB_DISABLE_OS_PROBER, if still want to enable this
# functionality install os-prober and uncomment to detect and include other
# operating systems.
GRUB_DISABLE_OS_PROBER=false
# This config file imports drop-in files from /etc/default/grub.d/.
for garuda_grub_d in ${sysconfdir}/default/grub.d/*.cfg ; do if [ -e "${garuda_grub_d}" ]; then source "${garuda_grub_d}"; fi; done
