Booting and Calamares Issues Garuda Hyprland

If i choose pt keyboard or portuguese language the login always fails, but that doesn’t happen in english keyboard and us-english language. Im only able to enter the liveos envrioment that way. When i go to install the calamares installer doesn-t open.
Here is my garuda-inxi:

  Kernel: 6.5.9-zen2-1-zen arch: x86_64 bits: 64 compiler: gcc v: 13.2.1
    clocksource: tsc available: hpet,acpi_pm
    parameters: BOOT_IMAGE=/boot/vmlinuz-x86_64 lang=en_US keytable=us
    tz=Europe/Lisbon misobasedir=garuda
    root=miso:LABEL=GARUDA_HYPRLAND_RAPTOR quiet systemd.show_status=1
    ibt=off driver=free nouveau.modeset=1 i915.modeset=1 radeon.modeset=1
  Desktop: Hyprland info: waybar vt: 1 dm: SDDM Distro: Garuda Linux
    base: Arch Linux
  Type: Laptop System: HP product: OMEN by HP Laptop 16-c0xxx v: N/A
    serial: <superuser required> Chassis: type: 10 serial: <superuser required>
  Mobo: HP model: 8902 v: 89.62 serial: <superuser required> UEFI: AMI
    v: F.22 date: 10/12/2023
  ID-1: BAT0 charge: 61.3 Wh (100.0%) condition: 61.3/61.3 Wh (100.0%)
    volts: 17.0 min: 15.4 model: HP Primary type: Li-ion serial: <filter>
    status: full cycles: 72
  Info: model: AMD Ryzen 7 5800H with Radeon Graphics bits: 64 type: MT MCP
    arch: Zen 3 gen: 4 level: v3 note: check built: 2021-22
    process: TSMC n7 (7nm) family: 0x19 (25) model-id: 0x50 (80) stepping: 0
    microcode: 0xA50000F
  Topology: cpus: 1x cores: 8 tpc: 2 threads: 16 smt: enabled cache:
    L1: 512 KiB desc: d-8x32 KiB; i-8x32 KiB L2: 4 MiB desc: 8x512 KiB
    L3: 16 MiB desc: 1x16 MiB
  Speed (MHz): avg: 545 high: 2729 min/max: 400/4463 scaling:
    driver: amd-pstate-epp governor: powersave cores: 1: 400 2: 400 3: 400
    4: 400 5: 400 6: 400 7: 2729 8: 400 9: 400 10: 400 11: 400 12: 400 13: 400
    14: 400 15: 400 16: 400 bogomips: 102212
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
  Vulnerabilities: <filter>
  Device-1: AMD Navi 23 [Radeon RX 6600/6600 XT/6600M] vendor: Hewlett-Packard
    driver: amdgpu v: kernel arch: RDNA-2 code: Navi-2x process: TSMC n7 (7nm)
    built: 2020-22 pcie: gen: 4 speed: 16 GT/s lanes: 16 ports: active: none
    empty: DP-1,HDMI-A-1 bus-ID: 03:00.0 chip-ID: 1002:73ff class-ID: 0380
  Device-2: AMD Cezanne [Radeon Vega Series / Radeon Mobile Series]
    vendor: Hewlett-Packard driver: amdgpu v: kernel arch: GCN-5 code: Vega
    process: GF 14nm built: 2017-20 pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s ports: active: eDP-1 empty: DP-2
    bus-ID: 09:00.0 chip-ID: 1002:1638 class-ID: 0300 temp: 47.0 C
  Device-3: Chicony [] driver: uvcvideo type: USB rev: 2.0 speed: 480 Mb/s
    lanes: 1 mode: 2.0 bus-ID: 1-3:2 chip-ID: 04f2:b735 class-ID: fe01
    serial: <filter>
  Display: wayland server: v: with: Xwayland v: 23.2.2
    compositor: Hyprland driver: X: loaded: amdgpu unloaded: modesetting,radeon
    alternate: fbdev,vesa dri: radeonsi gpu: amdgpu display-ID: 1
  Monitor-1: eDP-1 model: BOE Display 0x0aae built: 2021 res: 1920x1080
    hz: 144 dpi: 137 gamma: 1.2 scale: 1 size: 355x200mm (13.98x7.87")
    diag: 407mm (16") ratio: 16:9 modes: max: 1920x1080 min: 640x480
  API: Vulkan v: 1.3.269 layers: 3 device: 0 type: integrated-gpu name: AMD
    Radeon Graphics (RADV RENOIR) driver: mesa radv v: 23.2.1-arch1.2
    device-ID: 1002:1638 surfaces: xcb,xlib,wayland device: 1
    type: discrete-gpu name: AMD Radeon RX 6600M (RADV NAVI23)
    driver: mesa radv v: 23.2.1-arch1.2 device-ID: 1002:73ff
    surfaces: xcb,xlib,wayland device: 2 type: cpu name: llvmpipe (LLVM
    16.0.6 256 bits) driver: mesa llvmpipe v: 23.2.1-arch1.2 (LLVM 16.0.6)
    device-ID: 10005:0000 surfaces: xcb,xlib,wayland
  API: EGL Message: EGL data requires eglinfo. Check --recommends.
  Device-1: AMD Navi 21/23 HDMI/DP Audio vendor: Hewlett-Packard
    driver: snd_hda_intel v: kernel pcie: gen: 4 speed: 16 GT/s lanes: 16
    bus-ID: 03:00.1 chip-ID: 1002:ab28 class-ID: 0403
  Device-2: AMD Renoir Radeon High Definition Audio vendor: Hewlett-Packard
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s bus-ID: 09:00.1 chip-ID: 1002:1637
    class-ID: 0403
  Device-3: AMD ACP/ACP3X/ACP6x Audio Coprocessor vendor: Hewlett-Packard
    driver: snd_rn_pci_acp3x v: kernel alternate: snd_pci_acp3x, snd_pci_acp5x,
    snd_pci_acp6x, snd_acp_pci, snd_rpl_pci_acp6x, snd_pci_ps,
    snd_sof_amd_renoir, snd_sof_amd_rembrandt pcie: gen: 3 speed: 8 GT/s
    lanes: 16 link-max: gen: 4 speed: 16 GT/s bus-ID: 09:00.5
    chip-ID: 1022:15e2 class-ID: 0480
  Device-4: AMD Family 17h/19h HD Audio vendor: Hewlett-Packard
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    link-max: gen: 4 speed: 16 GT/s bus-ID: 09:00.6 chip-ID: 1022:15e3
    class-ID: 0403
  API: ALSA v: k6.5.9-zen2-1-zen status: kernel-api tools: N/A
  Server-1: sndiod v: N/A status: off tools: aucat,midicat,sndioctl
  Server-2: PipeWire v: 0.3.83 status: active with: 1: pipewire-pulse
    status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
    4: pw-jack type: plugin tools: pactl,pw-cat,pw-cli,wpctl
  Device-1: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet
    vendor: Hewlett-Packard driver: r8169 v: kernel pcie: gen: 1 speed: 2.5 GT/s
    lanes: 1 port: f000 bus-ID: 04:00.0 chip-ID: 10ec:8168 class-ID: 0200
  IF: eno1 state: down mac: <filter>
  Device-2: Realtek RTL8852AE 802.11ax PCIe Wireless Network Adapter
    vendor: Hewlett-Packard driver: rtw89_8852ae v: kernel pcie: gen: 1
    speed: 2.5 GT/s lanes: 1 port: e000 bus-ID: 05:00.0 chip-ID: 10ec:8852
    class-ID: 0280
  IF: wlo1 state: up mac: <filter>
  Device-1: Realtek [] driver: btusb v: 0.8 type: USB rev: 1.0 speed: 12 Mb/s
    lanes: 1 mode: 1.1 bus-ID: 1-4:3 chip-ID: 0bda:2852 class-ID: e001
    serial: <filter>
  Report: btmgmt ID: hci0 rfk-id: 0 state: up address: <filter> bt-v: 5.2
    lmp-v: 11 status: discoverable: no pairing: no class-ID: 6c010c
  Local Storage: total: 2.82 TiB used: 0 KiB (0.0%)
  SMART Message: Unable to run smartctl. Root privileges required.
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Seagate
    model: XPG GAMMIX S70 BLADE size: 1.86 TiB block-size: physical: 512 B
    logical: 512 B speed: 63.2 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: 3.2.F.83 temp: 36.9 C scheme: GPT
  ID-2: /dev/nvme1n1 maj-min: 259:4 vendor: Micron
    model: MTFDHBA1T0TDV-1AZ1AABHA size: 953.87 GiB block-size: physical: 512 B
    logical: 512 B speed: 31.6 Gb/s lanes: 4 tech: SSD serial: <filter>
    fw-rev: HPS0032 temp: 31.9 C scheme: GPT
  ID-3: /dev/sda maj-min: 8:0 vendor: SMI (STMicroelectronics) model: USB
    size: 29.3 GiB block-size: physical: 512 B logical: 512 B type: USB rev: 3.0
    spd: 5 Gb/s lanes: 1 mode: 3.2 gen-1x1 tech: N/A serial: <filter>
    fw-rev: 1100 scheme: MBR
  SMART Message: Unknown USB bridge. Flash drive/Unsupported enclosure?
  Message: No partition data found.
  Kernel: swappiness: 133 (default 60) cache-pressure: 100 (default) zswap: no
  ID-1: swap-1 type: zram size: 30.7 GiB used: 0 KiB (0.0%) priority: 100
    comp: zstd avail: lzo,lzo-rle,lz4,lz4hc,842 max-streams: 16 dev: /dev/zram0
  System Temperatures: cpu: 63.5 C mobo: N/A
  Fan Speeds (rpm): fan-1: 0 fan-2: 0
  GPU: device: amdgpu temp: 50.0 C mem: 50.0 C fan: 0 watts: 5.00
    device: amdgpu temp: 47.0 C
  Processes: 365 Uptime: 23m wakeups: 2 Memory: total: 32 GiB note: est.
  available: 30.7 GiB used: 4.4 GiB (14.4%) Init: systemd v: 254
  default: graphical tool: systemctl Compilers: gcc: 13.2.1 Packages:
  pm: pacman pkgs: 1239 libs: 356 tools: paru,trizen Shell: fish v: 3.6.1
  running-in: alacritty inxi: 3.3.30
Garuda (2.6.17-1):
  System install date:     2023-12-07
  Last full system update: 2023-12-07 ↻
  Is partially upgraded:   Yes
  Relevant software:       snapper NetworkManager dracut
  Windows dual boot:       <superuser required>
  Failed units:            snapper-cleanup.service

The calamares error:

Process 15873 (calamares) of user 0 dumped core.

Stack trace of thread 15873:
#0  0x00007f2ffab7e83c n/a ( + 0x8e83c)
#1  0x00007f2ffab2e668 raise ( + 0x3e668)
#2  0x00007f2ffab164b8 abort ( + 0x264b8)
#3  0x00007f2ffb0140c2 _ZNK14QMessageLogger5fatalEPKcz ( + 0xa00c2)
#4  0x00007f2ffb5eb402 _ZN22QGuiApplicationPrivate25createPlatformIntegrationEv ( + 0x13f402)
#5  0x00007f2ffb5eba79 _ZN22QGuiApplicationPrivate21createEventDispatcherEv ( + 0x13fa79)
#6  0x00007f2ffb20fc05 _ZN23QCoreApplicationPrivate4initEv ( + 0x29bc05)
#7  0x00007f2ffb5ebb26 _ZN22QGuiApplicationPrivate4initEv ( + 0x13fb26)
#8  0x00007f2ffc81ab9e _ZN19QApplicationPrivate4initEv ( + 0x175b9e)
#9  0x0000555eb3386eed _ZN20CalamaresApplicationC2ERiPPc (calamares + 0x17eed)
#10 0x0000555eb3384f95 main (calamares + 0x15f95)
#11 0x00007f2ffab17cd0 n/a ( + 0x27cd0)
#12 0x00007f2ffab17d8a __libc_start_main ( + 0x27d8a)
#13 0x0000555eb3385c55 _start (calamares + 0x16c55)

Stack trace of thread 15884:
#0  0x00007f2ffabf2f6f __poll ( + 0x102f6f)
#1  0x00007f2ff8f33276 n/a ( + 0xb8276)
#2  0x00007f2ff8ed3162 g_main_context_iteration ( + 0x58162)
#3  0x00007f2ffb25ef7c _ZN20QEventDispatcherGlib13processEventsE6QFlagsIN10QEventLoop17ProcessEventsFlagEE ( + 0x2eaf7c)
#4  0x00007f2ffb20ee74 _ZN10QEventLoop4execE6QFlagsINS_17ProcessEventsFlagEE ( + 0x29ae74)
#5  0x00007f2ffb06b4f6 _ZN7QThread4execEv ( + 0xf74f6)
#6  0x00007f2ffa13aa9a n/a ( + 0x18a9a)
#7  0x00007f2ffb06771a n/a ( + 0xf371a)
#8  0x00007f2ffab7c9eb n/a ( + 0x8c9eb)
#9  0x00007f2ffac007cc n/a ( + 0x1107cc)
ELF object binary architecture: AMD x86-64

I tried both rufus and etcher to install the bootable iso, same result.

Hi :slight_smile:
Maybe my script failed?

You can change the language after installed with en in .config/hypr/hyprland.conf

kb_layout =

but use at first a simple password like 123 to avoid keyboard problems.

It may no diff. but use ventoy :slight_smile:

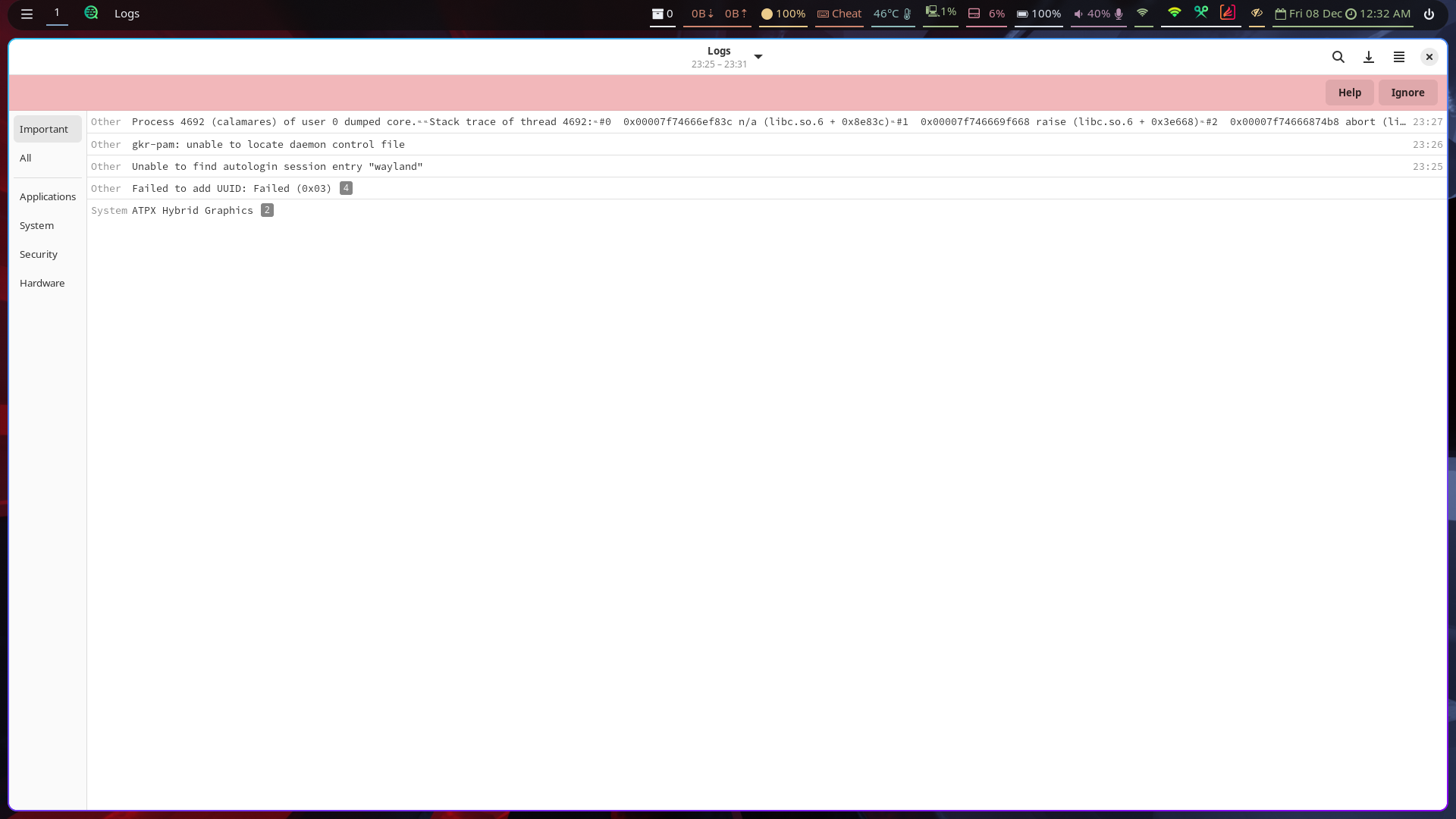

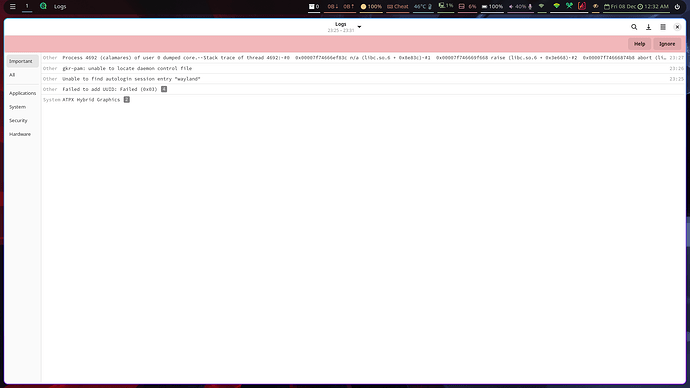

thanks for reply, problem is the garuda installer (calamares) doesn’t open what shall i do for that? I used ventoy now the problem remains, and this re some errors in log:

IDK :frowning:
Can you use from terminal

sudo -E calamares -D8



Thanks it seems to be running in the terminal :wink: let me complete the installation and if everything goes well i will tell u to close the topic


After the installation, the login doesn’t work when enter my password and enter or log in with mouse it blackout for a second, and returns to the login area, and my password is only numbers :sob:

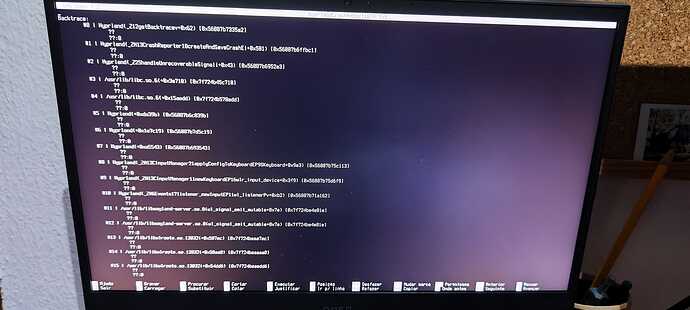

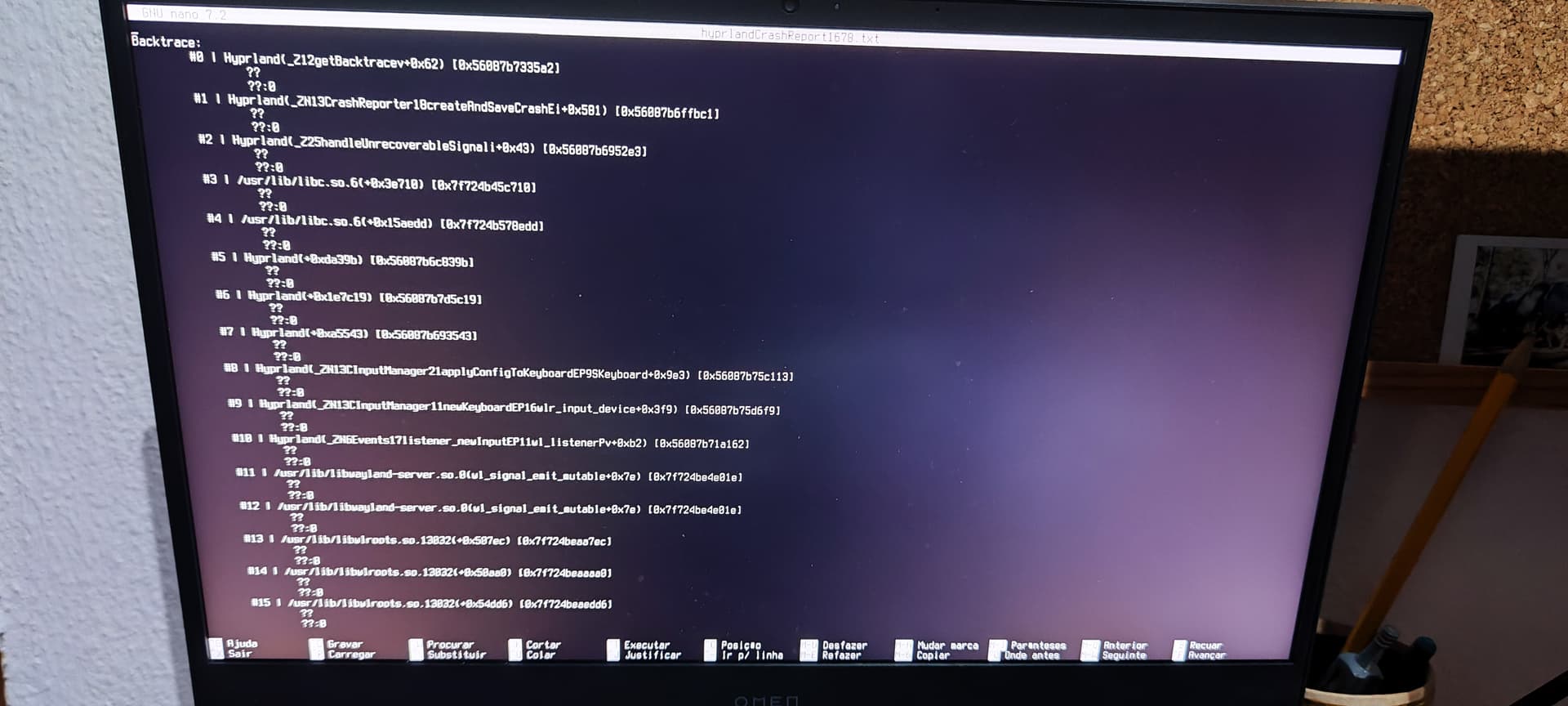

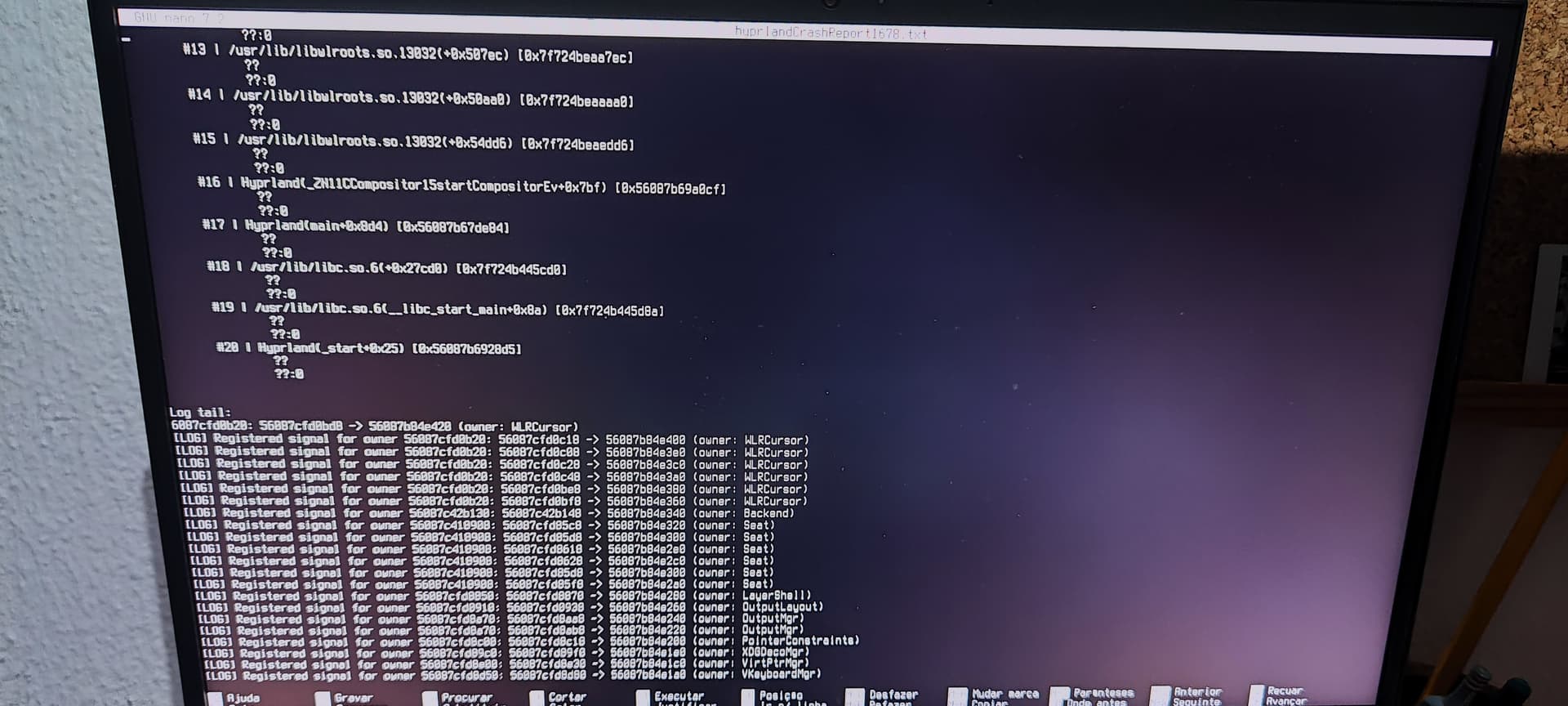

This is what happens:

It’s a shame, since there’s no Nvidia GPU involved, I don’t know where the problem is.
Please, try TTY3, login and use


if work, use upd in terminal.

1 Like

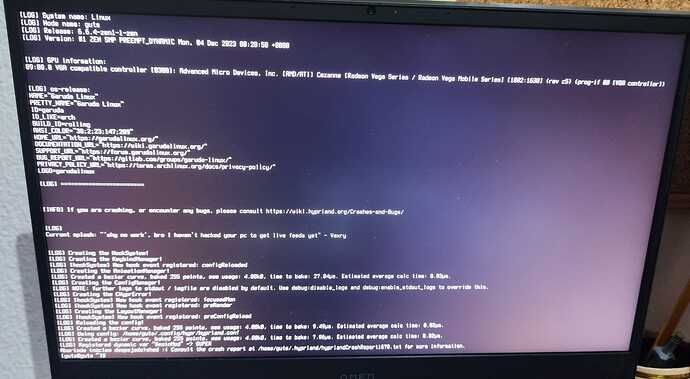

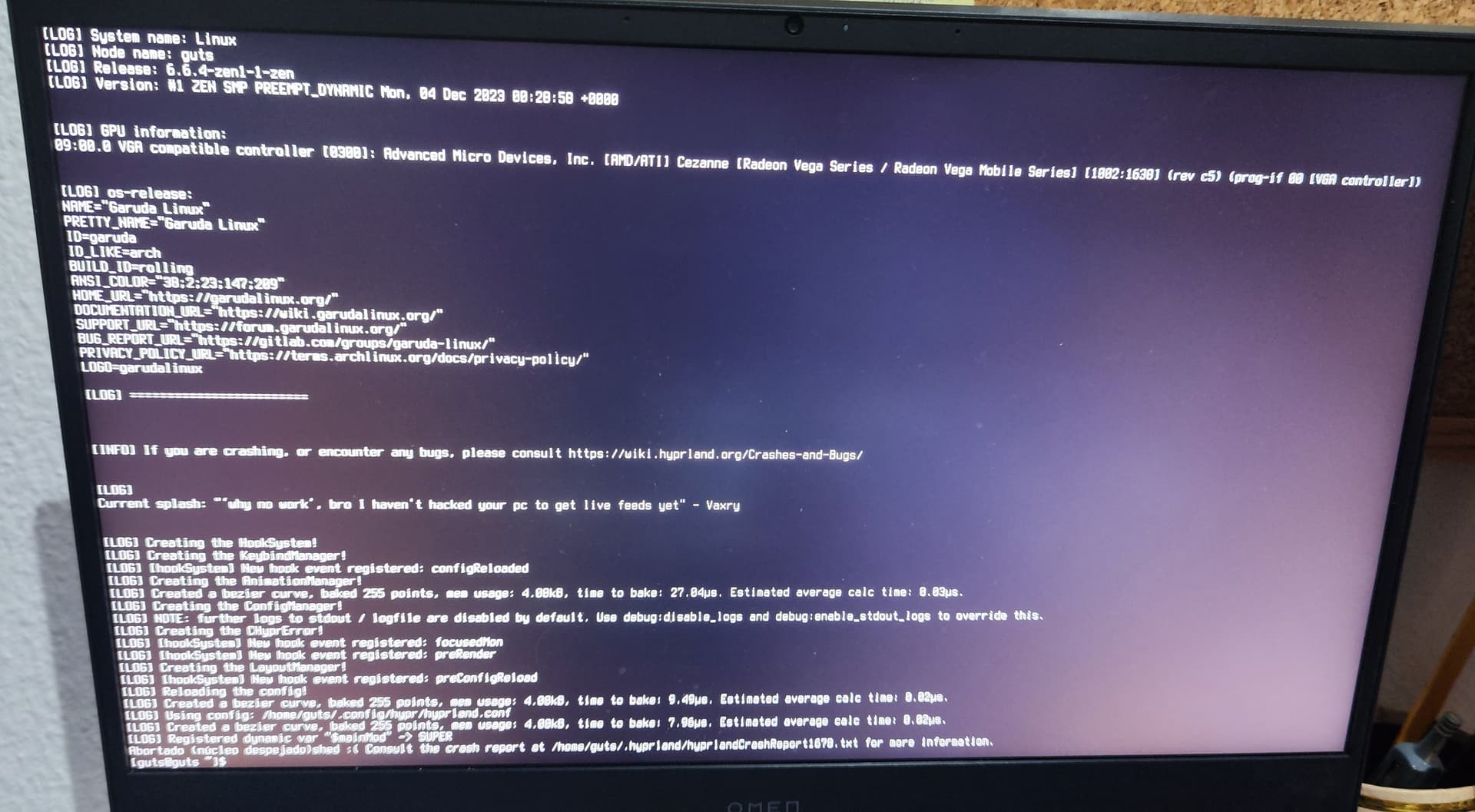

The output of tty3:

I checked if the hyperland was updated and it is…
Also checked the conf file for plugins it doesnt seem to have any
